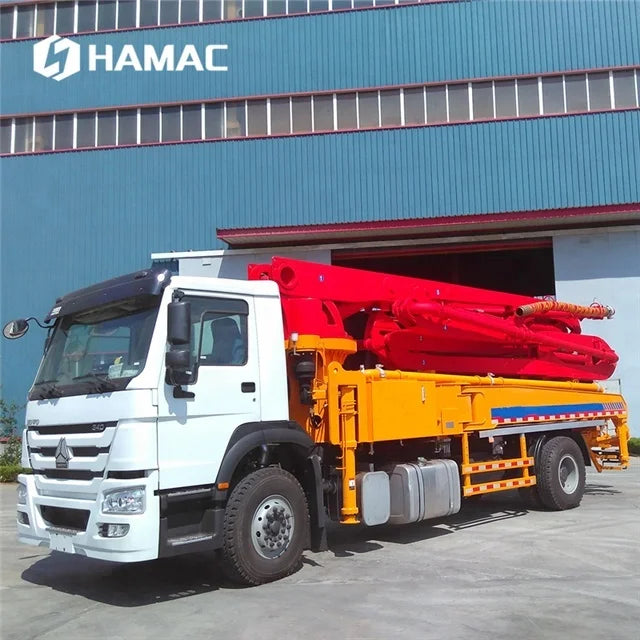

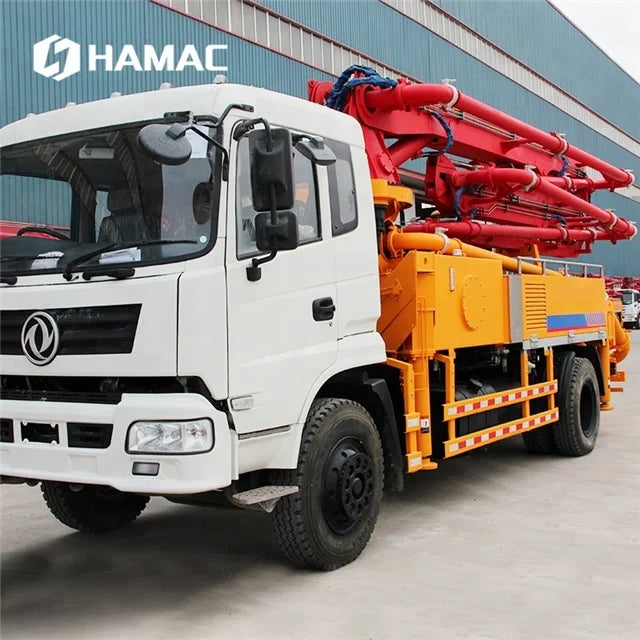

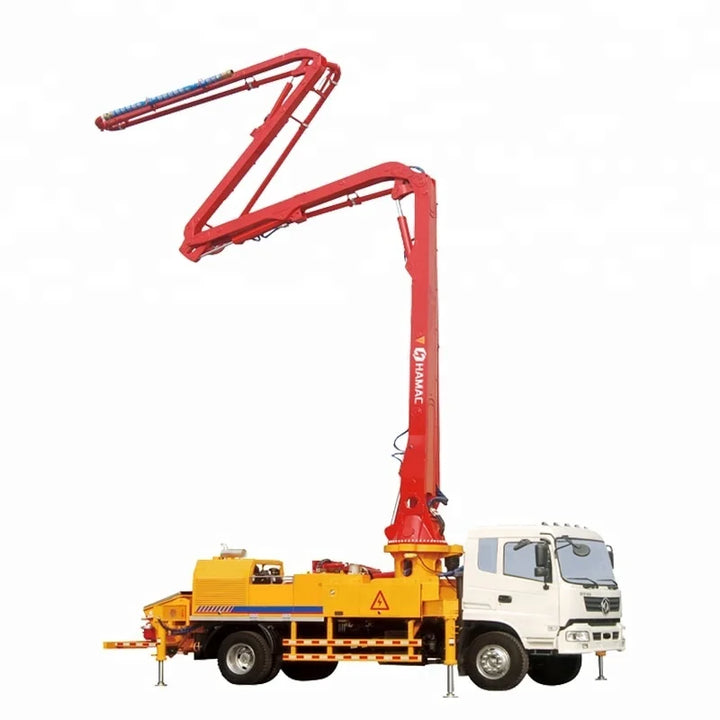

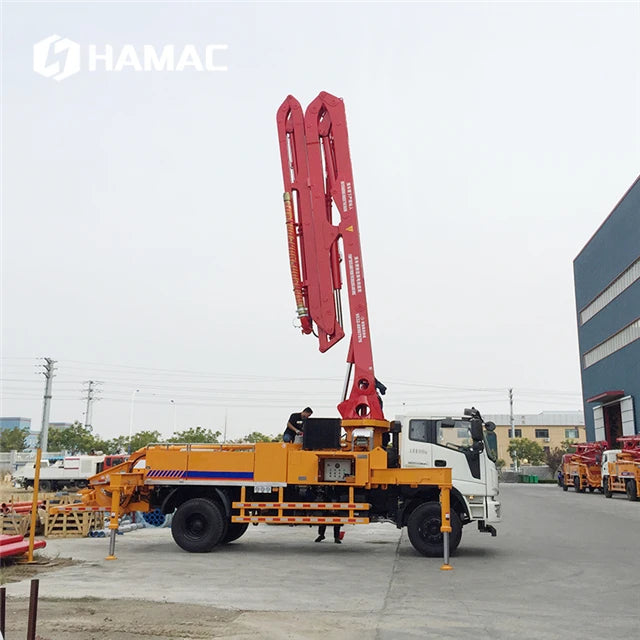

29 meters putzmeister concrete pump truck with placing boom
INTRODUCTION
The HMC series 29 meters putzmeister concrete pump truck with placing boom is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure. It is a high efficient concrete conveying equipment integrating driving, pumping, placing. It is equipped with famous brand parts to make the work performance well and stable. It is the best choice for the small and medium projects.

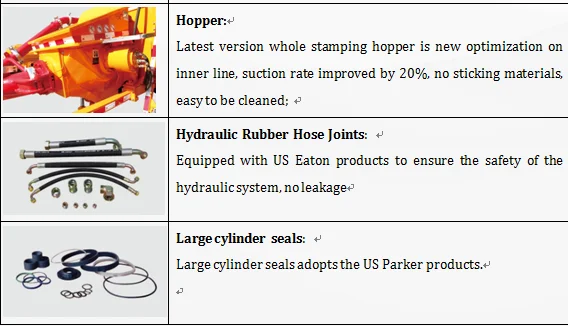

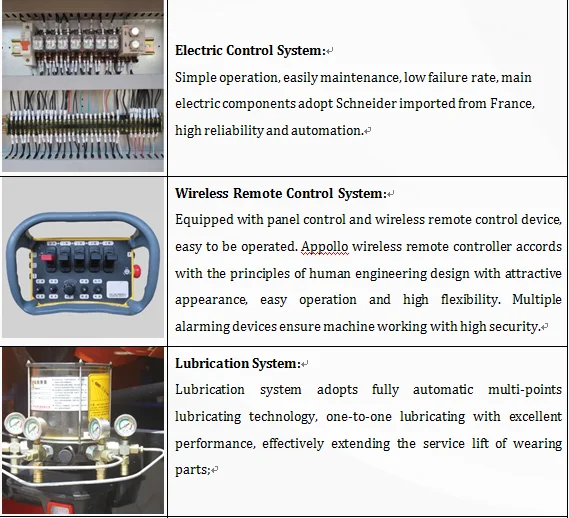

PERFORMANCE

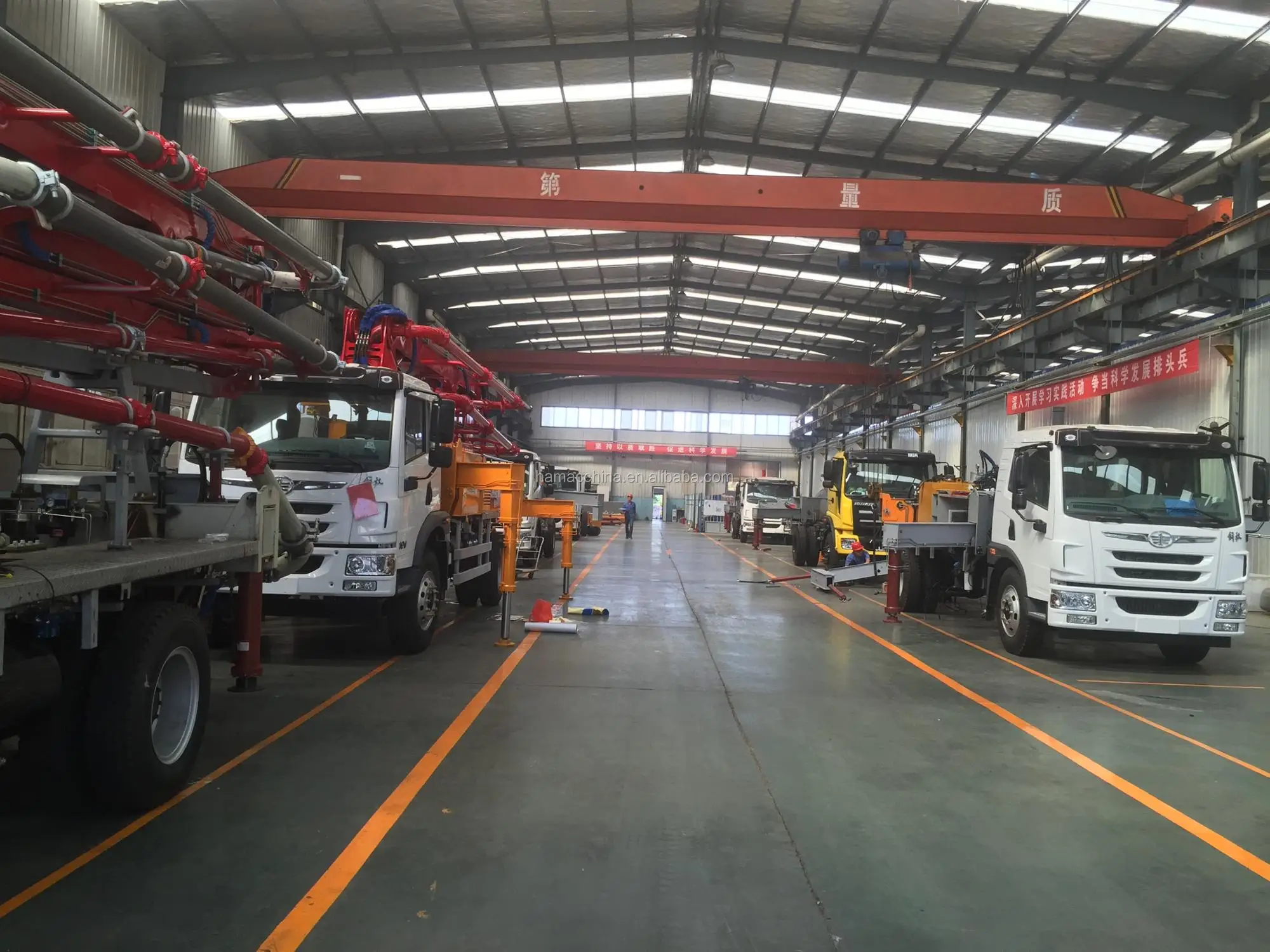

MANUFACTURING PROCESS
SPECIFICATION
| 29m Truck-mounted Concrete Boom Pump |
||
| I. Truck Chassis |
||
| 1 |
Chassis Brand |
FOTON (optional) |
| 2 |
Chassis engine power |
147kw |
| 3 |
Driving mode |
Left hand drive |
| 4 |
Emission standard |
National V |
| 5 |
Wheel base |
4800 |
| 6 |
Number of Alex |
2 |

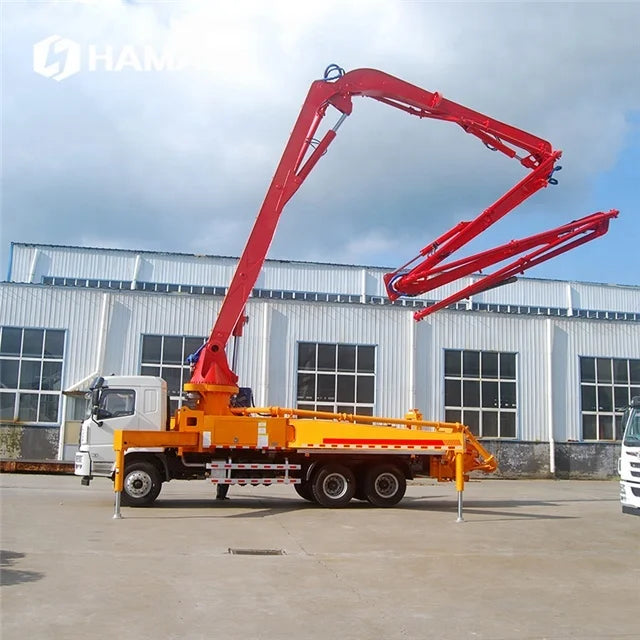

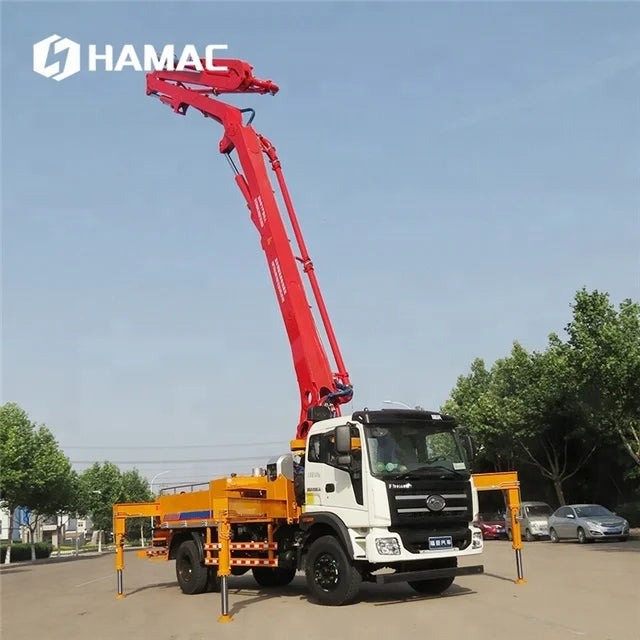

| II. Boom system |
||
| 1 |
Maximum vertical height of boom (M) |
28.2 |
| 2 |
Horizontal distribution radius of boom (M) |
24.6 |
| 3 |
Depth of distribution (M) |
16.9 |
| 4 |
Opening height of boom (M) |
6.5 |
| 5 |
Arm length of the first section (MM) |
7080 |
| 6 |
Arm length of the second section (MM) |
5780 |
| 7 |
Arm length of the third section (MM) |
5900 |
| 8 |
Arm length of the fourth section (MM) |
5787 |
| 9 |
Rotating angle of each arm |
90°/180°/230°/245° |
| 10 |
Control mode of boom |
Electric proportion |
| 11 |
Folding type of boom |
M type |
| 12 |
Rotating angle of turret |
360° |
| 13 |
Span distance of front landing leg (MM) |
5842 |
| 14 |
Span distance of rear landing leg (MM) |
4050 |
| 15 |
Longitudinal distance between front and rear landing leg (MM) |
6177 |
| 16 |
Opening mode of landing leg |
|
| 17 |
Length of end hose (MM) |
3000 |
| 18 |
Diameter of concrete delivery pipe (MM) |
125 |
| III. Electric Control System |
||
| 1 |
Working voltage: |
24 |
| IV. Hydraulic transmission system |
||
| 1 |
Type of hydraulic system |
Open type |
| 2 |
System working pressure (Mpa) |
31.5 |
| 3 |
Displacement of main hydraulic oil pump (ml/r) |
140/180/190 |
| 4 |
Hydraulic fuel tank capacity (l) |
420 |
| 5 |
Cooling mode of hydraulic oil |
Forced-air Cooling |
| 6 |
High-low pressure changeover valve |
None |
| V. Dimension and weight |
||
| 1 |
Total length (MM) |
|
| 2 |
Total width (MM) |
2350 |
| 3 |
Total height (MM) |
3563 |
| 4 |
Total weight (T) |
18.5 |
| VI Pumping system |
||
| 1 |
S valve |
|
| 2 |
Maximum concrete outlet pressure (Mpa) |
10.5 |
| 3 |
Reversing times of distribution valve |
24 |
| 4 |
Inner diameter/stroke of delivery cylinder |
200/1450 |
| 5 |
Maximum feeding height (MM) |
1450 |
| 6 |
Hopper capacity (M3 ) |
0.65 |
| 7 |
Slump of pumped concrete |
160-220 |
| 8 |
Dimension of allowable maximum aggregate (MM) |
40 |
| 9 |
Lubricating method |
Centralized lubrication |
| Configuration 1. Main oil pump: Rexroth or Primacy 2..Seal parts: American Parker 3. Main electric parts: original Omron or LS electrical devices 4.Transfer case: JIE or STIEBEL (GERMAN) 5. Pipe joints: American Eaton 6. Multi-channel valve (arm): Hawe(GERMAN) or Norma(GERMAN) 7.Balance valve for arm: HBS (Italy) 8. Multi-channel valve (leg):WALVOIL from Italy or YOULI from Taiwan 9. Wireless Remote control device: Jijing-TECHWELL(supplier of SANY, XCMG etc.) |
||
GOODS DELIVERY
ABOUT HAMAC
HAMAC follows its strict Quality Control system obediently which guarantees the premium quality of our products. Oriented by the requirements from our clients, we are able to customize the products to fit the demand. With over decade experience on international business trade on machinery of our staff, we are able to provide the solutions to all your problems regarding to the international trade.

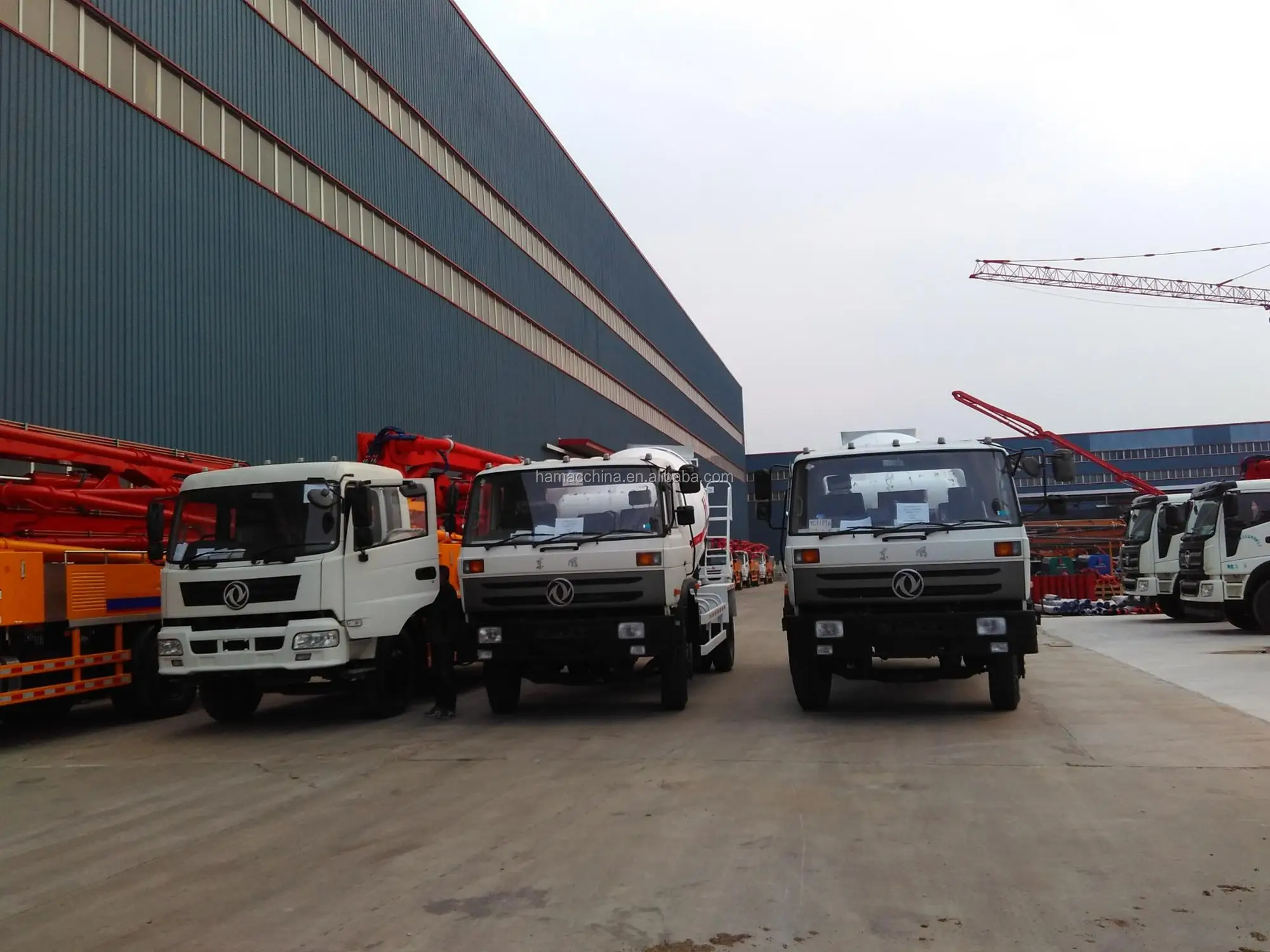

PRODUCTION BASES
We have different products bases in different cities in China. Our main products are concrete batching plant, different concrete mixers, concrete pumps, concrete placing boom, truck mounted concrete boom pump etc. In addition to this, we also provide clients with complete solutions which cooperates with our sister companies.
CONTACT US
You can contact our head-office directly, also you can contact the oversea-offices which is near you. Of course, free live-chat is available and you can get help immediately.
Q : Are you a factory or trading company?
A: We are a company which include trade and manufacture. We have our own factory which has been manufacturing concrete machineries along with spare parts for 20 years offline. These years, we begin to promote overseas market.
Q: How about the quality control of your productions?
A: All of our products passed ISO9001:2000, some of them got CE Certificate. We have a very strict quality control system, all of our suppliers are selected strictly and carefully. We will take strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: HAMAC only present true information to all of our clients, HAMAC only provide our clients with high quality machines. Most of our clients are regular clients, it is a proof of our quality. And the new buyers would like to repeat orders from us since we are not only sell goods but also services.
Q: How do you think the relationship between quality and price? Relationship between buyer and seller?
A: If you care about the quality, please respect its price. If you only care about the price, do not expect a good quality. Market price is well-known, the seller will not quote a higher and unreasonable price to push away the buyer.
One deal, to make one new friend. Reputation is the most important thing. HAMAC will not destroy the reputation because of an order. We are pursuing long-time cooperation.
Q: Can we go to your factory have a look?
A: You are warmly welcomed to visit us.
