INTRODUCTION

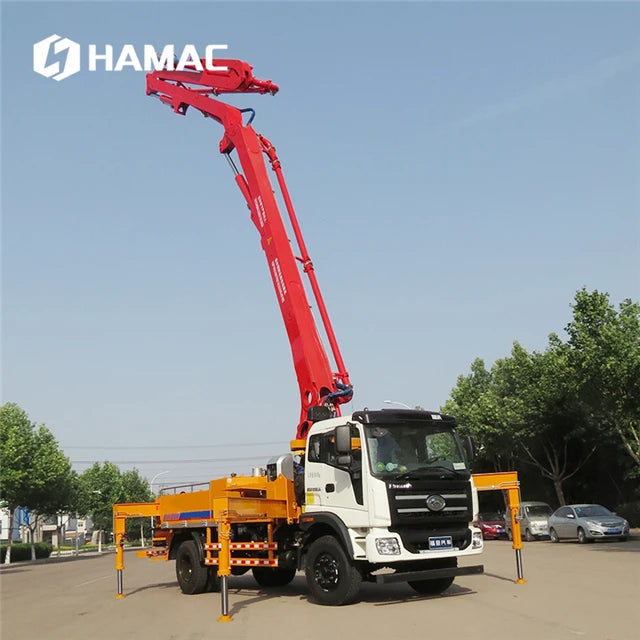

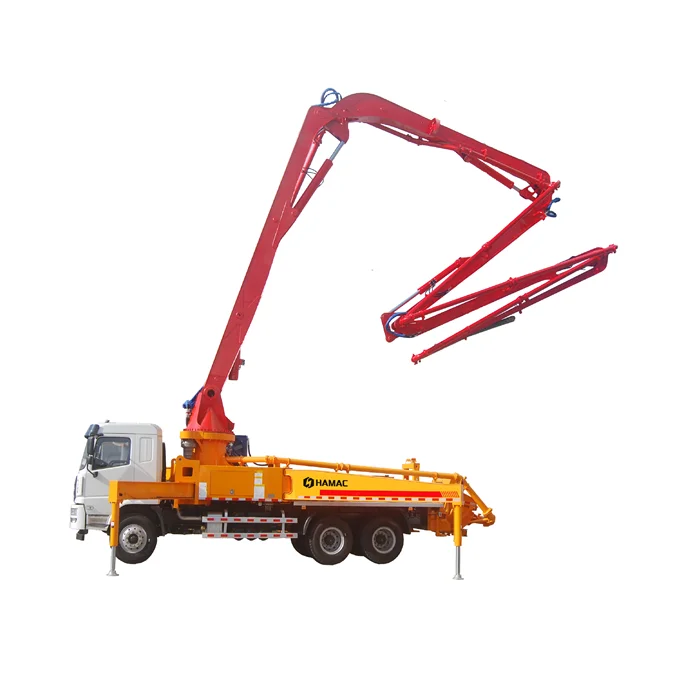

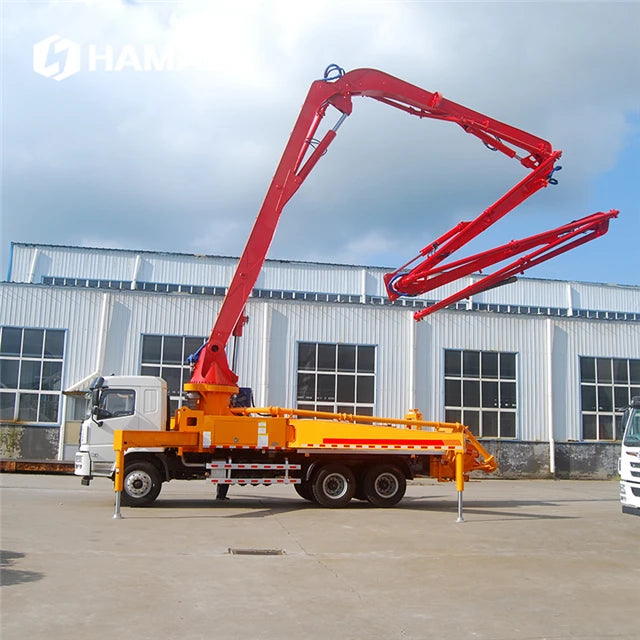

27 m truck mounted concrete boom pump
The HMC series Truck-mounted Concrete Boom Pump is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is a high efficient concrete conveying equipment integrating driving, pumping, placing.

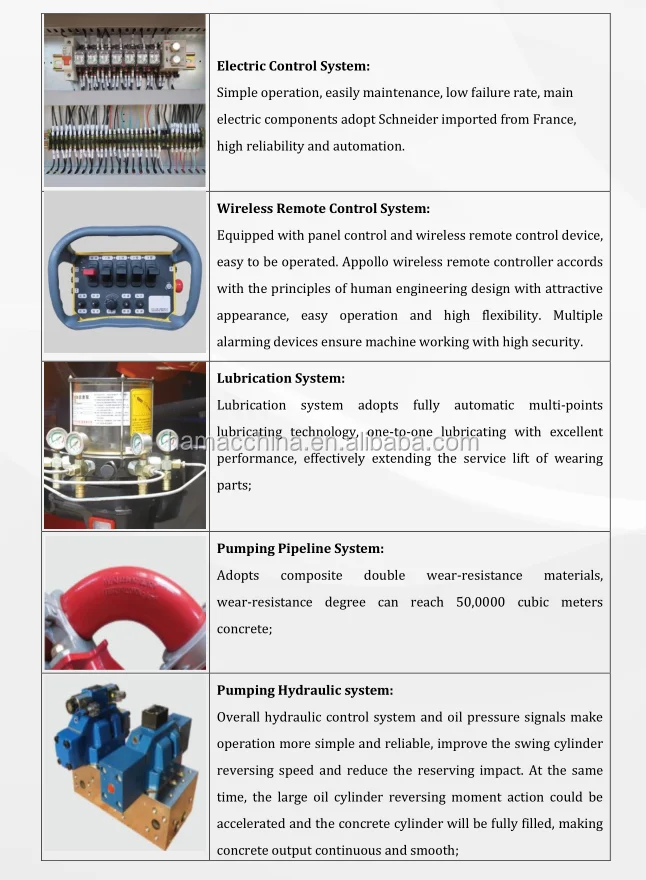

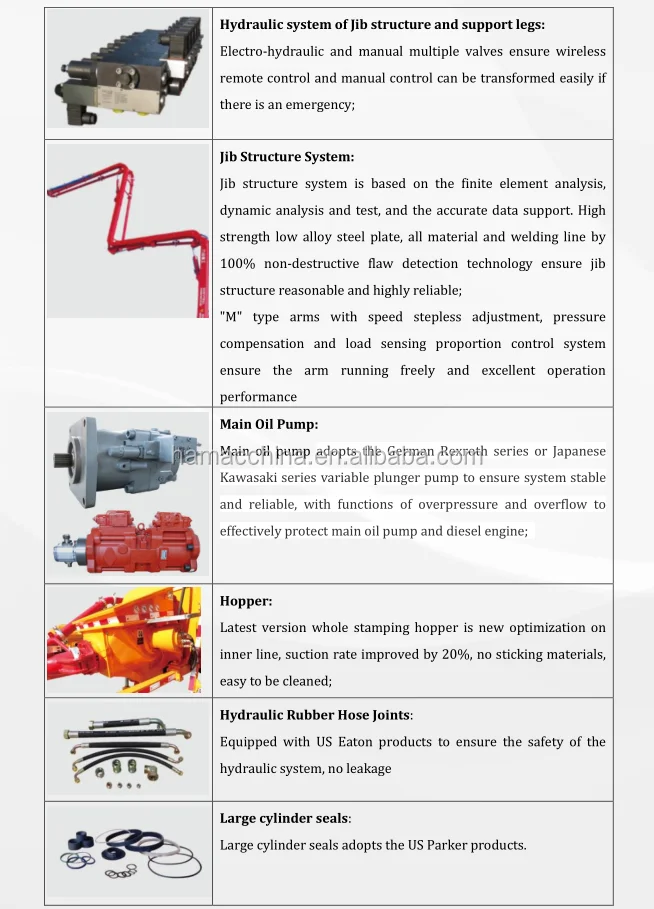

PERFORMANCE

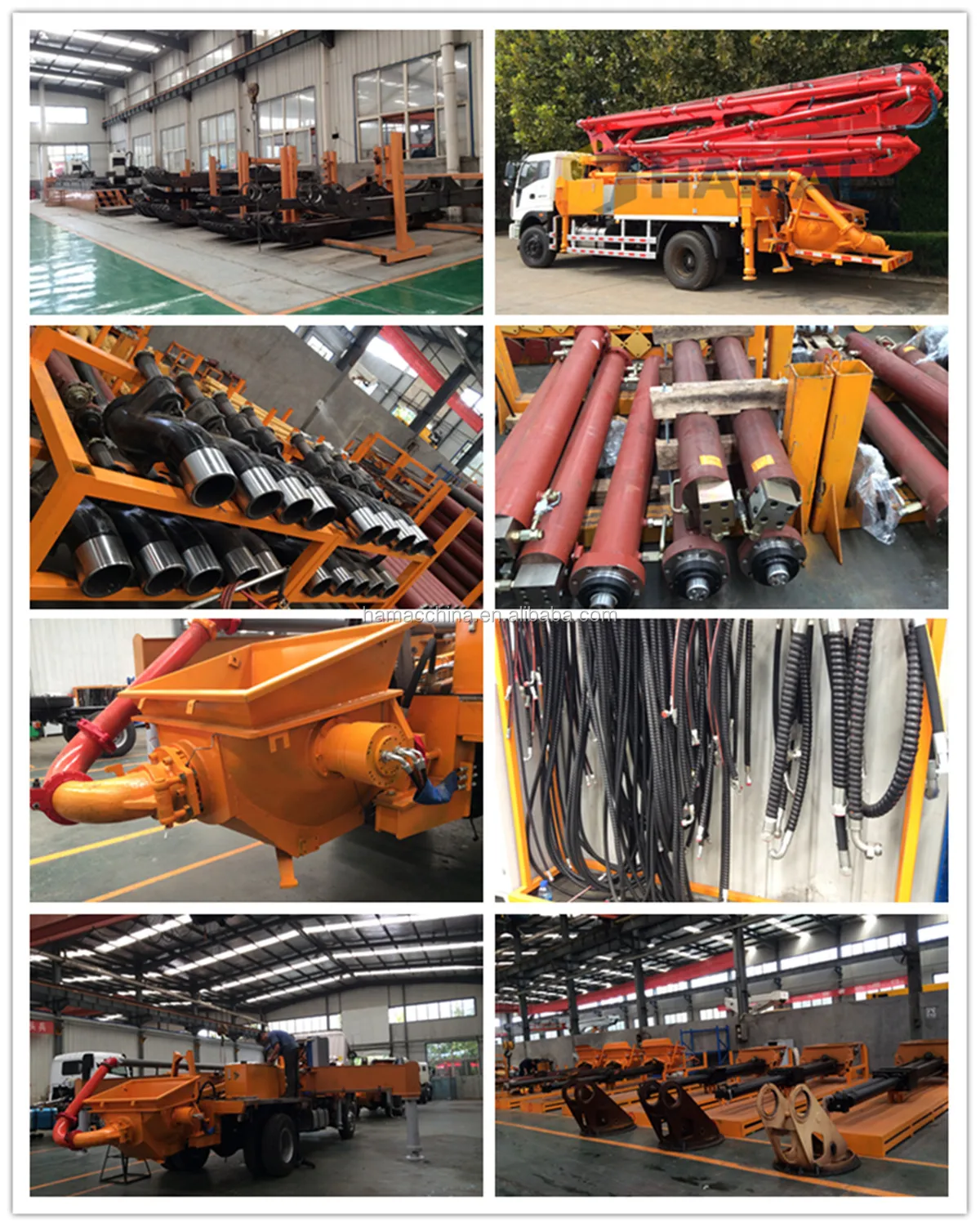

MANUFACTURING PROCESS
SPECIFICATION
HMC5027 Pump truck |
||
I. Chassis |
|
|
1 |
Chassis engine model |
Foton/other options |
2 |
Chassis engine power |
147kW |
II. Boom system |
|
|
1 |
Maximum vertical height of boom (M) |
26.2 |
2 |
Horizontal distribution radius of boom (M) |
22.6 |
3 |
Depth of distribution (M) |
15 |
4 |
Opening height of boom (M) |
5.4 |
5 |
Arm length of the first section (MM) |
6960 |
6 |
Arm length of the second section (MM) |
5080 |
7 |
Arm length of the third section (MM) |
5700 |
8 |
Arm length of the fourth section (MM) |
5402 |
9 |
Rotating angle of each arm |
90/180/230/245 |
10 |
Control mode of boom |
Electric proportion |
III. Electric Control System |
|
|
1 |
Working voltage: |
24 |
IV. Hydraulic transmission system |
|
|
1 |
Type of hydraulic system |
Open type |
2 |
System working pressure (Mpa) |
31.5 |
3 |
Displacement of main hydraulic oil pump (ml/r) |
140/180/190 |
4 |
Hydraulic fuel tank capacity (l) |
420 |
5 |
Cooling mode of hydraulic oil |
Forced-air Cooling |
VI. Dimension and weight |
|
|
1 |
Total length (MM) |
9910 |
2 |
Total width (MM) |
2300 |
3 |
Total height (MM) |
3563 |
4 |
Total weight (T) |
16 |
1 |
Form of concrete distribution valve |
S valve |
2 |
Maximum concrete outlet pressure (Mpa) |
10.5 |
3 |
Reversing times of distribution valve |
24 |
4 |
Inner diameter/stroke of delivery cylinder |
200/1450 |
5 |
Maximum feeding height (MM) |
1450 |
6 |
Hopper capacity (M3 ) |
0.65 |
7 |
Slump of pumped concrete |
160-220 |
8 |
Dimension of allowable maximum aggregate (MM) |
40 |
9 |
Lubricating method |
Centralized lubrication |

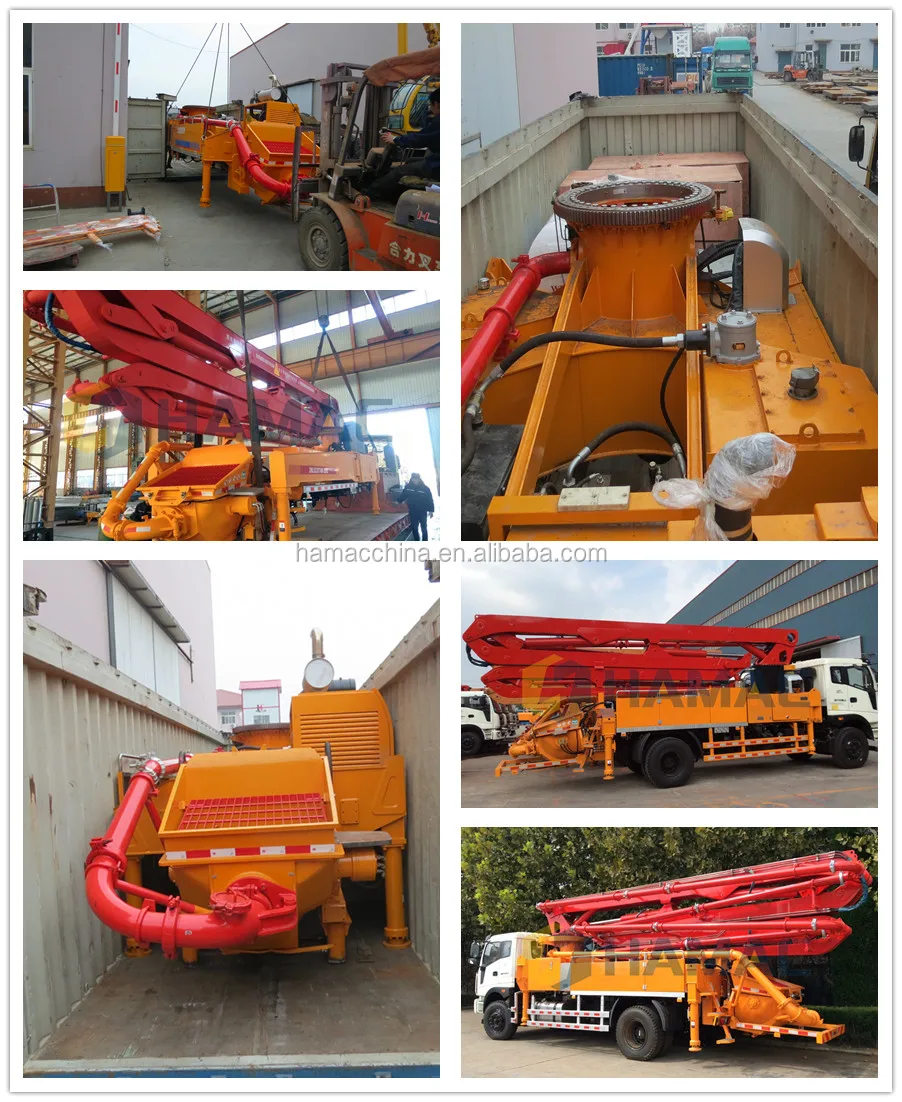

GOODS DELIVERY
