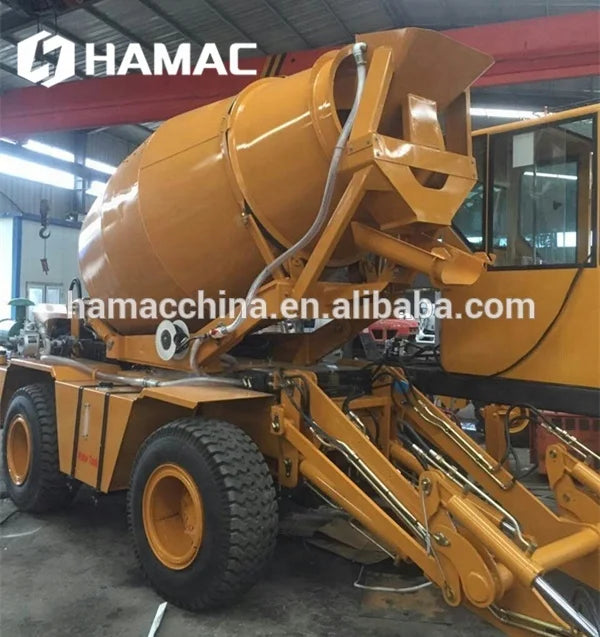

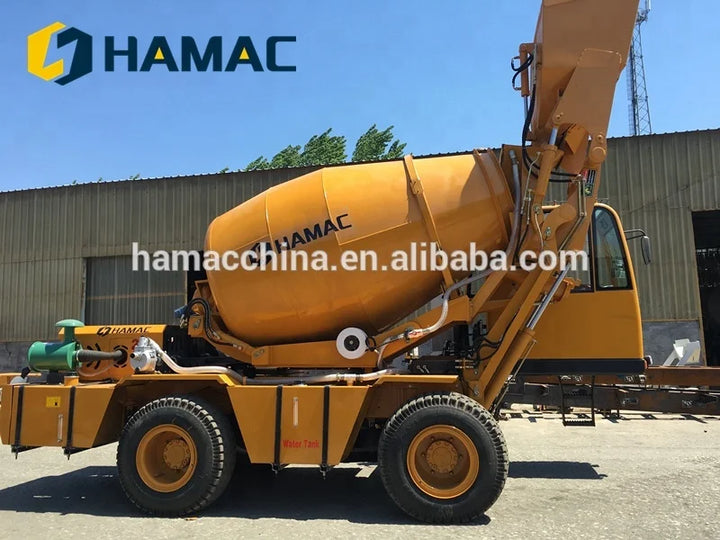

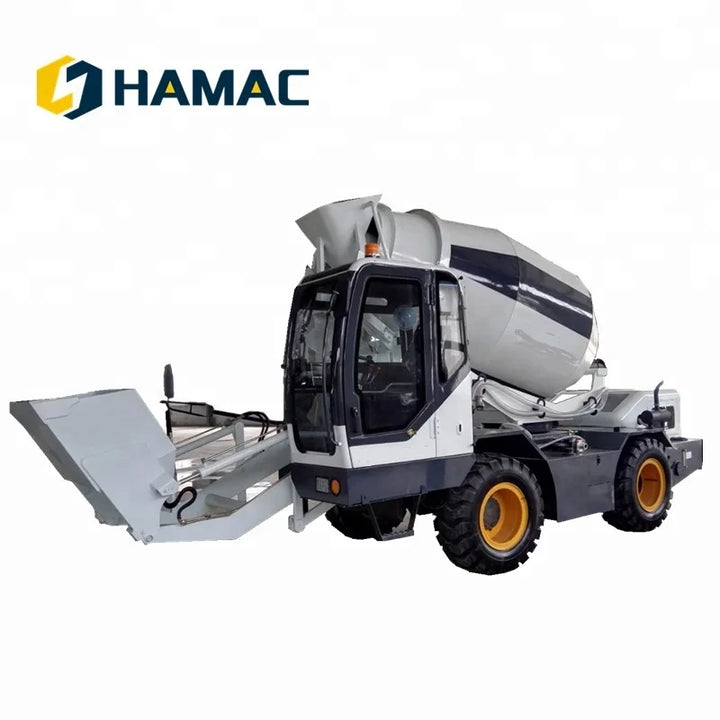

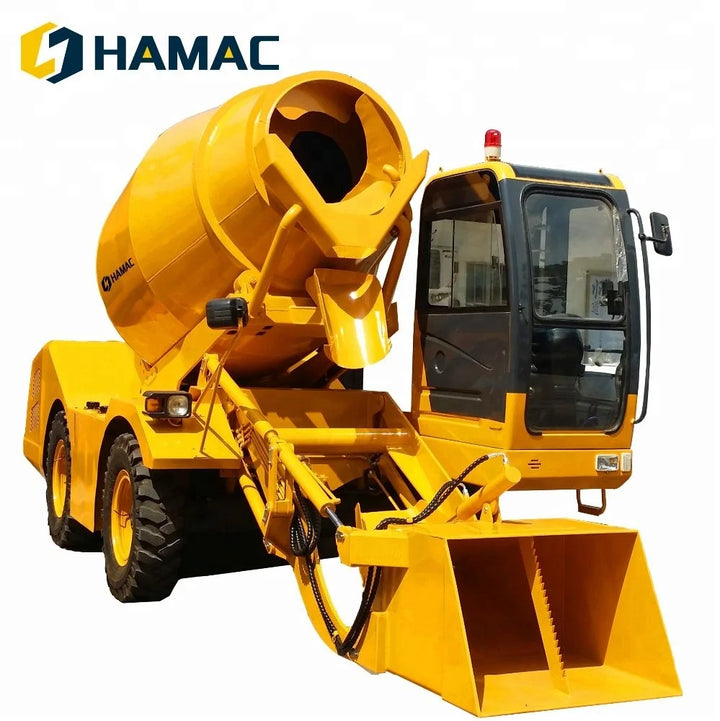

ajax fiori self loading mobile concrete mixer 3.5 cbm
INTRODUCTION
ajax fiori self loading mobile concrete mixer 3.5 cbm is equipment combined with concrete mixer truck and concrete mixing station. Raw material loading, weighting, mixing and discharging all rolled into one machine. It could be used not only to transport the concrete but also to produce the concrete at site. It is suitable for the working area where is far from the concrete batching plant and some short-time finished projects.

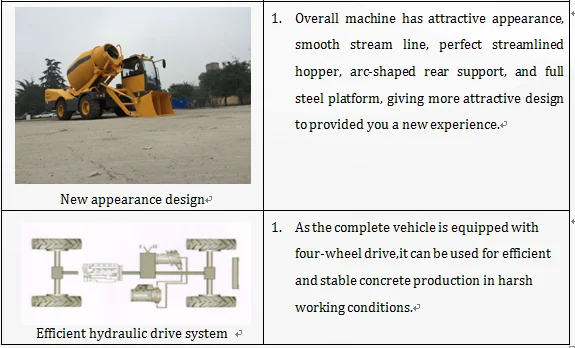

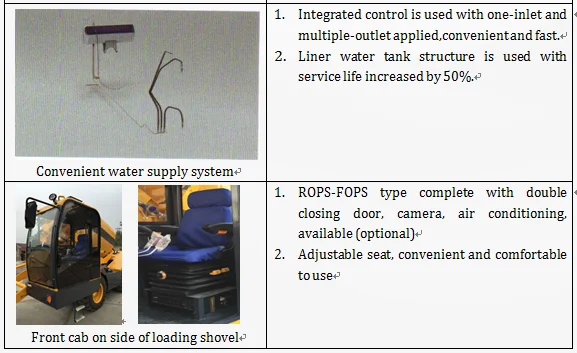

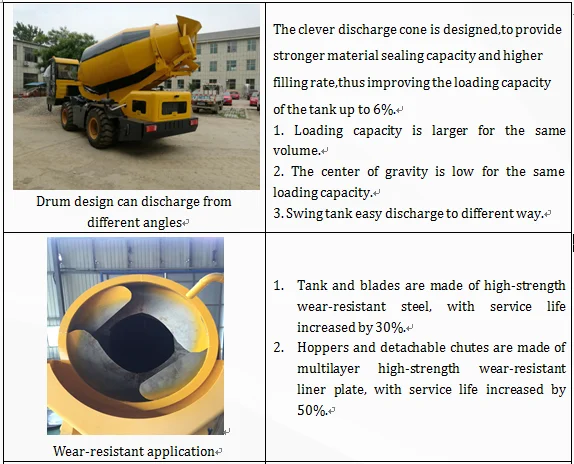

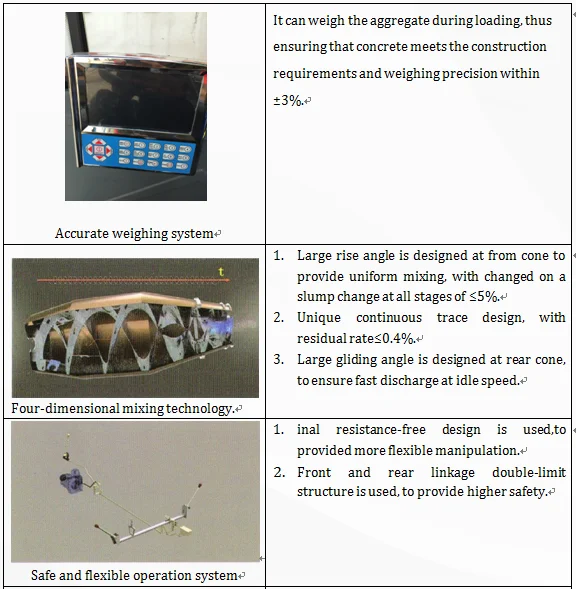

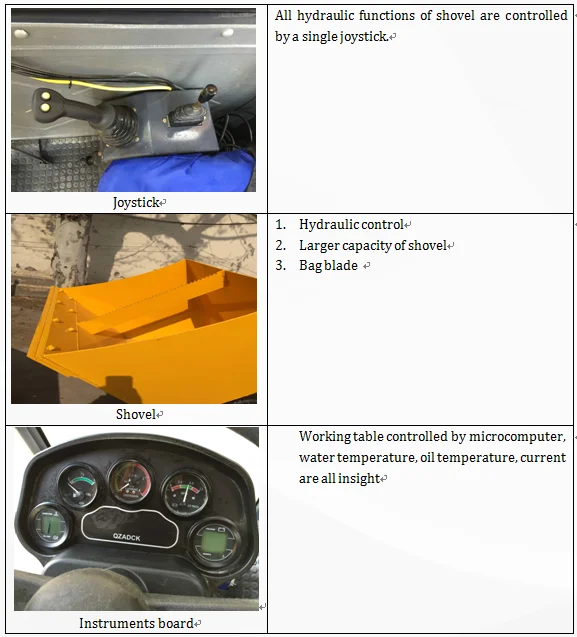

PERFORMANCE

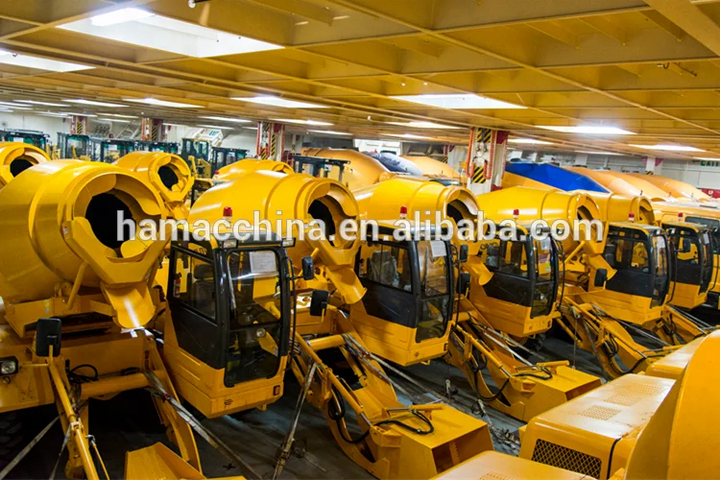

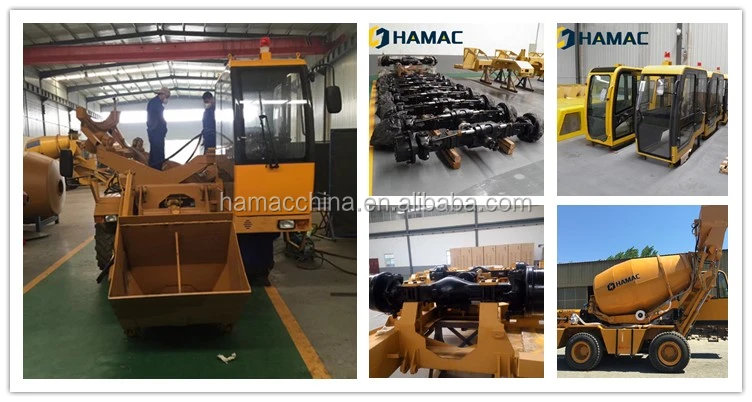

MANUFACTURING PROCESS
SPECIFICATION
| Name |
Item |
Specification |
|||
| General data |
Net |
7200 KG |
|||
| Gross |
12675KG |
||||
| Transmission |
Full Hydraulic |
||||
| 4 wheel drive |
|||||
| Brake |
Air Brake |
||||
| Chassis |
Off-road |
||||
| Tread |
1880 |
||||
| Wheelbase |
2250mm |
||||
| Loader bucket |
capacity |
0.6m3 |
|||
| Control |
Hydraulic |
||||
| Tilt angle |
30% |
|
|||
| Speed |
High |
0-25KM/H |
|||
| Low |
0-9KM/H |
||||
| Mini turning radius |
6.5M/R |
||||
| Tyre model |
16/70-20 |
||||
| Engine |
Type |
Yuchai |
YCD4J22G |
||
| Rated Power/RPM |
85KW/2200RPM 125HP /2200RPM |
||||
| Max.Torque/RPM |
460N.M/1400RPM |
||||
| Cylinder |
4 |
||||
| Starter |
Electric |
||||
| Cooling type |
water cooling |
||||
| Maxing Drum |
Drum capacity |
3.5M3 |
|||
| Bank Angle |
16 ° |
||||
| Rotation Angle |
19-21R/min |
||||
| Chute |
Swing Angle |
≥60° |
|||
| Angle control |
Hydraulic |
||||
| Size |
Long:176cm |
||||
| Short:40cm |
|||||
| Loader |
Weighing model |
computer control |
|||
| Concrete Standard |
C15.C20.C25 C30 |
||||
| Accuracy |
Cement |
≤±2%/time |
|||
| Relative Error |
≤±3%/time |
||||
| water |
≤±1%/time |
||||
| Additive |
≤±1%/time |
||||
| Admixture |
≤±2%/time |
||||
| Loader control |
Hydraulic 4 way stick |
||||
| Over size |
7500*2700*3380mm |
||||

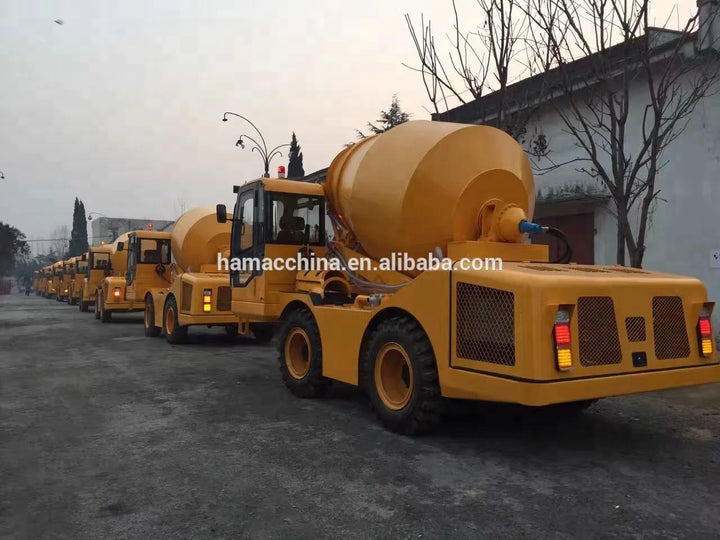

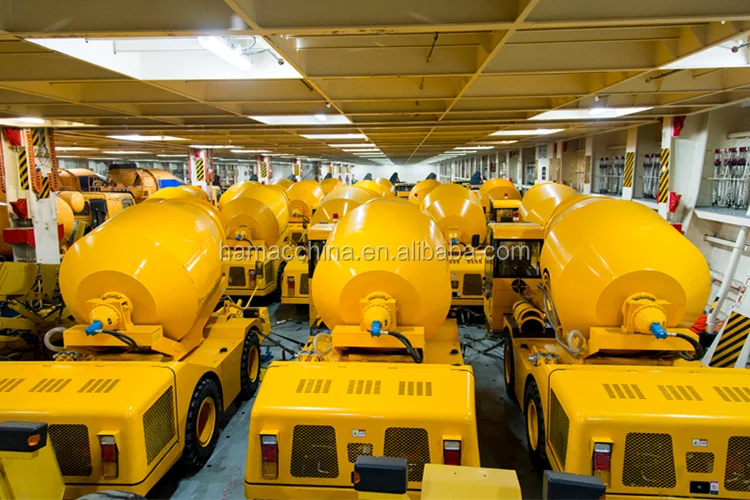

GOODS DELIVERY

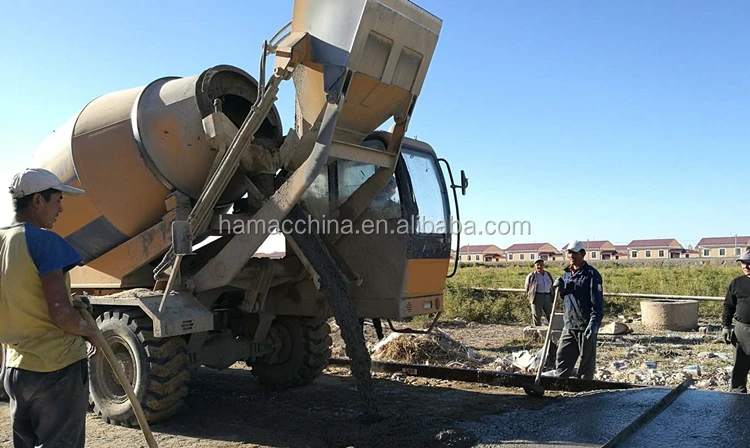

SUCCESSFUL CASES
