Description
Product Feature:
1. Stir evenly and ensure good quality;
2. Low energy consumption and low noise;
3. Short mixing time, fast unloading speed, and high efficiency;
4. High degree of automation, equipped with computer real-time monitoring; Easy to operate;
5. The lining plate and blades have a long service life and are easy to maintain and repair;
Product Description

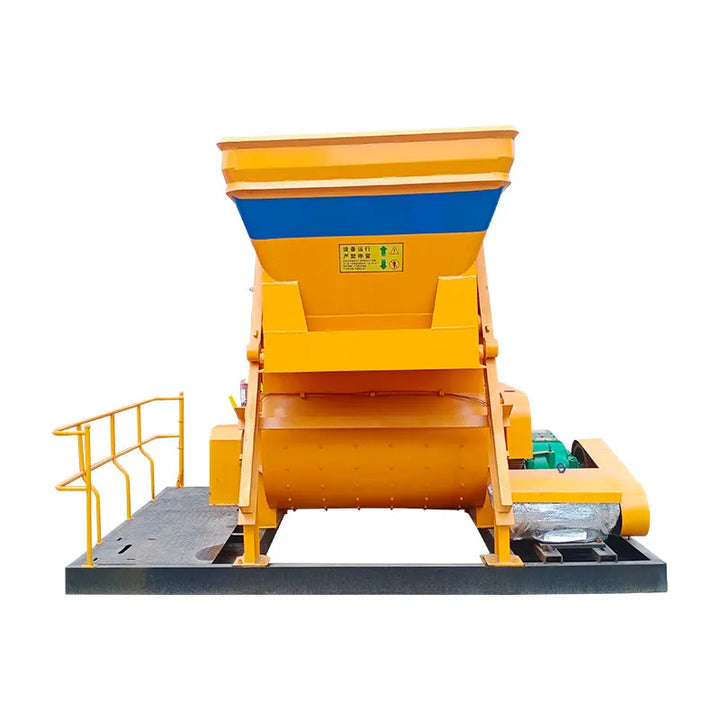

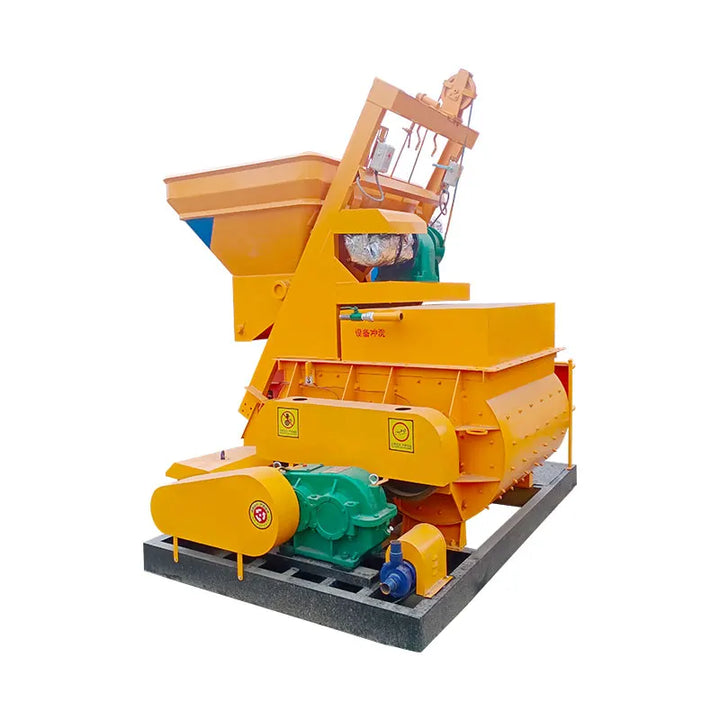

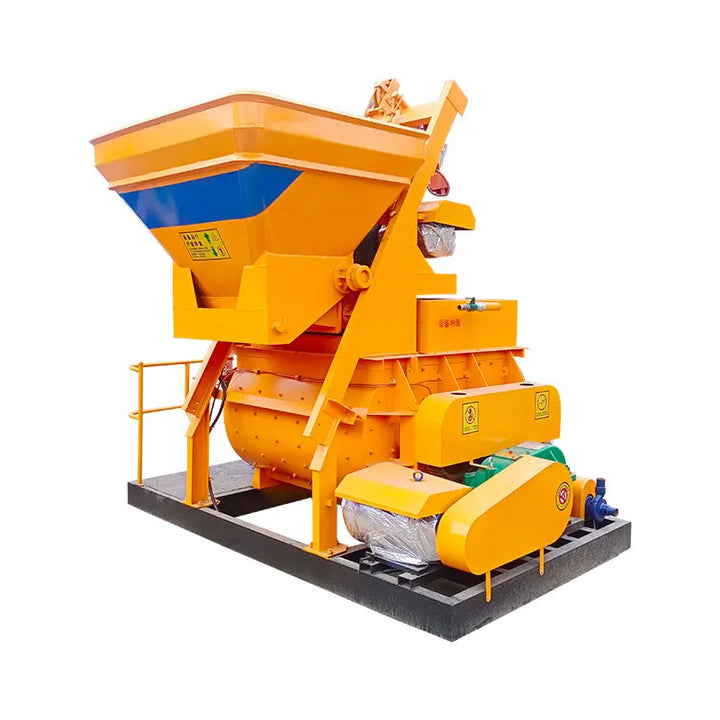

Twin-shaft concrete mixer is an advanced and ideal concrete mixer model. It has the advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, easy operation, fast unloading speed, long service life of lining and blades, and convenient maintenance. The machine adopts automatic unloading, convenient water adding control of the whole machine, strong power, low power consumption, and strong power. In addition, it is equipped with a built-in vortex agitator to prevent the material in the silo from agglomerating.
Product Paramenters
|
Model
|
JS500
|
JS750
|
JS1000
|
|||
|
Discharge Capacity
|
500L
|
750L
|
1000L
|
|||
|
Feed Capacity
|
800L
|
1200L
|
1600L
|
|||
|
Productivity
|
20~25m³/h
|
30~35m³/h
|
40-50m³/h
|
|||
|
Maximum Aggregate Size
|
60mm
|
80mm
|
80mm
|
|||
|
Mixing Motor Power
|
18.5kW
|
30kW
|
2*18.5kW
|
|||
|
Mixing Speed
|
36r/min
|
39.5r/min
|
25r/min
|
|||
|
Lifting Motor Power
|
5.5kW
|
7.5kW
|
11kW
|
|||
|
Working cycle time
|
60s
|
60s
|
60s
|
|||
|
Overall Dimensions(mm)
|
2960×2600×4400
|
3100×3500×5620
|
8935×3830×10670
|
|||
|
Overall Weight(kg)
|
3970
|
6100
|
9200
|
|||
|
Note: The output will vary depending on factors such as different materials and feed particle size
|
||||||
* Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.
Details Images
1. Stir evenly and ensure good quality;
2. Low energy consumption and low noise;
3. Short mixing time, fast unloading speed, and high efficiency;
4. High degree of automation, equipped with computer real-time monitoring; Easy to operate;
5. The lining plate and blades have a long service life and are easy to maintain and repair;
Application Areas&Materials
Packing & Delivery
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. We provide concrete machinery, mill machine and stone crushing machinery, including: concrete batching plant, double shaft
concrete mixer, concrete mixer with pump, concrete mixer truck, vertical mill, Raymond mill, ball mill, jaw crusher, impact crusher, cone crusher, VSI sand maker, vibrating screen, etc...
Our equipment is widely used in building, mining, construction industry. We are the largest EPC new sand gravel aggregate production line supplier in China.
Customer Site
FAQ
1. What is your payment method? The payment methods can be discussed with our sales manager up to you. 2. How is the product packaged and shipped? The package is suitable for oversea exporting. We can also choose a special package depending on your needs. 3. How long is the production time? In stock, can be shipped anytime. And it can also be customized according to your requirements 4. How long is the warranty? Does your company supply the spare parts? 1-3 year. We supply spare parts for you with lowest price. 5. If I need a complete project, can you help us to build it? Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas. 6. How about the service? 24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
Hydraulic Pressure Discharging Open JS500 Twin Shaft Concrete Mixer for Batching Plants
$2,500.00
