Description









hot sale 1m3 to 5m3 twin shaft horizontal concrete mixer js2000 for concrete batching plant
Product Introduction

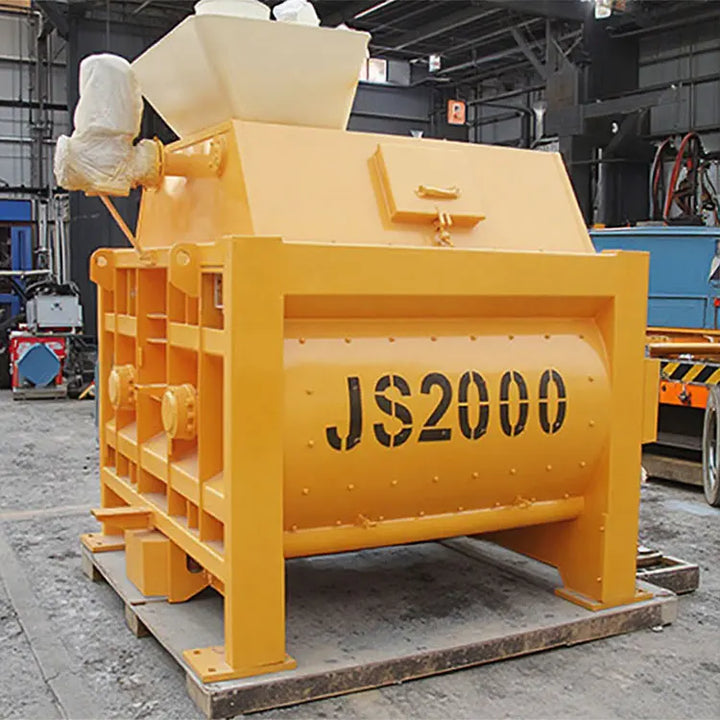

JS Series Standard Twin-shaft Concrete Mixer

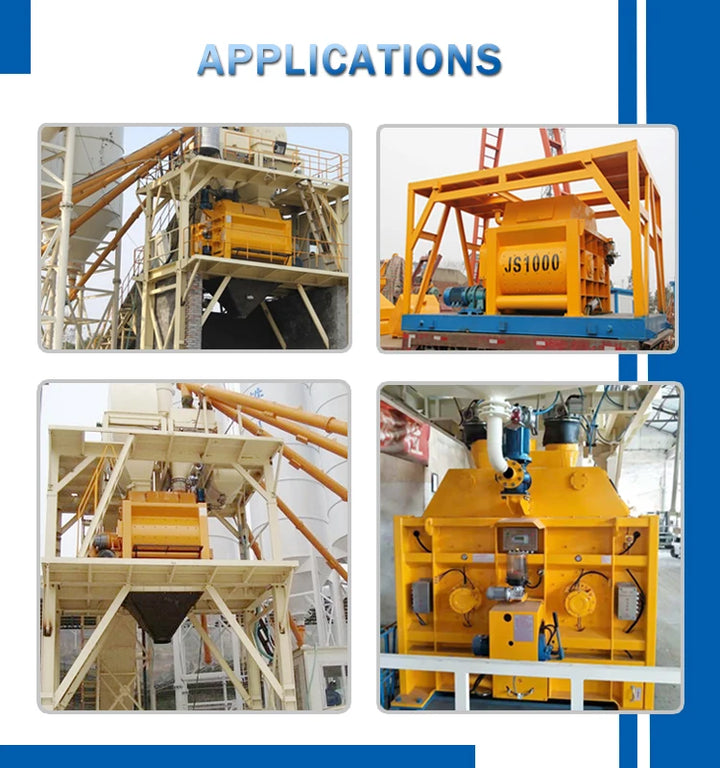

inspired by advanced technologies from home and abroad.Ever since it was sold into the market,its stable performance and excellent quality have quickly won the trust of majority of users.Now it has become our star products.It is mainly used in the mixing plants of high speed railways,expressways,airports, hydro-power stations,commercial concrete and so on.
Advantages of JS series Twin Shafts Mixer
1. High mixing efficiency, good uniformity;
2. The use of new patented sealing technology, sealing effect, long service life;
3. The use of advanced imported reducer or high reliability reducer (optional);
4. The top automatic lubrication pump, centralized lubrication, to ensure that the shaft seal more durable;
5. Power "security lock" design, from the respect for life;
6. Exquisite manufacturing process.
Advantages of JS series Twin Shafts Mixer
1. High mixing efficiency, good uniformity;
2. The use of new patented sealing technology, sealing effect, long service life;
3. The use of advanced imported reducer or high reliability reducer (optional);
4. The top automatic lubrication pump, centralized lubrication, to ensure that the shaft seal more durable;
5. Power "security lock" design, from the respect for life;
6. Exquisite manufacturing process.
Technical Parameters
Technical Parameter
|
||||||||||||
Model
|
JS 750
|
JS 1250
|
JS 1500
|
JS 2000
|
JS 3000
|
JS 4000
|
||||||
Charging capacity(L)
|
1200
|
2000
|
2400
|
3200
|
4800
|
6400
|
||||||
Discharging capacity(L)
|
750
|
1250
|
1500
|
2000
|
3000
|
4000
|
||||||
Production capacity(m3/h)
|
42
|
75
|
90
|
120
|
180
|
240
|
||||||
Mixing axle rotation speed(r/min)
|
29.9
|
29.67
|
26.75
|
23.5
|
23.4
|
22.85
|
||||||
Mixer motor power(kw)
|
2*15
|
2*22
|
2*30
|
2*37
|
2*55
|
2*75
|
||||||
Librication oil pump
motor power(kw)
|
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
||||||
Hydraulic system
motor power(kw)
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
||||||
Electromagnetism valve
power supply(V)
|
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
||||||
Mixing time(s)
|
<=40
|
<=40
|
<=40
|
<=40
|
<=45
|
<=45
|
||||||
No. of mixing arm
|
12
|
12
|
16
|
16
|
18
|
22
|
||||||
Max diameter of
aggregate(Detritus/
Pebble)
|
60/80
|
60/80
|
60/80
|
80/120
|
100/150
|
100/150
|
||||||
External dimensions(LxWxH)
|
2900x
2650x
2100
|
3000x
2750x
2100
|
2900x
3000x
2150
|
3450x
3000x
2150
|
3900x
3300x
2230
|
4500x
3310x
2230
|
||||||
Transportation dimensions(LxWxH)
|
2900x
2100x
2100
|
3000x
2100x
2100
|
2900x
2320x
2150
|
3450x
2320x
2250
|
3900x
2600x
2230
|
4500x
2600x
2230
|
||||||
Entire machine weight(kg)
|
5000
|
5300
|
6500
|
7500
|
9300
|
11800
|

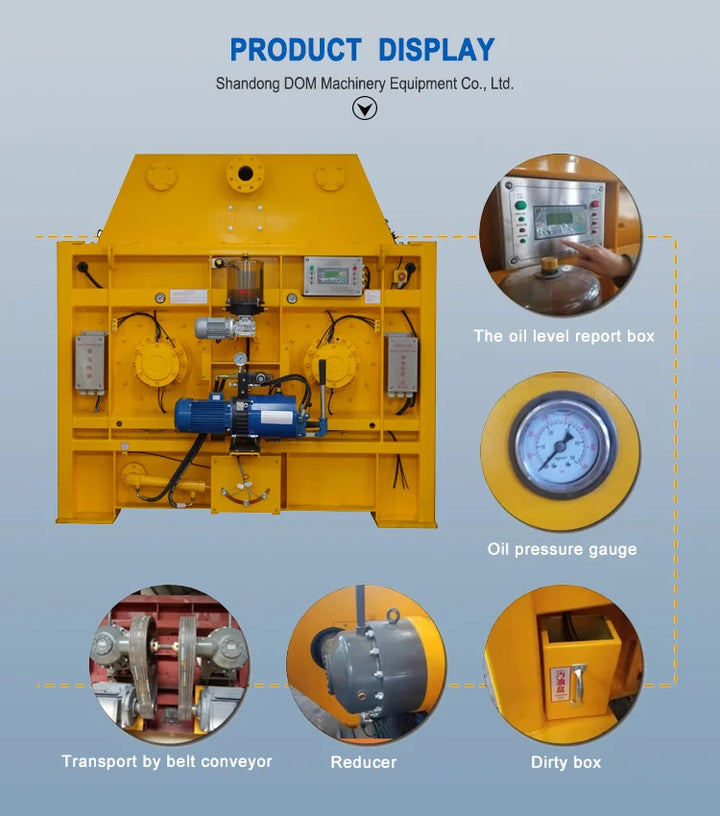

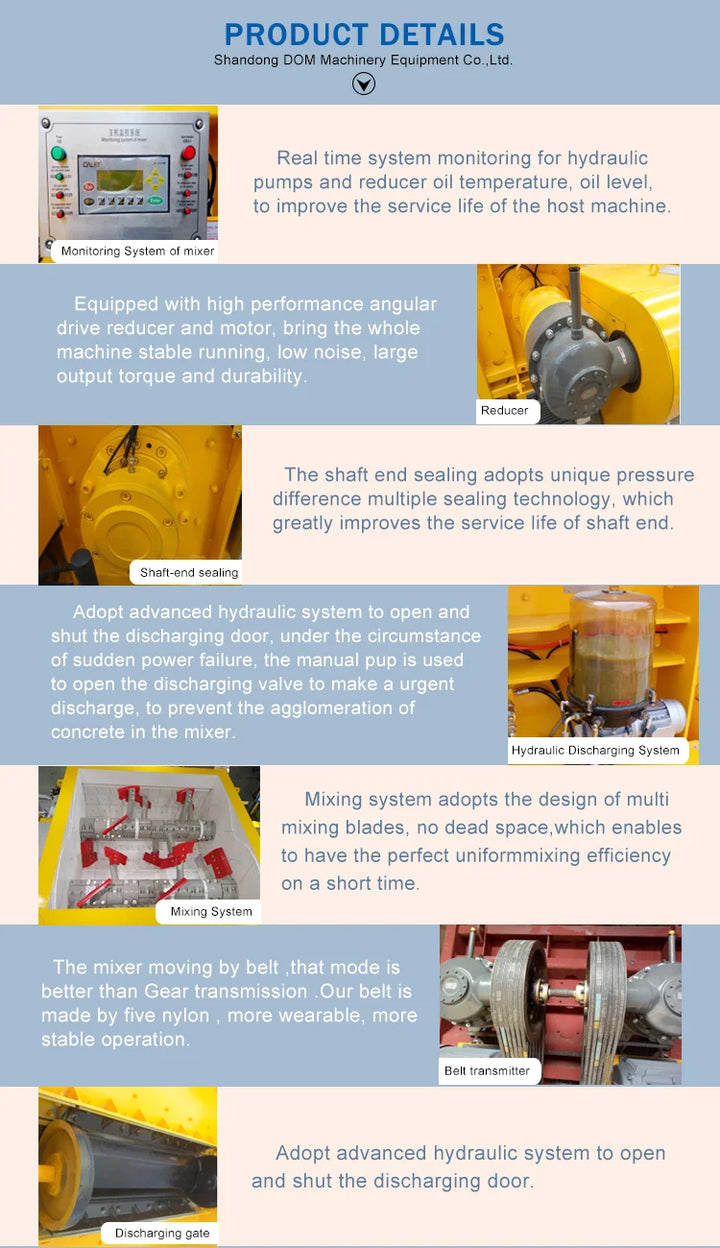

Production Features

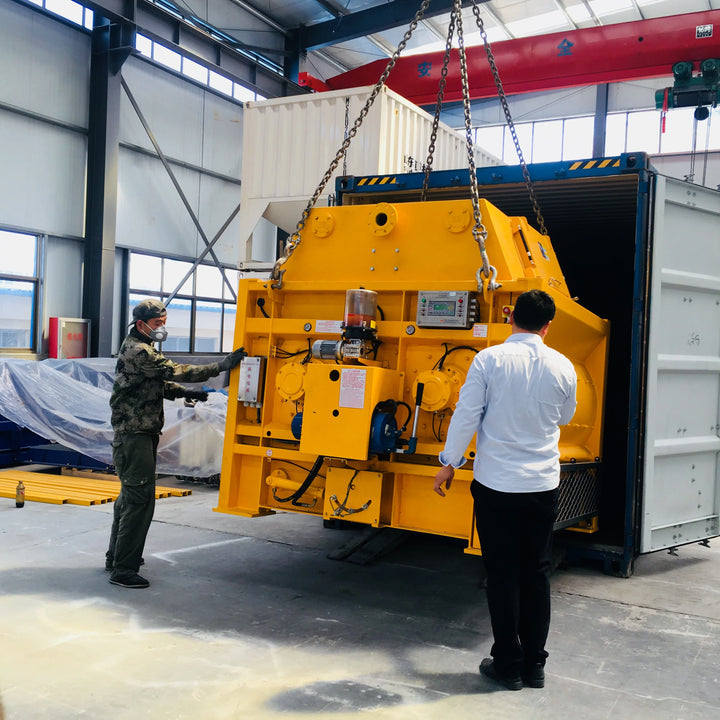

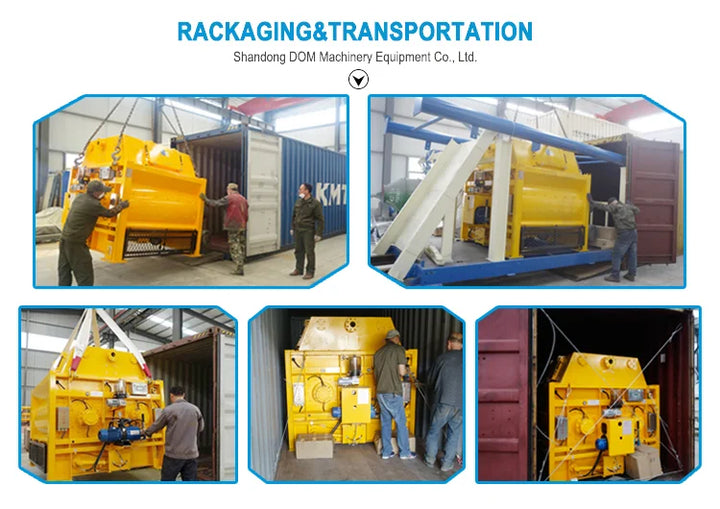

Package and shipping


Company Profile



Contact us

FAQ
FAQ
Q: Are you factory or a trading company? A: We are factory and a professional manufacture of concrete batching plant and cement silos. Q: What's your advantage? A: We are a young and active thinking group, we can design and also can advise special design according the clients detail requirements. Q: How about your producr quality? A: We are a factory that only do export, we must keep the high quality product to reduce the after-sale service cost. Q: Do you supply training and after-sale service? A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the problems as fast as possible. Q: How about your price? A: We will promise that you will get what you pay. Q: Do you have CE certificate for your concrete batching plant / cement silo? A: Yes, we have. Both are our patent products, certificated by CE.

Hot Sale 1m3 to 5m3 Twin Shaft Horizontal Concrete Mixer Js2000 for Concrete Batching Plant
$15,000.00
