Description

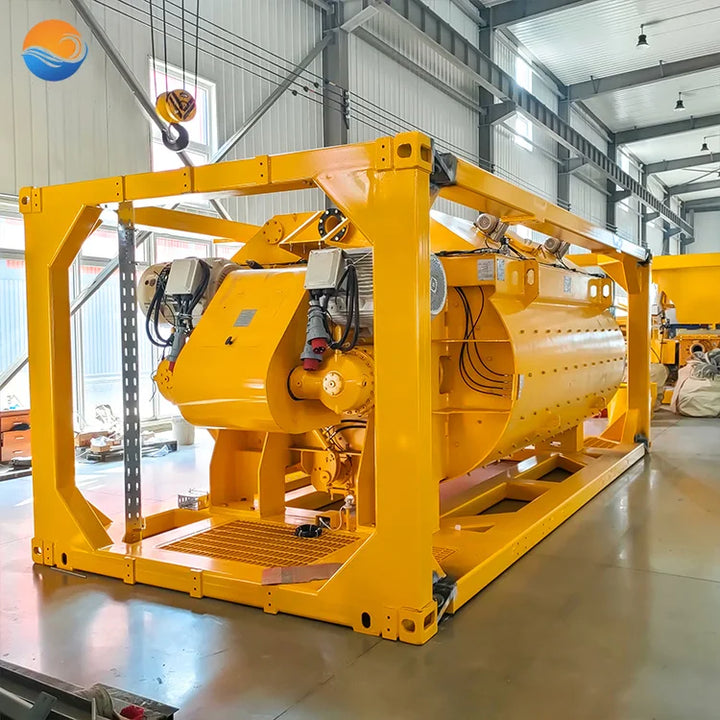

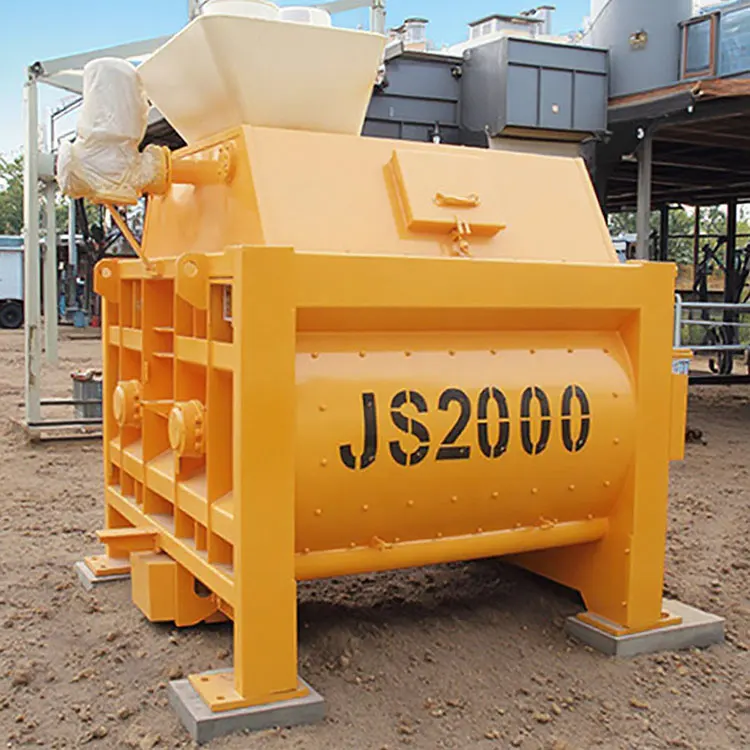

High quality JS 500 1000 2000 3500 4500L horizontal twin shaft concrete mixer for sale
Product Introduction
JS series mixer is a typical double horizontal shaft mixer, J means mixing, S means double horizontal shaft. This mixer can be used alone, can also be used with mixing station, concrete pump. Can mix dry hard concrete, plastic concrete, liquid concrete, light aggregate concrete and all kinds of mortar, suitable for all kinds of construction engineering and prefabricated component plant.Twin shafts mixer and Planetary mixer both are provided. Twin shafts mixer: Mixing Blade and scraper With 17% - 23% Cr
Chromium.There is oil temperature testing sensor inside the reducer. Test oil temperature automatically.
The components of the mixer includes the mixing equipment, driving device, discharging device, charging device, lubricating system,control system and so on.
Chromium.There is oil temperature testing sensor inside the reducer. Test oil temperature automatically.
The components of the mixer includes the mixing equipment, driving device, discharging device, charging device, lubricating system,control system and so on.
Why Choose Us

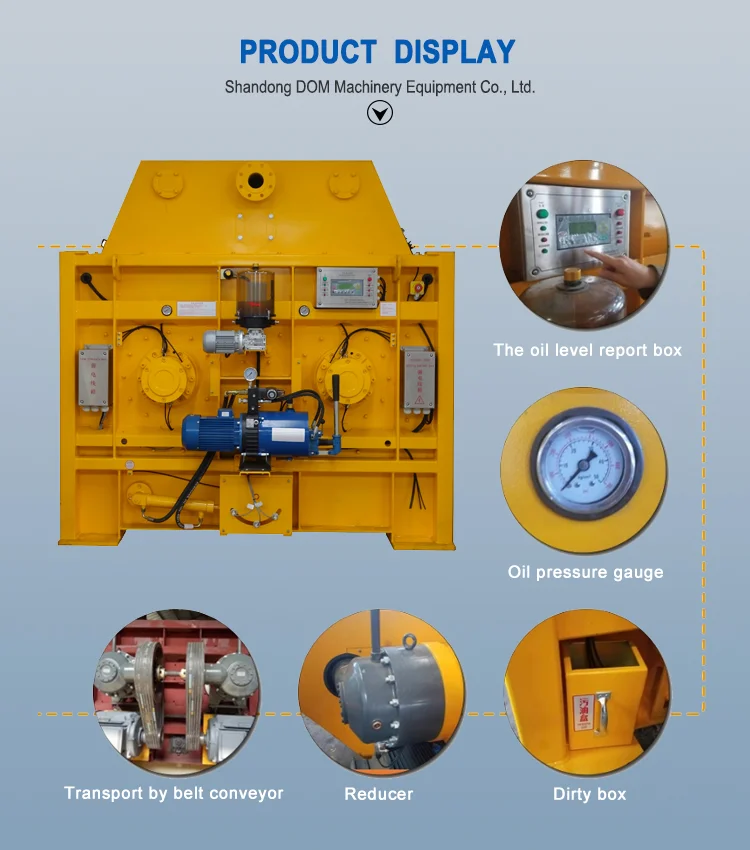

Main Accessories

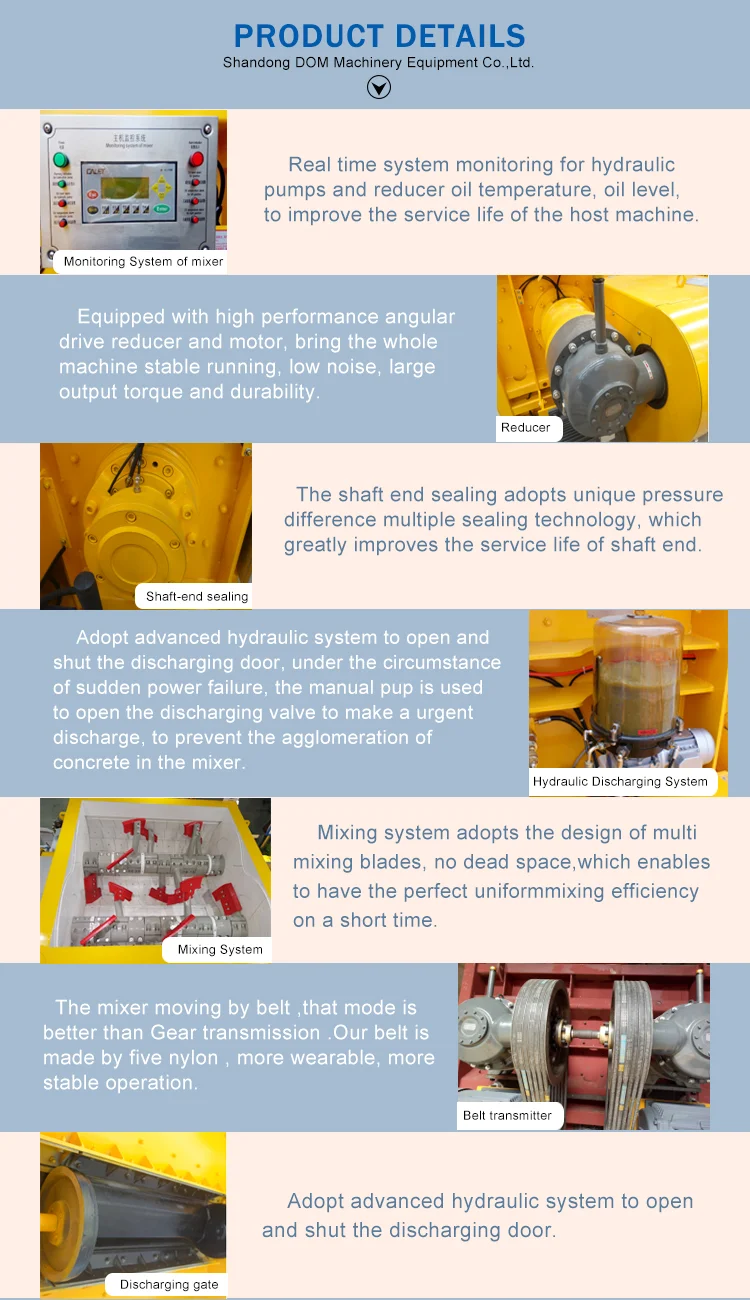

Accessories details
Specification
|
Model
|
JS 750
|
JS 1250
|
JS 1500
|
JS 2000
|
JS 3000
|
JS 4000
|
|
Charging capacity(L)
|
1200
|
2000
|
2400
|
3200
|
4800
|
6400
|
|
Discharging capacity(L)
|
750
|
1250
|
1500
|
2000
|
3000
|
4000
|
|
Production capacity(m3/h)
|
42
|
75
|
90
|
120
|
180
|
240
|
|
Mixing axle rotation speed(r/min)
|
29.9
|
29.67
|
26.75
|
23.5
|
23.4
|
22.85
|
|
Mixer motor power(kw)
|
2*15
|
2*22
|
2*30
|
2*37
|
2*55
|
2*75
|
|
Librication oil pump
motor power(kw) |
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
|
Hydraulic system
motor power(kw) |
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
|
Electromagnetism valve
power supply(V) |
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
|
Mixing time(s)
|
<=40
|
<=40
|
<=40
|
<=40
|
<=45
|
<=45
|
|
No. of mixing arm
|
12
|
12
|
16
|
16
|
18
|
22
|
|
Max diameter of
aggregate(Detritus/ Pebble) |
60/80
|
60/80
|
60/80
|
80/120
|
100/150
|
100/150
|
|
External dimensions(LxWxH)
|
2900x
2650x 2100 |
3000x
2750x 2100 |
2900x
3000x 2150 |
3450x
3000x 2150 |
3900x
3300x 2230 |
4500x
3310x 2230 |
|
Transportation dimensions(LxWxH)
|
2900x
2100x 2100 |
3000x
2100x 2100 |
2900x
2320x 2150 |
3450x
2320x 2250 |
3900x
2600x 2230 |
4500x
2600x 2230 |
|
Entire machine weight(kg)
|
5000
|
5300
|
6500
|
7500
|
9300
|
11800
|

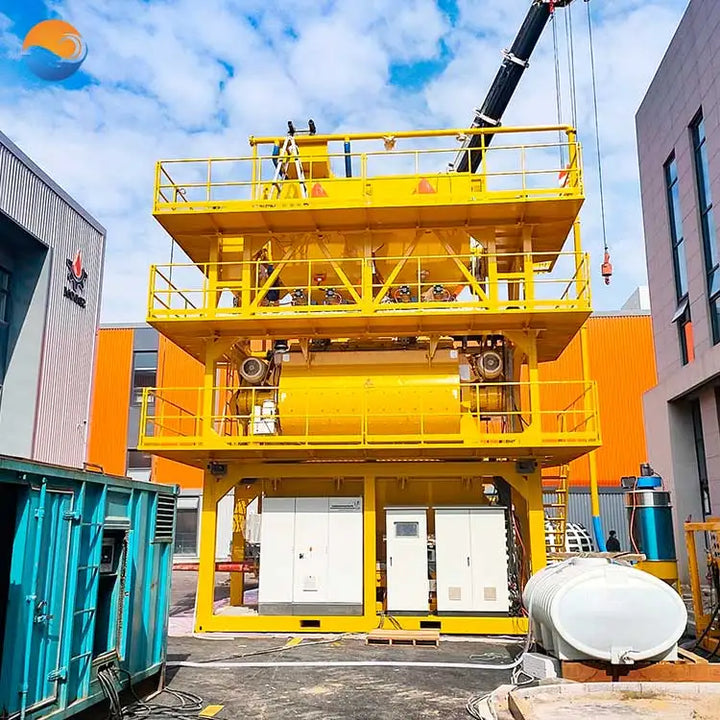

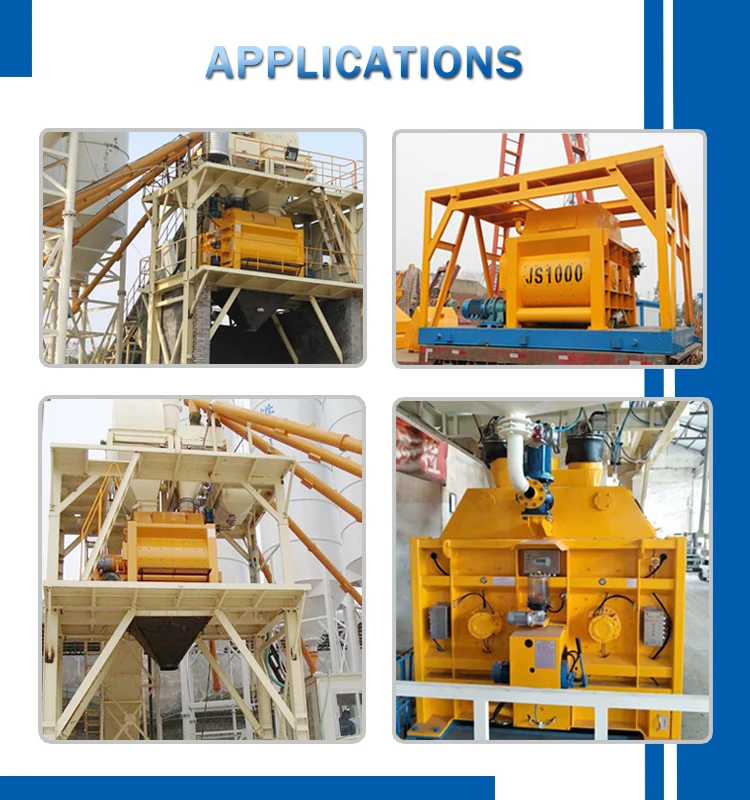

Product Application

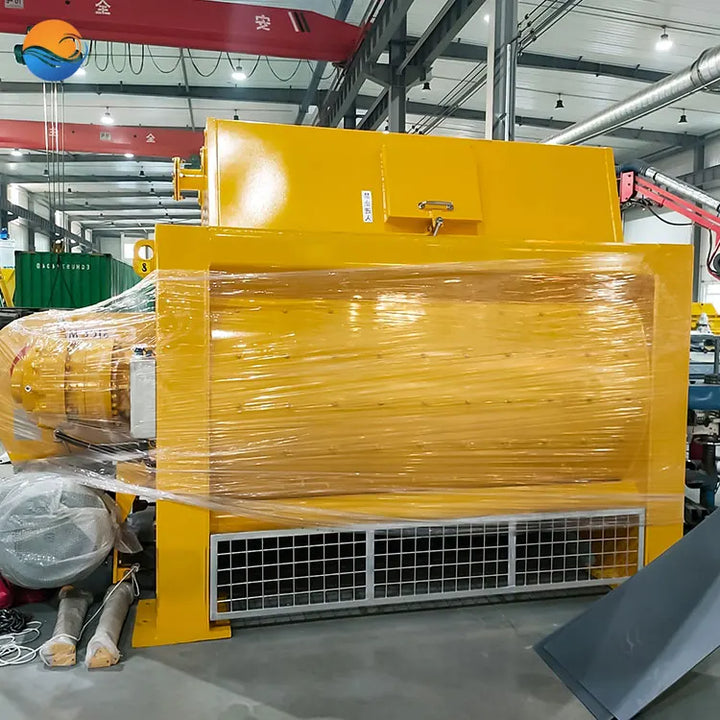

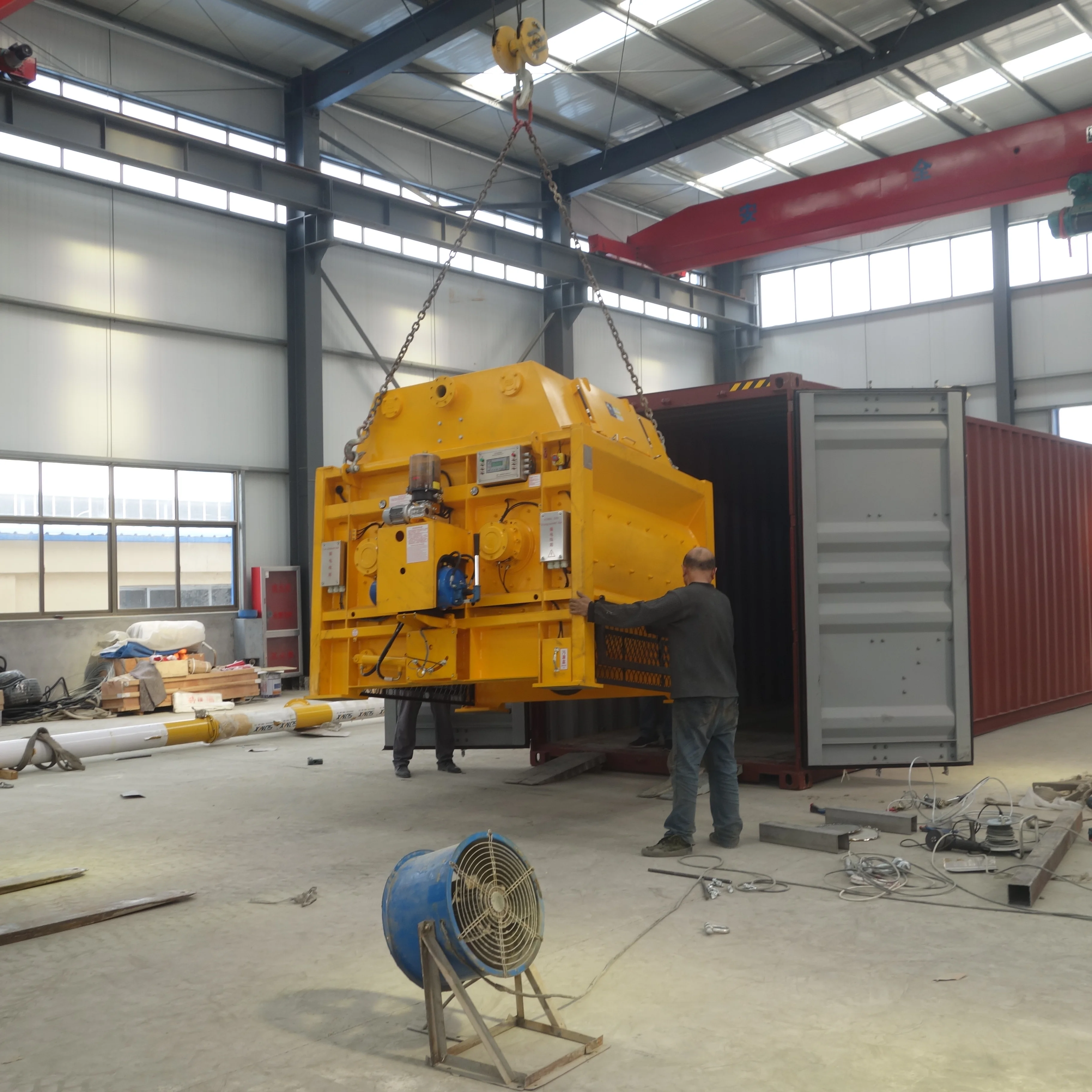

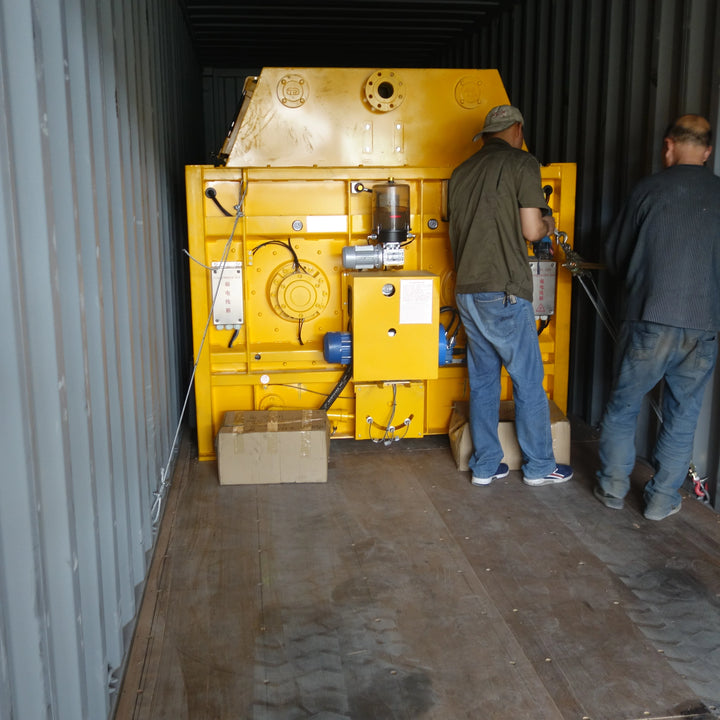

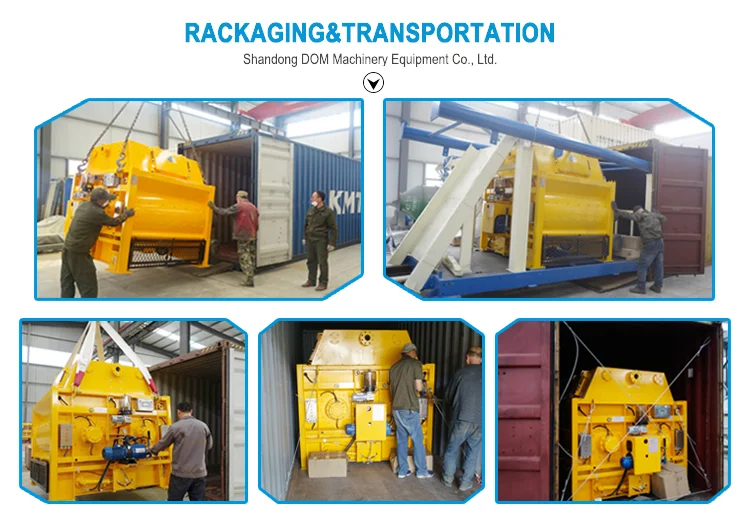

Package and Shipping
Company Profile

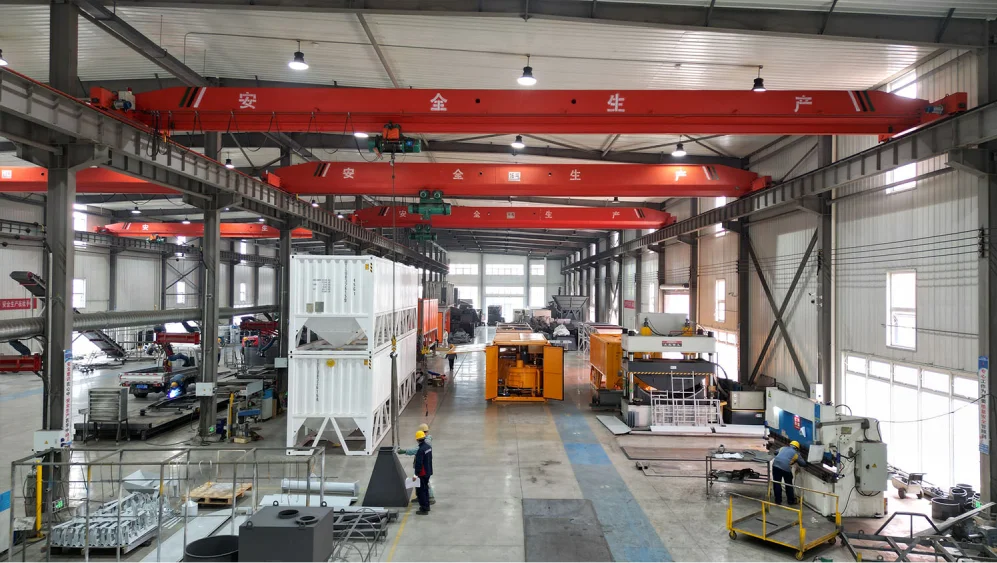

Real manufacturer with own production team
One-stop purchasing with private design team
SDDOM has more than 10 kinds of products are certificated by CE and get patent.Can achieve one-stop procurement requirements.SDDOM has own professional design team,provides a right and best case for your project.
Extensive export experience
DOM has more than 10 years experience in export.We know how to professionally pack and ship in order to save shipping cost and provide the best purchase and use experience for your.
1.Are you original manufacturer?
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you
need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you
need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
