Description
Product Description

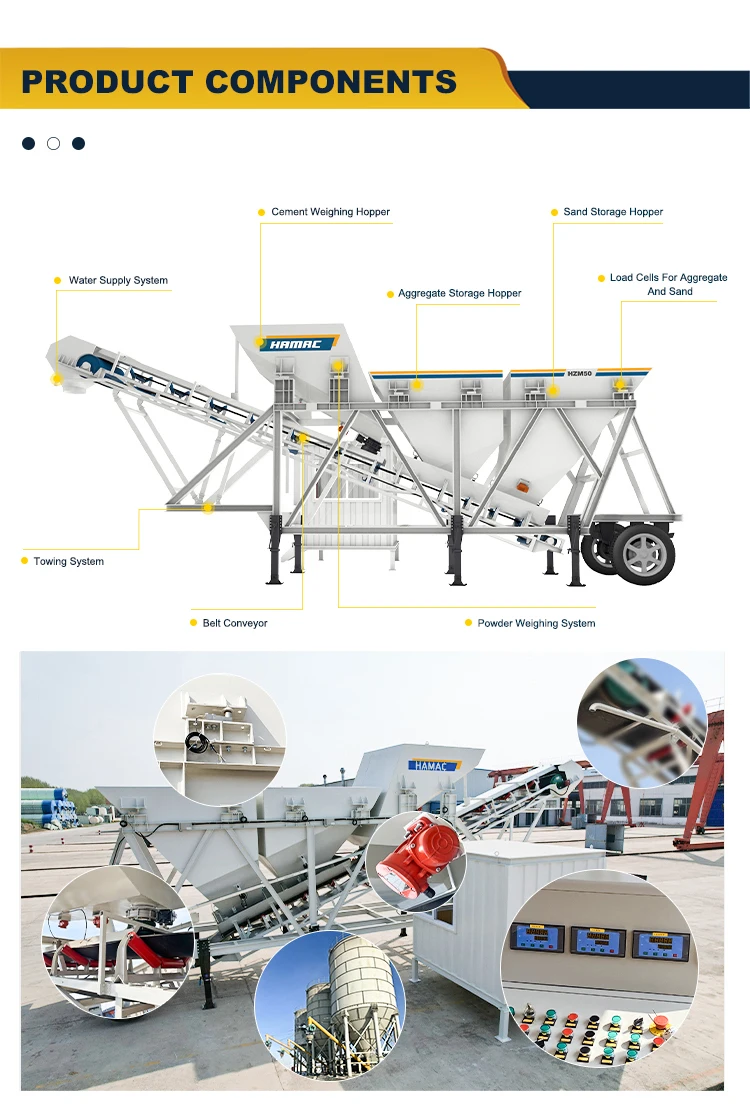

Belt conveyor, it is used to transport the aggregate and sand into the truck concrete mixer.
Weighing system, there are load cells for aggregate, sand and cement, these different materials will be weighed firstly, and then
fed into the mixer truck
Water supplying system, the water is supplied into the concrete mixer truck by a water pump which is controlled by time relay It
control the water quantity via controlling the working time of water pump
Aggregate pre-feeding systems are our alternative solutions to the loading ramps which are necessary for charging the hoppers by
wheel loaders. In case of using aggregate pre-feeding systems, requirement of loading ramp is removed
Control system, dry type batching plant is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand
electronic components and PLC . The whole system is controlled through an advanced software which is sophisticated features and
user friendly interface
Cement silo or cement hopper is used to stock the cement. HAMAC dry type concrete plant can be equipped with different size of
cement silos from 50 to 500 tons storage capacity according to the needs and conditions of our clients’ projects.
If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging
systems which can be integrated to the dry mixing plant
Weighing system, there are load cells for aggregate, sand and cement, these different materials will be weighed firstly, and then
fed into the mixer truck
Water supplying system, the water is supplied into the concrete mixer truck by a water pump which is controlled by time relay It
control the water quantity via controlling the working time of water pump
Aggregate pre-feeding systems are our alternative solutions to the loading ramps which are necessary for charging the hoppers by
wheel loaders. In case of using aggregate pre-feeding systems, requirement of loading ramp is removed
Control system, dry type batching plant is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand
electronic components and PLC . The whole system is controlled through an advanced software which is sophisticated features and
user friendly interface
Cement silo or cement hopper is used to stock the cement. HAMAC dry type concrete plant can be equipped with different size of
cement silos from 50 to 500 tons storage capacity according to the needs and conditions of our clients’ projects.
If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging
systems which can be integrated to the dry mixing plant
|
Technical data
|
Models
|
||||
|
|
HZM25
|
HZM35
|
HZM50
|
||
|
Theoretical capacity(m³/h)
|
25
|
35
|
50
|
||
|
Batching system
|
PLD1200
|
PLD1200
|
PLD1600
|
||
|
Discharging height (mm)
|
3800
|
3800
|
3800
|
||
|
Maximum aggregates size(mm)
|
60(80)
|
60(80)
|
60(80)
|
||
|
automatic Cycle time(s)
|
72
|
72
|
72
|
||
