INTRODUCTION

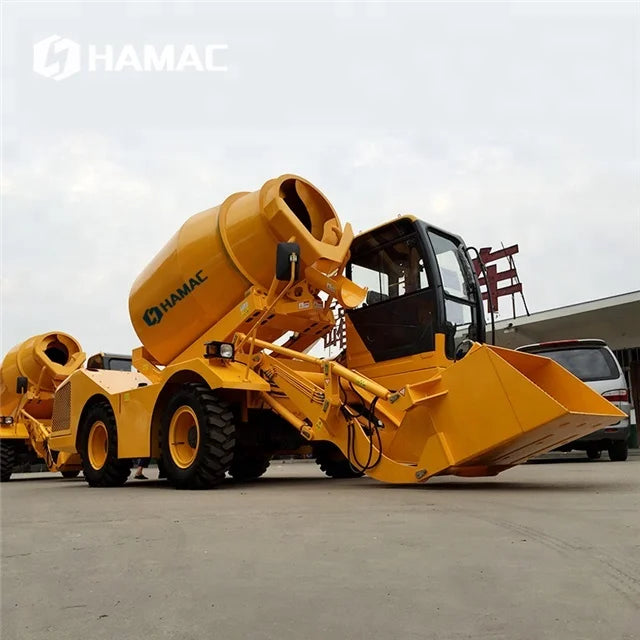

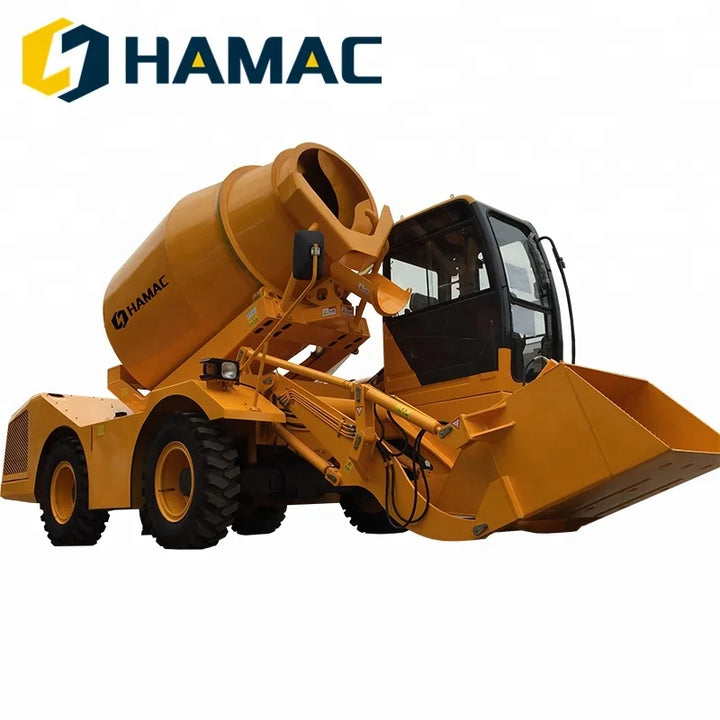

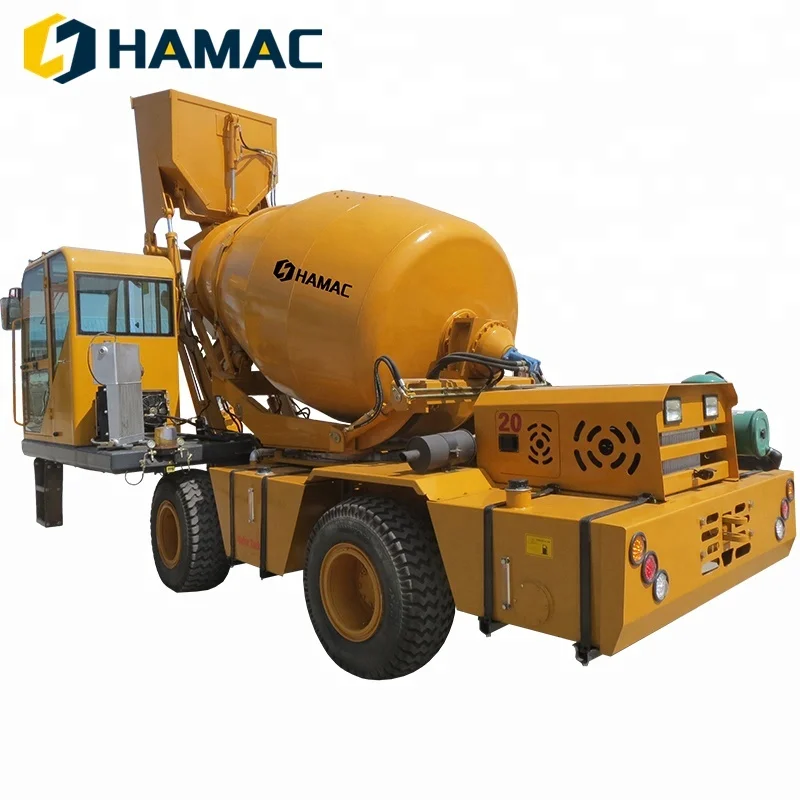

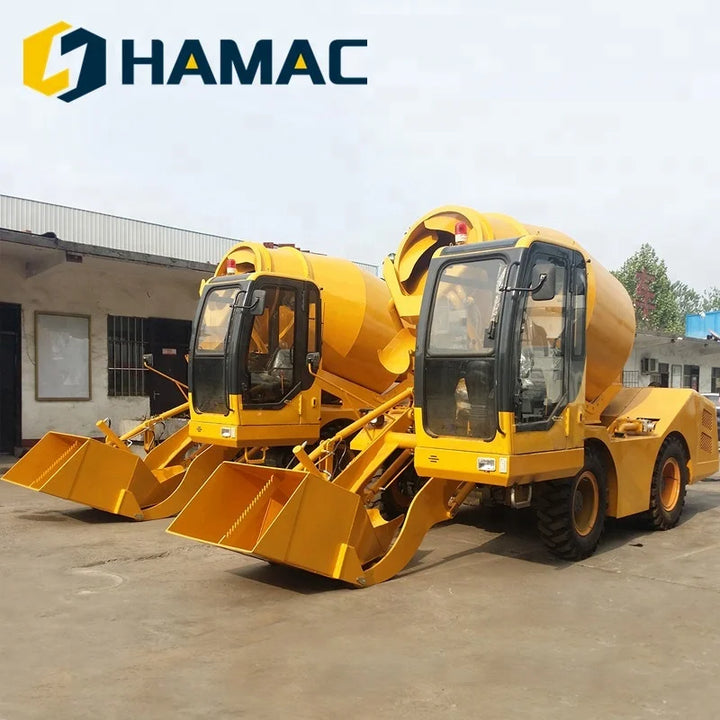

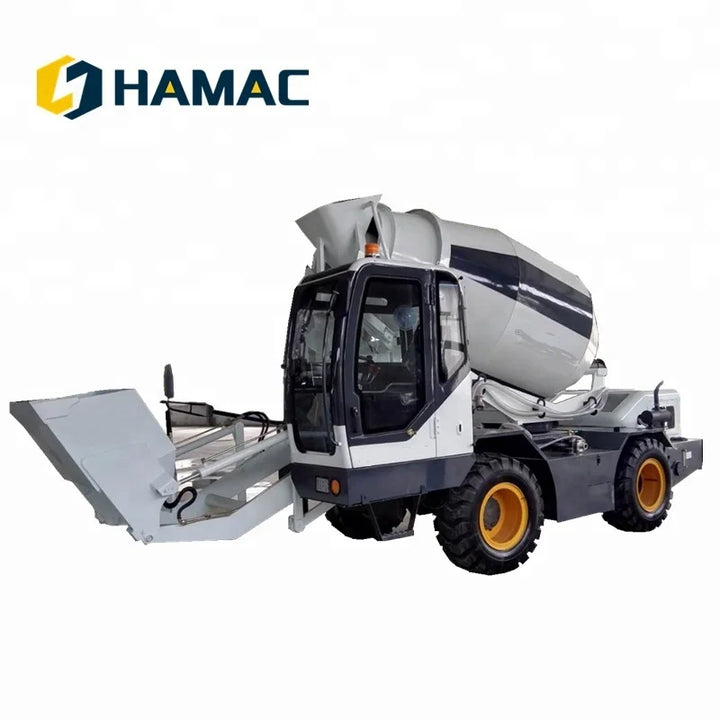

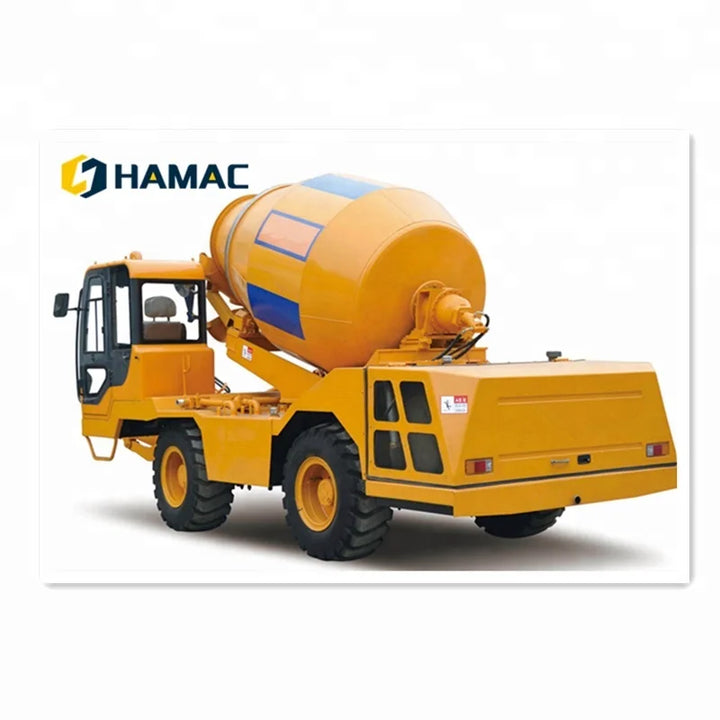

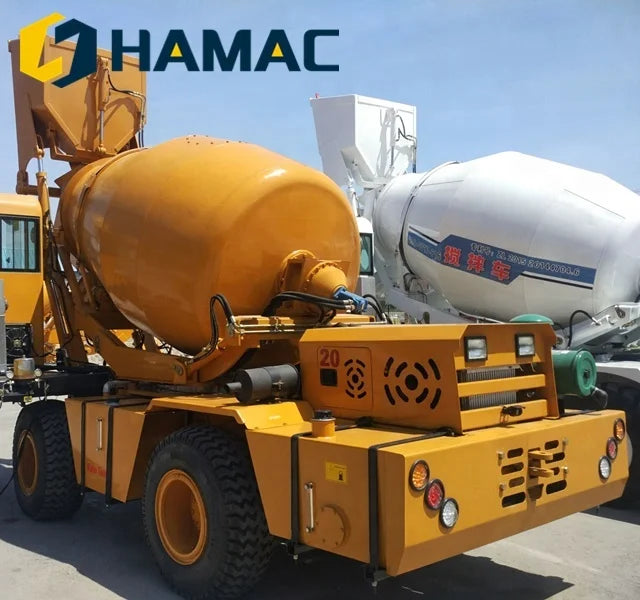

Self-loading mobile concrete mixer is an equipment combined with concrete mixer truck and concrete mixing station. Raw material loading, weighting, mixing and discharging all rolled into one machine. It could be used not only to transport the concrete but also to produce the concrete at site. It is suitable for the working area where is far from the concrete batching plant and some short-time finished projects.

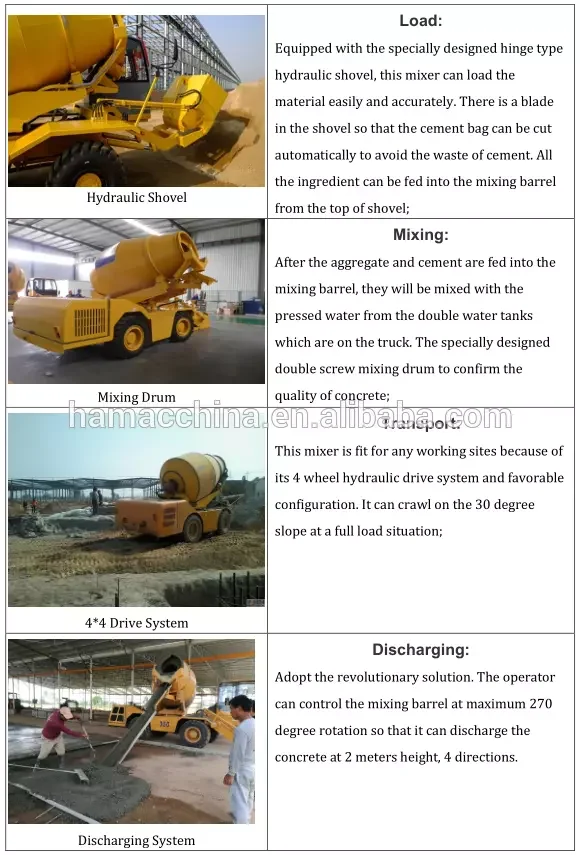

PERFORMANCE

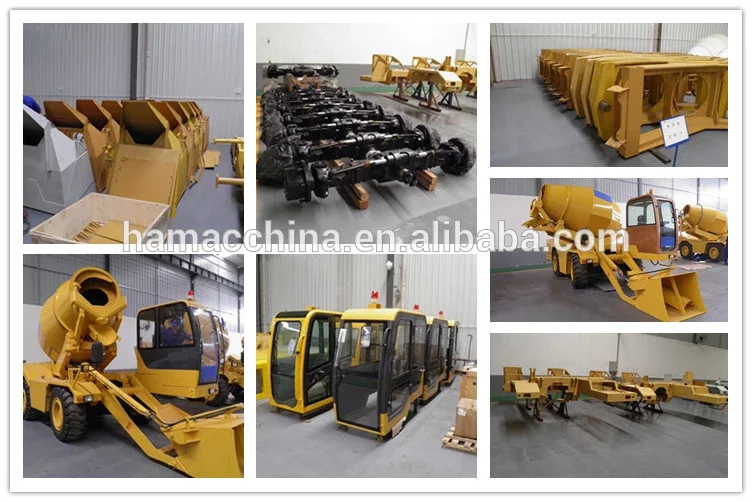

MANUFACTURING PROCESS
SPECIFICATION
DIESEL ENGINE |
Model: YN27GBZ |
ELECTRIC SYSTEM |
Alternator: 28V—500 W (18A) Battery: 2*12V--80AH (362A) Road light system, rear working lights.
|
STEERING |
Two steering wheels: Assisted by means of load-sensing power steering on 2 steering wheels. 4X4 FOUR-WHEEL DRIVE Hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel. Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
|
SPEED |
2 forward gears 2 reverse gears Ist 0 - 7.0 Km/h 0 - 7.0 Km/h 2nd 7-20 Km/h 7- 20 Km/h
|
|
AXLES AND WHEELS
|
Front wheel is steering with planetary reduction gears on the Isuzu Axle with flanged gearbox. Rear axle is oscillating(± 28°)with planetary reduction gears. Tires: 12-16.5-12PR, Max. LOAD2540kg , 450kPa RIM:9.75
|
BRAKES |
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit. Negative type parking brake, with internal wheel hub discs on the front axle.
|
WATER SYSTEM |
24V "Self-priming" volumetric water pump with quick-suction. Max. capacity: 90 liters/min. two tanks with each capacity of 230 liters. Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat. Washing vehicles outside by water blast gun via high pressure water pump.
|
MIXING AND UNLOADING |
Double-cone drum with double-spiral mixing screws and convex bottom. Geometrical drum volume: 2900 liters Drum rotation speed: 13 rpm Concrete produced as: 1.6m³ Drum rotation by means of a Gear pump with variable flow rate and an cycloid gear hydraulic motor with manual control valve positioned in the cabin. Unloading chute with variable Manual handle tilting One unloading chute extension provided as standard equipment.
|
|
EQUIPMENT HYDRAULIC SYSTEM
|
Max. flow rate: 63/50 liters/min. Maximum pressure: 16MPa 3-Handles controlled with multi-function joystick. Aluminum heat exchanger for hydraulic oil cooling. Pressurized open-circuit intake with oil filter replaceable from the outside.
|
LOADER |
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever. Volumetric capacity: 270 liters Number of loading times: around 6
|
CAB |
Closed cab with heating system, Tilting front window. Anatomic seat with flexible suspension and height adjustment.
|
WEIGHING AND PRINTING |
Famous domestic weighing system, data will be also printed |
SERVICE REFILL CAPACITIES |
Fuel tank: 100 liters Total hydraulic system capacity: 100 liters Engine oil: 16 liters
|
WEIGHTS |
Operating weight: 5,500 kg Max gross weight: 9,340 kg load-carrying capacity: 3,840 kg
|

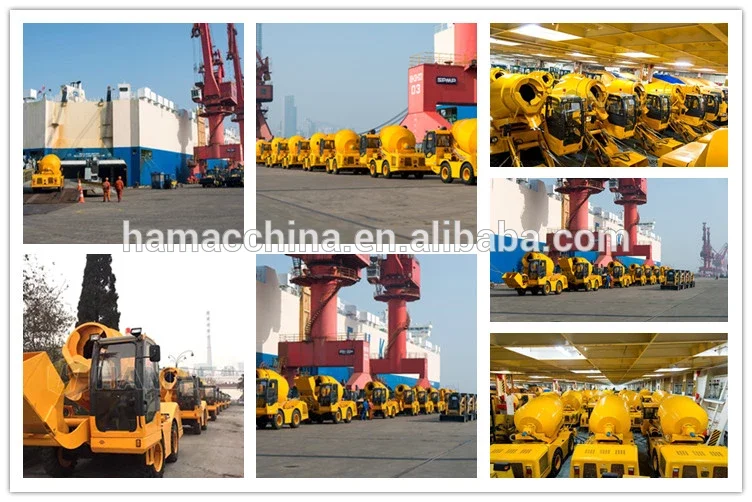

GOODS DELIVERY

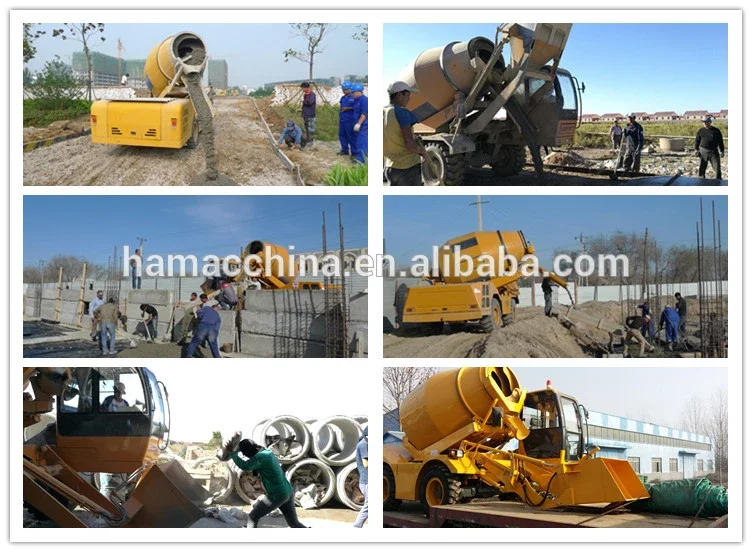

SUCCESSFUL CASES
