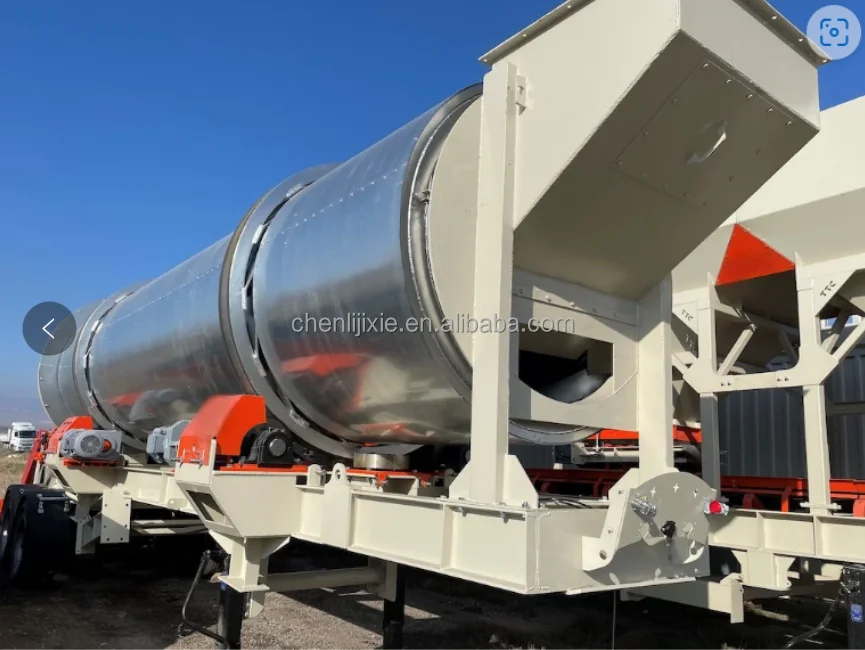

Continuous Asphalt Mixing Plant

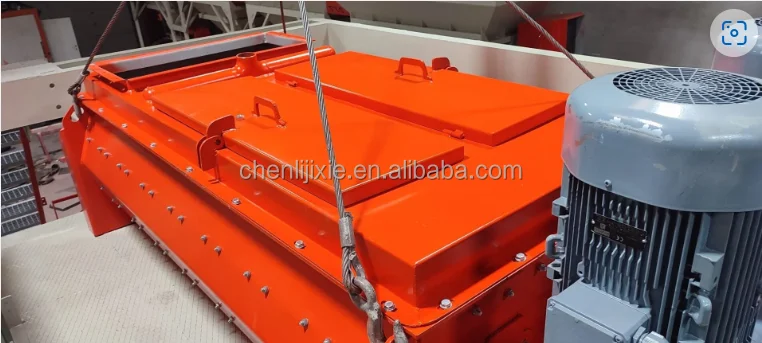

Continuous Type Mixer

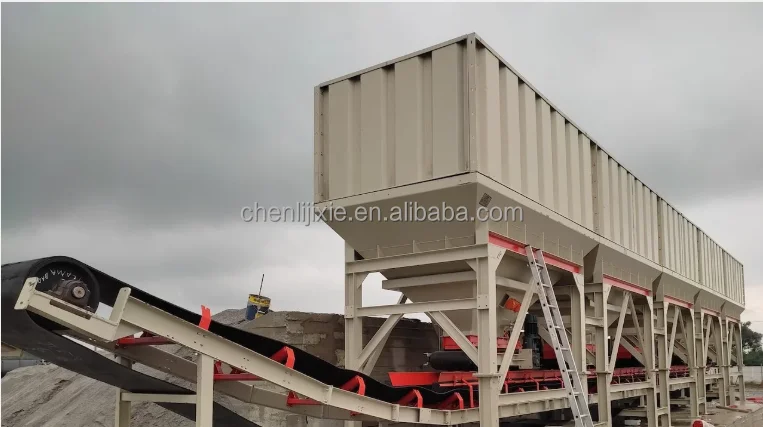

Cold Aggregate Silo

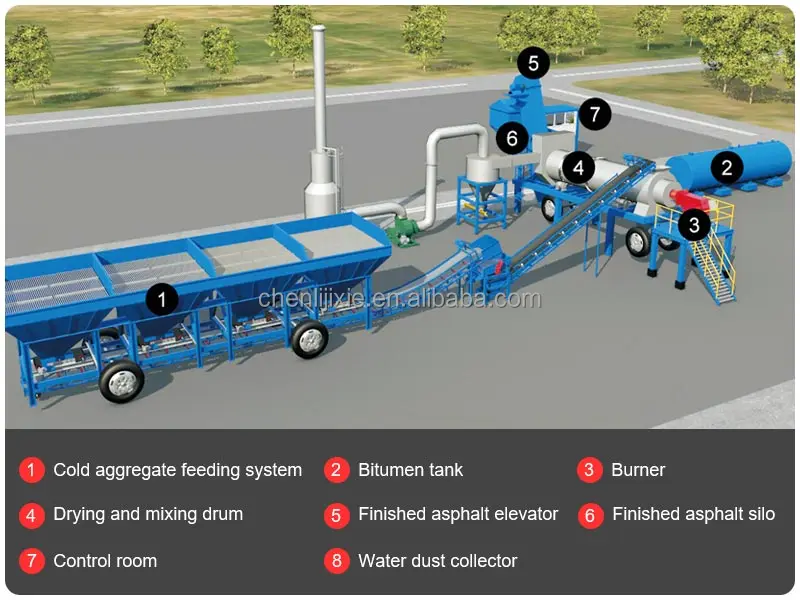

How does continuous asphalt mix plants work?
Continuous asphalt mix plants work by continuously feeding aggregates (such as gravel, sand, and stone) into a rotating drum where they are mixed with bitumen to produce hot asphalt mix.
1. Aggregate Feeding: Cold aggregate materials are fed into the drum through a feeder system. These materials typically include different sizes of aggregates to achieve the desired asphalt mix.
2. Drying and Heating: As the aggregates move through the drum, they are dried and heated by a burner system. The burner heats the drum, and the hot gases produced by combustion pass through the drum, heating the aggregates.
3. Mixing: At a certain point in the drum, bitumen is injected into the mix, where it coats the heated aggregates. The continuous rotation of the drum ensures thorough mixing of the aggregates and bitumen, creating a uniform asphalt mix.
4. Storage and Discharge: Once the mixing process is complete, the hot asphalt mix is discharged from the drum into trucks or storage silos for transportation or immediate use in paving applications.
| Model | Production Capacity | Aggregate Feeder | Hot Asphalt Bin | Total Power | Fuel Consumption | Measurement Accuracy |
|
| Diesel | Coal | ||||||
| LBL60 | 60t/h | 4m³*4 | 3.5m³ | 111kw | 5.5~7kg/t | 10kg/t | Aggergate:±1.5% Bitumen:±1% |
| LBL80 | 80t/h | 6m³*4 | 4.5m³ | 142kw | 5.5~7kg/t | 10kg/t | |
| LBL120 | 120t/h | 8m³*4 | 5.5m³ | 237kw | 5.5~7kg/t | 10kg/t | |

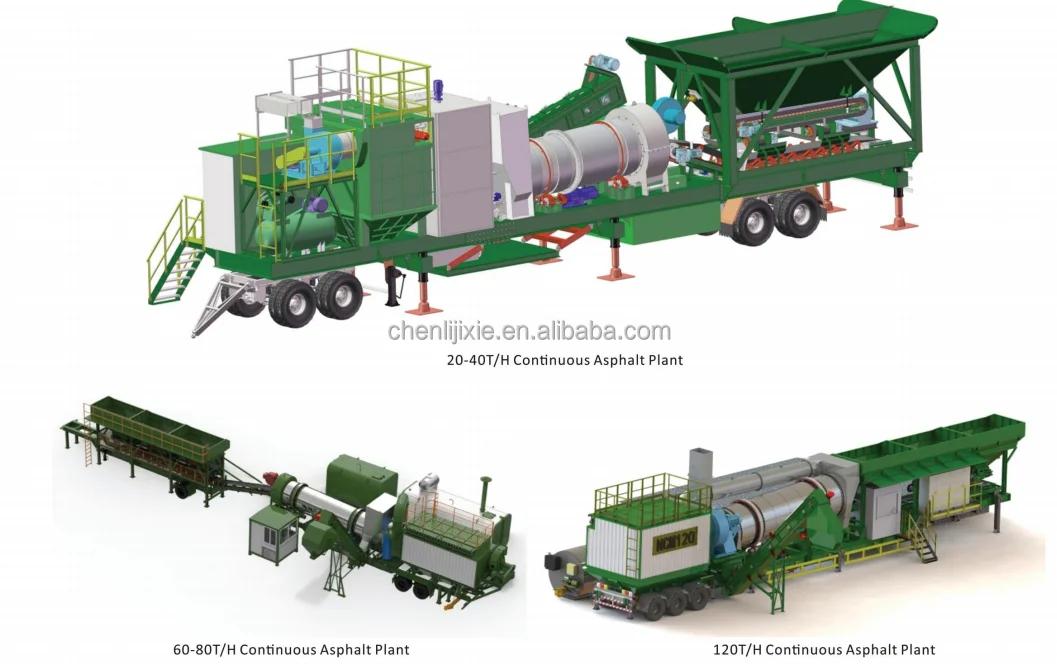

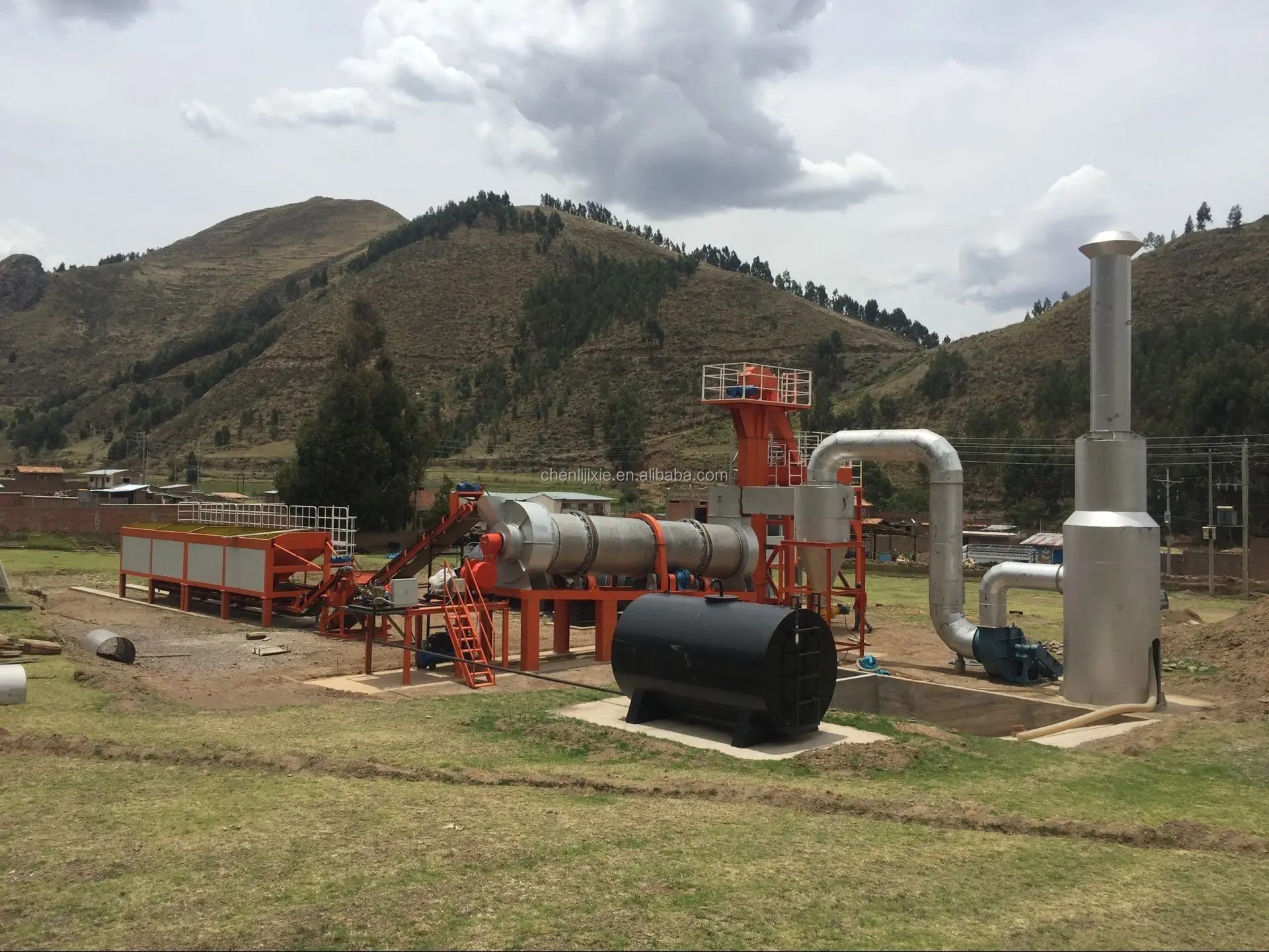

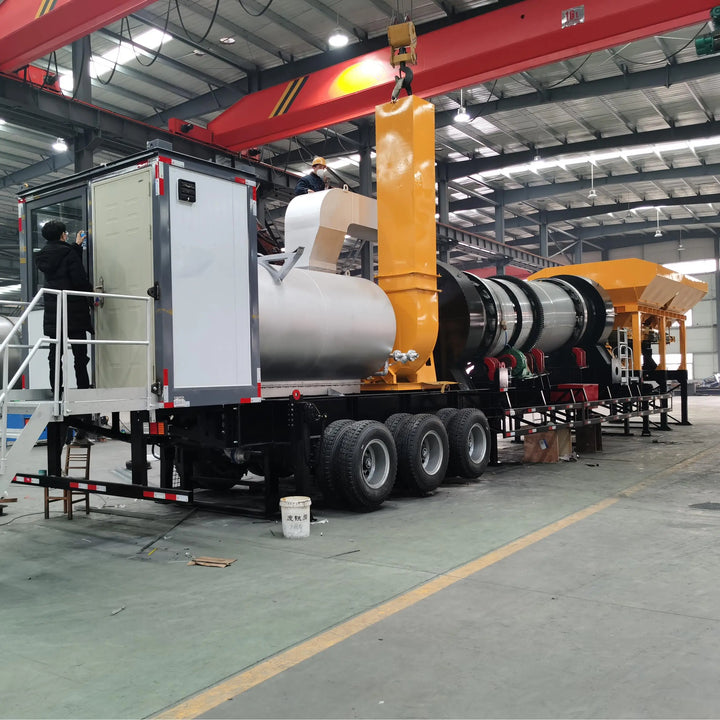

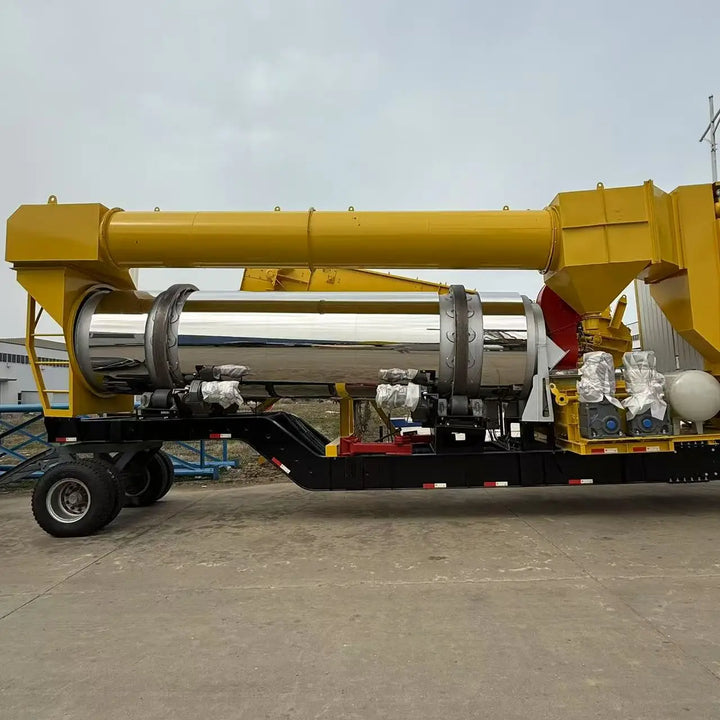

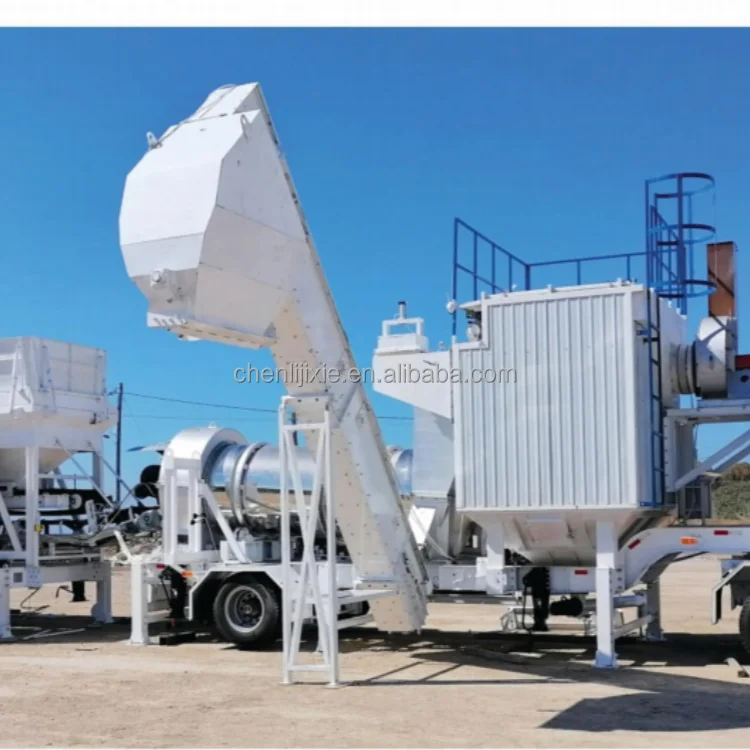

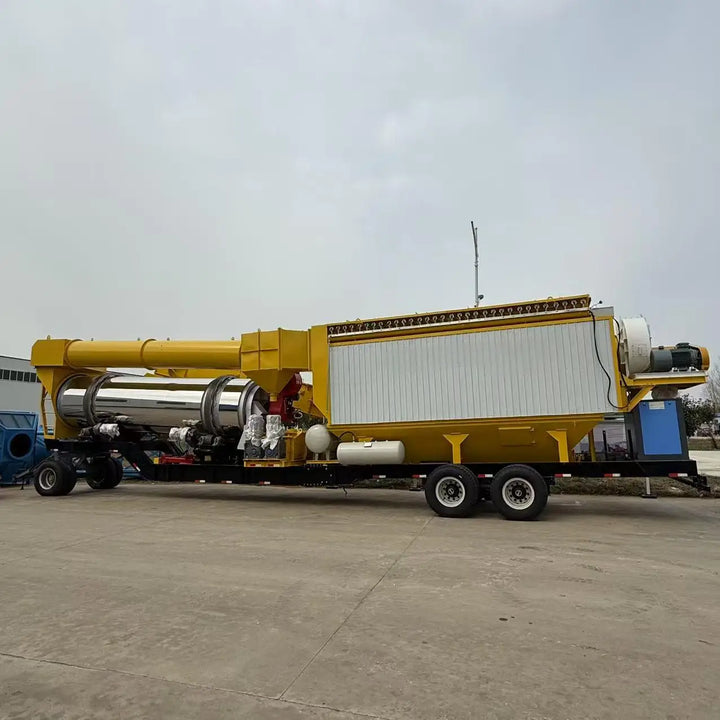

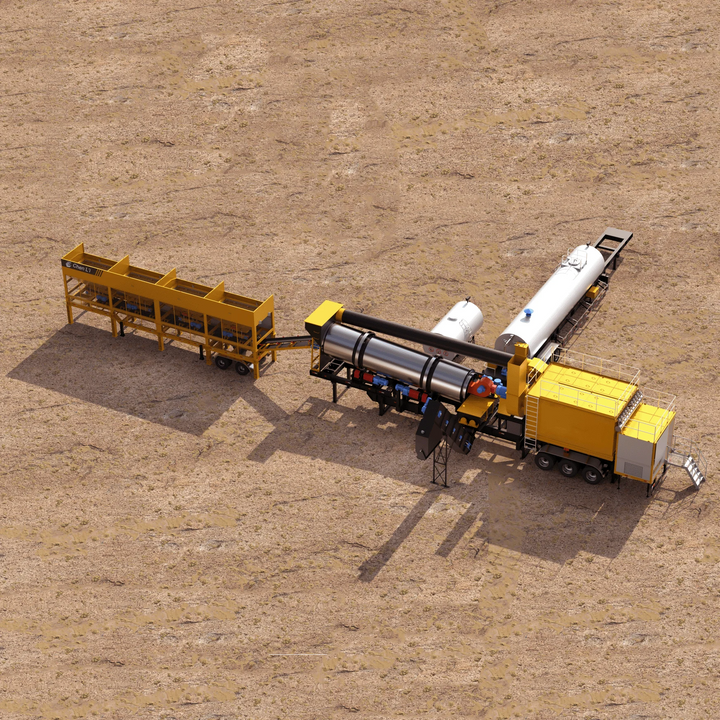

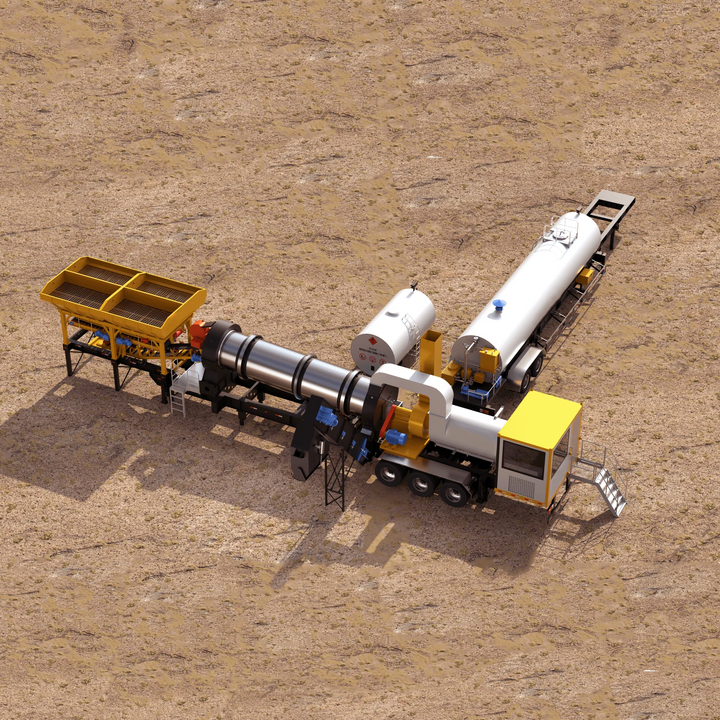

CONTINUOUS ASPHALT MIXING PLANT
Continuous asphalt mixing plant is with energy saving burner, fuel,oil,gas, coal for option.
The asphalt mixing plant occupies a small area, its productivity is high, and its input cost is
low.
The basic work of the continuous asphalt plant is simple, and the mobile device can be
equipped as mobile.
The asphalt plant filler is added accurately in proportion to ensure the high quality of the
mixture.
Tai'an Chenli Construction Machinery Co., Ltd is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. Based on a deep understanding of building intelligent equipment, TaThe current leading products are Good Economy Low Production Cost Movable Asphalt Plant, mortar production lines, tower type sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users
FAQ:
1. Do you offer warranty on your equipment?
Yes, we offer a full warranty on new equipment purchasing.
2. Where is the port of loading?
Normally the port of loading is QINGDAO PORT, SHANDONG, CHINA.
3. Can you print other LOGO on your machine?
Yes, we can, and we also offer OEM service.
4. Who are we?
We are professional manufacturer of concrete batching plant.
5. Where are you?
We are located in TAIAN City SHANDONG Province China.
