The capacity of twin shaft concrete mixer is various according to different construction site requirement, including 0.5 m³, 0.75 m³, 1m³, 1.25 m³, 1.5 m³, 2 m³, 2.5 m³, 3 m³, 3.5 m³, 4 m³ and 4.5 m³.
Description
Introduction

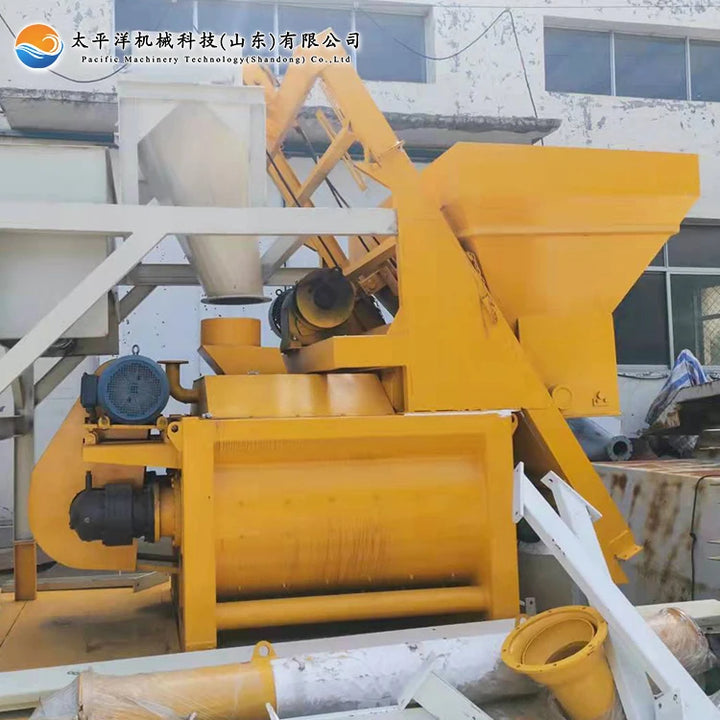

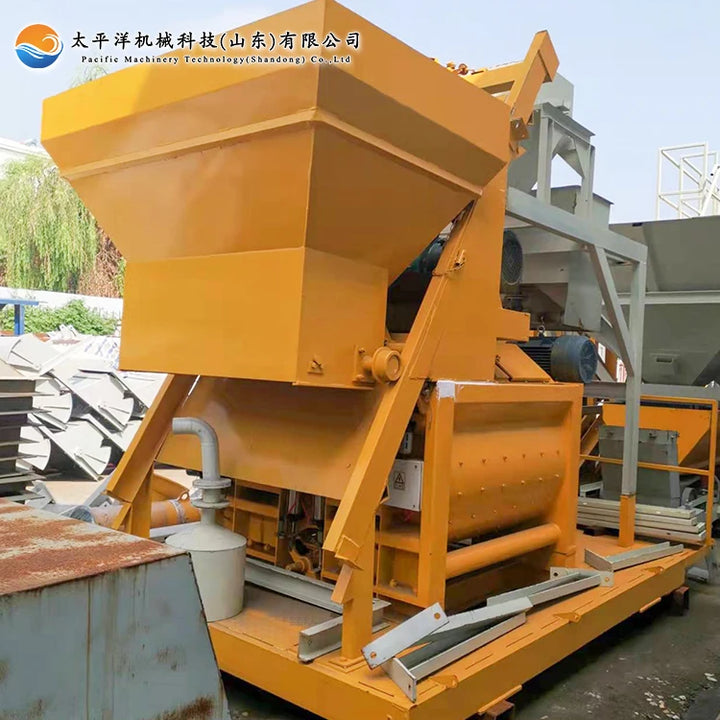

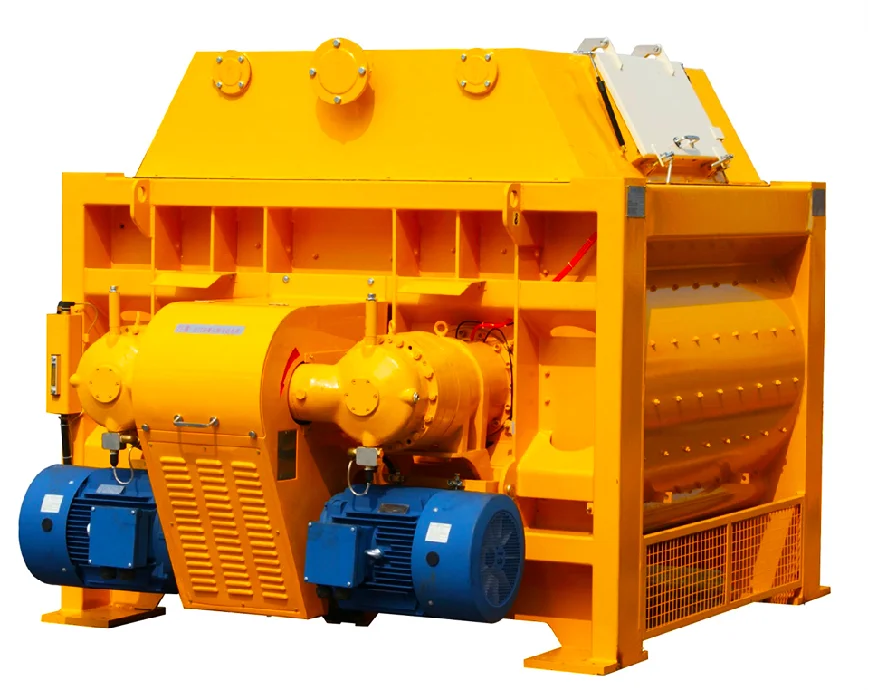

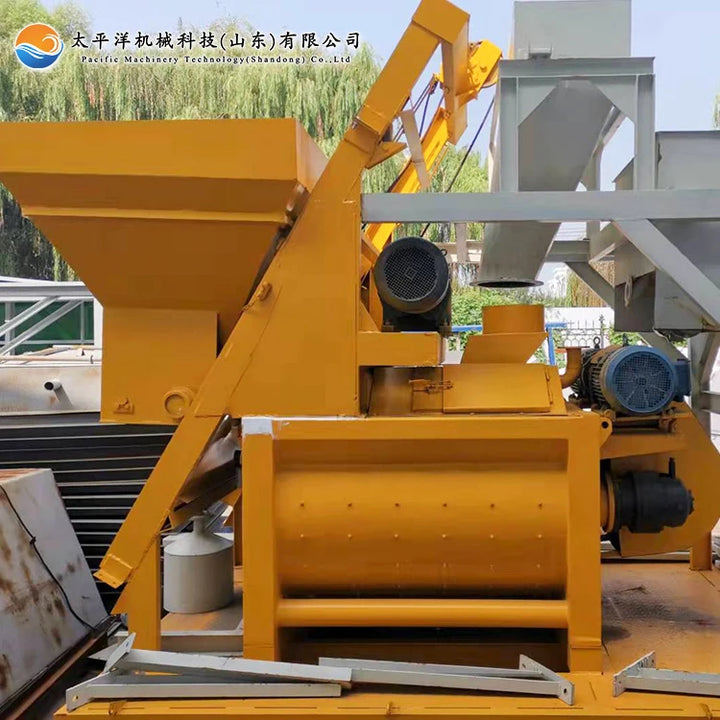

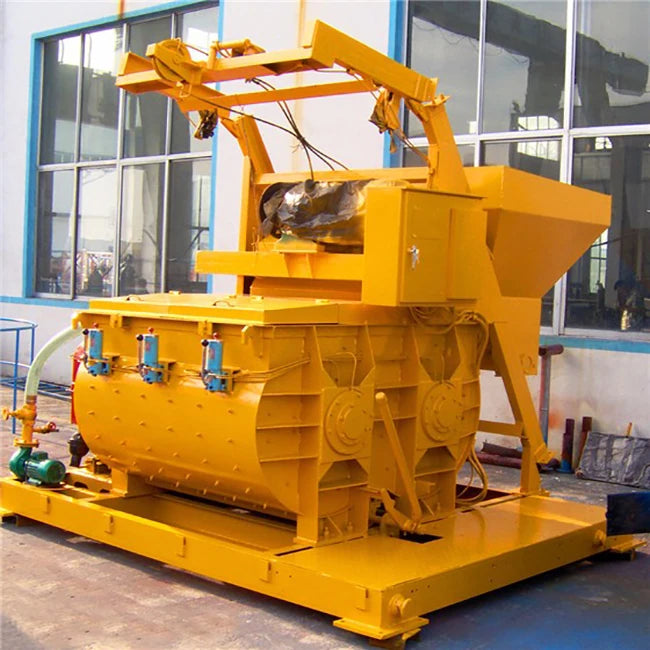

In Twin Shaft Concrete Mixers, each shaft rotates in opposite directions, hence collision between the mixing blades will be prevented. Each shaft rotated by a bevel gearbox which is driven by an electric motor. Twin shaft concrete mixer is starting mixing process when materials -cement, aggregate, water, additives - flows into mixing drum. Mixer forms a spiral movement for better homogeneity of concrete. Mixing process continues according to required mixing time for the recipe. With the scraper blades which have been located at the initial and final point of shafts, all of the concrete will be collected and get ready for the discharging process.
|
Technical Parameter
|
||||||||||||
|
Model
|
JS 750
|
JS 1250
|
JS 1500
|

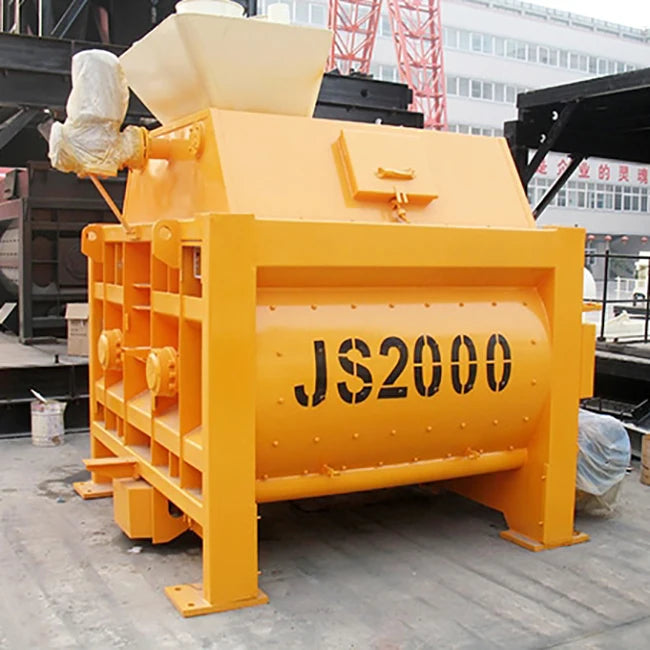

JS 2000
|
JS 3000
|
JS 4000
|
||||||
|
Charging capacity(L)
|
1200
|
2000
|
2400
|
3200
|
4800
|
6400
|
||||||
|
Discharging capacity(L)
|
750
|
1250
|
1500
|
2000
|
3000
|
4000
|
||||||
|
Production capacity(m3/h)
|
42
|
75
|
90
|
120
|
180
|
240
|
||||||
|
Mixing axle rotation speed(r/min)
|
29.9
|
29.67
|
26.75
|
23.5
|
23.4
|
22.85
|
||||||
|
Mixer motor power(kw)
|
2*15
|
2*22
|
2*30
|
2*37
|
2*55
|
2*75
|
||||||
|
Librication oil pump
motor power(kw)
|
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
0.09
|
||||||
|
Hydraulic system
motor power(kw)
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
||||||
|
Electromagnetism valve
power supply(V)
|
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
DC24
|
||||||
|
Mixing time(s)
|
<=40
|
<=40
|
<=40
|
<=40
|
<=45
|
<=45
|
||||||
|
No. of mixing arm
|
12
|
12
|
16
|
16
|
18
|
22
|
||||||
|
Max diameter of
aggregate(Detritus/
Pebble)
|
60/80
|
60/80
|
60/80
|
80/120
|
100/150
|
100/150
|
||||||
|
External dimensions(LxWxH)
|
2900x
2650x
2100
|
3000x
2750x
2100
|
2900x
3000x
2150
|
3450x
3000x
2150
|
3900x
3300x
2230
|
4500x
3310x
2230
|
||||||
|
Transportation dimensions(LxWxH)
|
2900x
2100x
2100
|
3000x
2100x
2100
|
2900x
2320x
2150
|
3450x
2320x
2250
|
3900x
2600x
2230
|
4500x
2600x
2230
|
||||||
|
Entire machine weight(kg)
|
5000
|
5300
|
6500
|
7500
|
9300
|
11800
|
||||||
FAQ
Q: Are you factory or a trading company? A: We are factory and a professional manufacture of concrete batching plant and cement silos. Q: What's your advantage? A: We are a young and active thinking group, we can design and also can advise special design according the clients detail requirements. Q: How about your producr quality? A: We are a factory that only do export, we must keep the high quality product to reduce the after-sale service cost. Q: Do you supply training and after-sale service? A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the problems as fast as possible. Q: How about your price? A: We will promise that you will get what you pay. Q: Do you have CE certificate for your concrete batching plant / cement silo? A: Yes, we have. Both are our patent products, certificated by CE.
