Concrete Electric Pole Mould with German Technology,cement Pole Making Machine

HK$3,000.00

Model Number: Nile-pole

Nile-pole

Specification: 7m to 30m

7m to 30m
Add to Wishlist
Availability: In Stock Pre order Out of stock
Description

Product Description

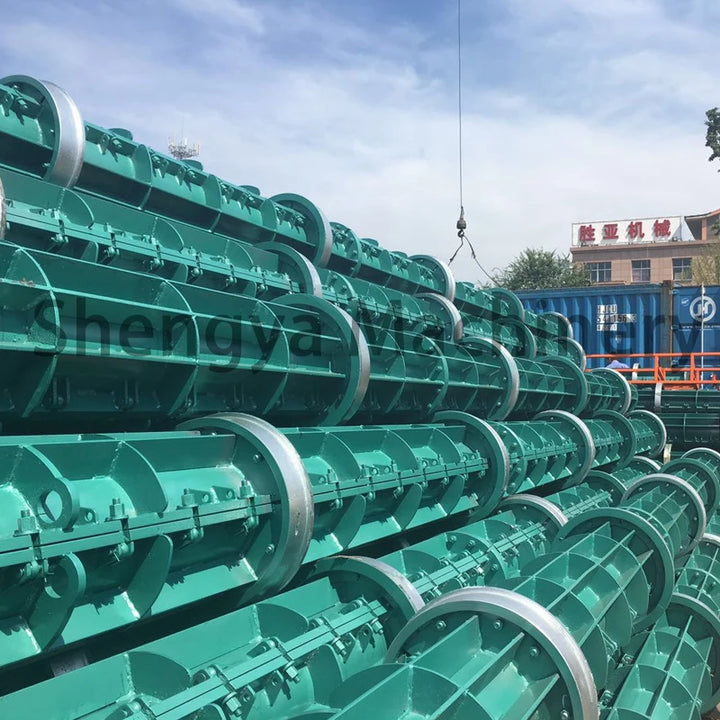

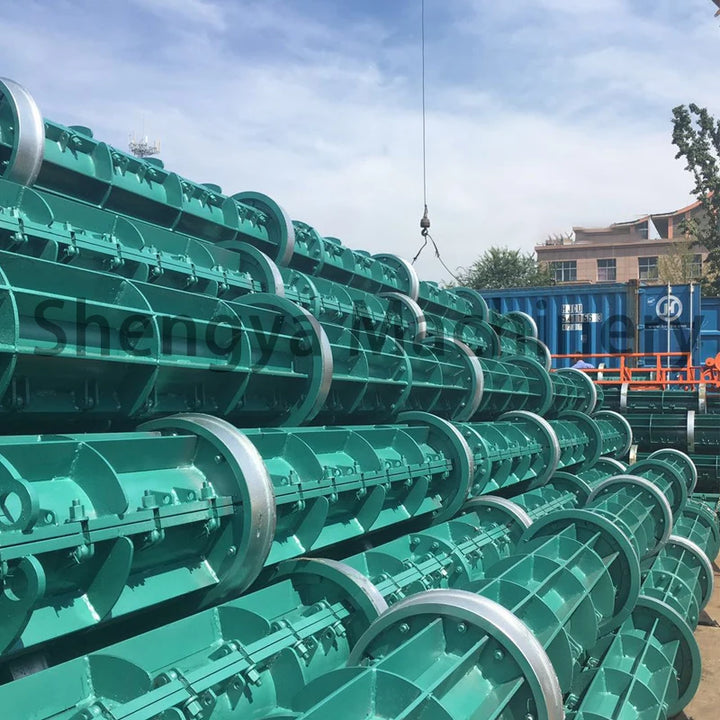

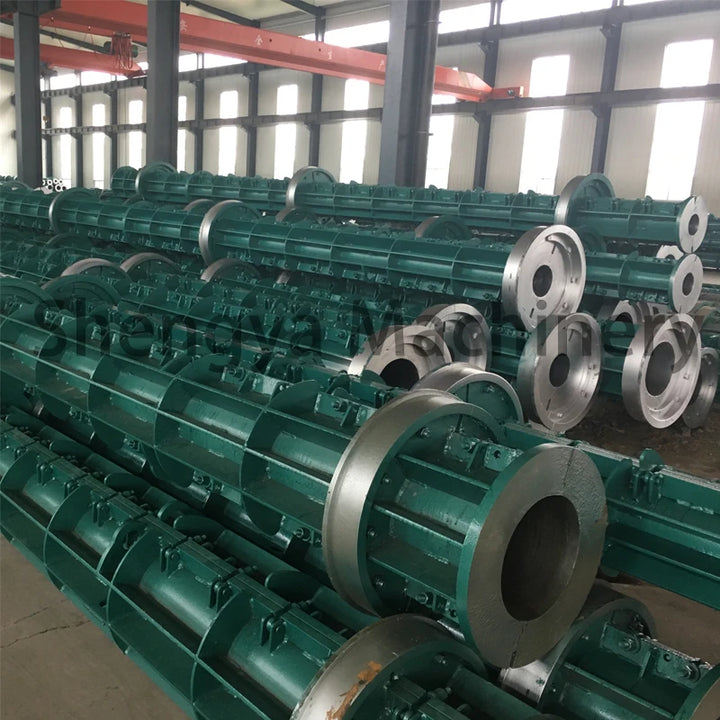

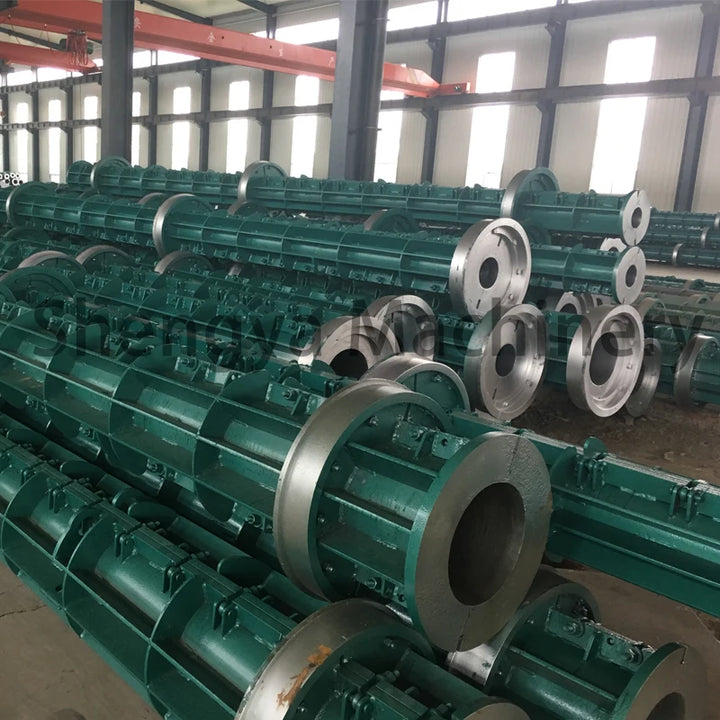

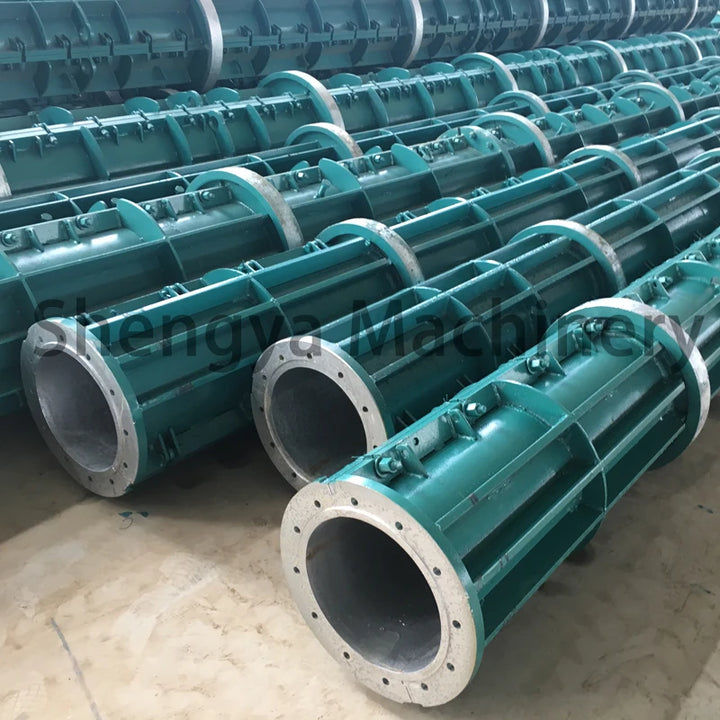

concrete electric pole mould with german technology,cement pole making machine



Features:

1.Broken axle type

2.Infinity variable electrical motor

3.Adjustable speed arrange

4.Stable performance

5.Simple operation

6.Large range of rolling speed

7.Fit for making different type pole and pipe



Technical Parameter



top end inner diameter (mm)

Tread (mm)

Running wheel diameter (mm)

Length (m)

150

2000

600

7-12

170

2000

600

7-12

190

2000

650

7-15

230

2000

650

6-9

300 equal diameter

2000

600

6-9

350 equal diameter

2000

650

6-12

310

2000

650-780

6-15







Overview

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Working Principle

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.

2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.

3. The speed of separation is slow when the viscosity of slurry is high.

4. It is good for centrifugal sedimentation when the slurry density is different in each component.



Electric pole making process:





Rotation time:Approx.12min





Curing time:4 to 6 hours









Features



1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).



2. Crack resistance can increase about 3~5 times.



3. Rigidity increases 1~3 times.



4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).



5. Good durability, can delay the existence and expansion of cracks.



6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.









Packaging & Shipping







electric pole making machine,Street light pole making machine for delivery, rcc fencing pole making machine




Company Information


FAQ

Q:What's the main advantage of our electric pole making machinery ?



A:Formed by pressing and built and conveyed in sections,the mould of prestressed and nonprestressed concrete poles has the advantages of high strengh,good rigidity,long service life and being easy in transportation,quick in assembling and simple in maintainance.







Our Services

Supply, installation, commissioning and the operation of full production line to produce pre-stressed concrete poles Aftersale Services:

Selling is only the beginning of our service,

Our service promise: Reliable-efficient-friendly service



Shengya machinery is your best choice!!

Contact: Allen Mobile:0086-15305399050, skype:allen.wang14

Looking forward to your inquiry.
