Description

The inset slipform paver is based on the advanced PAV-SAVER technology introduced from the American PRO-HOFF company. It has developed offset-paving and inset-paving slipform pavers with paving widths of 3.4~6 meters, 4.25~8 meters, and 4.25~9 meters. It can be widely used in concrete pavement projects such as urban and rural roads, high-grade highways, high-speed railway passenger lines, squares, docks, and water conservancy.
This machine is a fully hydraulic concrete slipform paver with high power and two crawler tracks. It is equipped with automatic driving and automatic leveling control systems. During operation, it can complete concrete paving, scraping, vibrating, tamping, extrusion and other processes at one time, and can complete the processes of middle steel bar insertion and side steel bar insertion. It can be equipped with a super trowel. Through the lateral and longitudinal compound movement of the trowel, the unevenness left on the surface of the concrete pavement can be eliminated, so as to obtain a smoother pavement surface more economically.
Basic Info.
Model NO.
CP6000
Type
Paver
Object
Cement Concrete Pavement
Product Capacity
40~400t/h
Certification
ISO9001: 2000, CE
Condition
New
Paving Width
3400-6000mm
Paving Thickness
0-500mm
Paving Speed
0-10m/Min
Travel Speed
0-2.0km/H
Drive System
Full Hydraulic
Engine Power
160kw
Engine Speed
2300rpm
Specification
4020*7290*2770
Trademark
HAMAC
Origin
China
HS Code
8479102100
Production Capacity
20 Pieces/Month
Product Description


The inset slipform paver is based on the advanced PAV-SAVER technology introduced from the American PRO-HOFF company. It has developed offset-paving and inset-paving slipform pavers with paving widths of 3.4~6 meters, 4.25~8 meters, and 4.25~9 meters. It can be widely used in concrete pavement projects such as urban and rural roads, high-grade highways, high-speed railway passenger lines, squares, docks, and water conservancy.
This machine is a fully hydraulic concrete slipform paver with high power and two crawler tracks. It is equipped with automatic driving and automatic leveling control systems. During operation, it can complete concrete paving, scraping, vibrating, tamping, extrusion and other processes at one time, and can complete the processes of middle steel bar insertion and side steel bar insertion. It can be equipped with a super trowel. Through the lateral and longitudinal compound movement of the trowel, the unevenness left on the surface of the concrete pavement can be eliminated, so as to obtain a smoother pavement surface more economically.






Item | Unit | CP6000 |
Paving Width | mm | 3400-6000 |
Paving thickness | mm | 0-500 |
Paving speed | m/min | 0-10 |
Travel speed | Km/h | 0-2.0 |
Drive system | Full hydraulic | |
Travel system | Track type | |
Engine Model | TAD552VE(Volvo) | |
Engine Power | kW | 160 |
Engine Speed | rpm | 2300 |
Pavement Evenness | mm/3m | 3mm/3m |
Vibration bar | High frequency & hydraulic drive | |
Overall size | mm | 4020*7290*2770 |
Machine Weight | T | 22 |

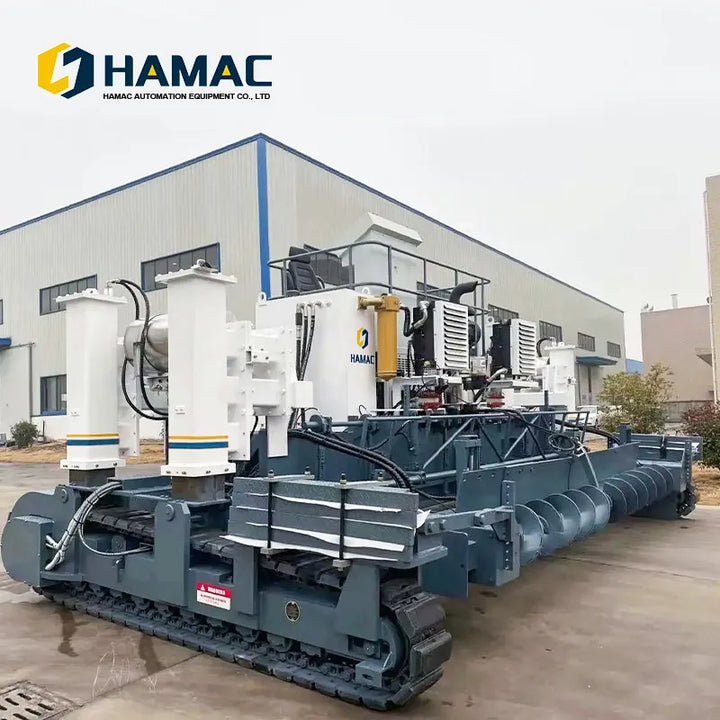

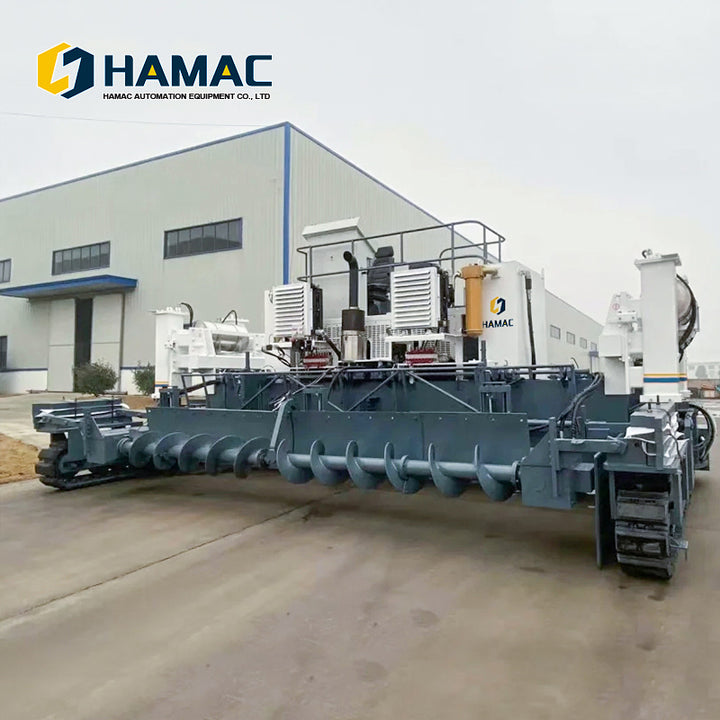

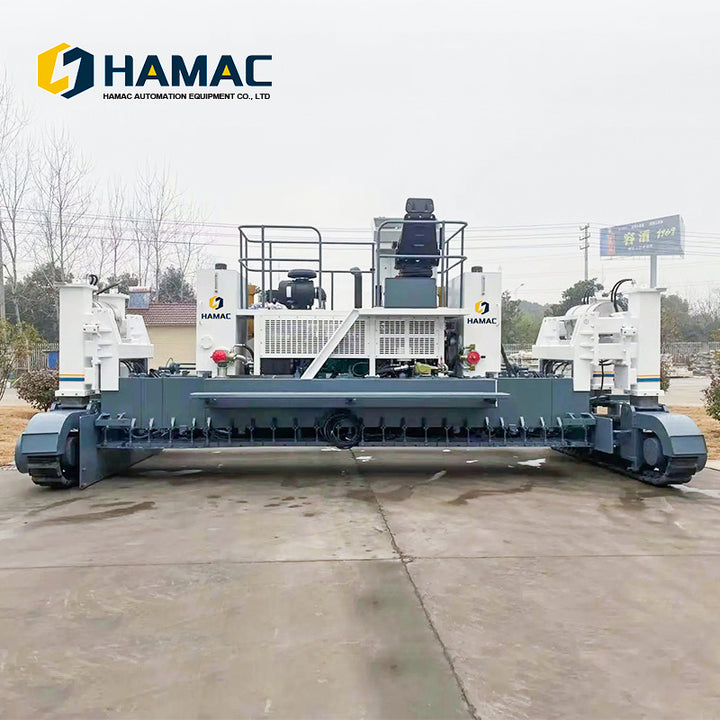

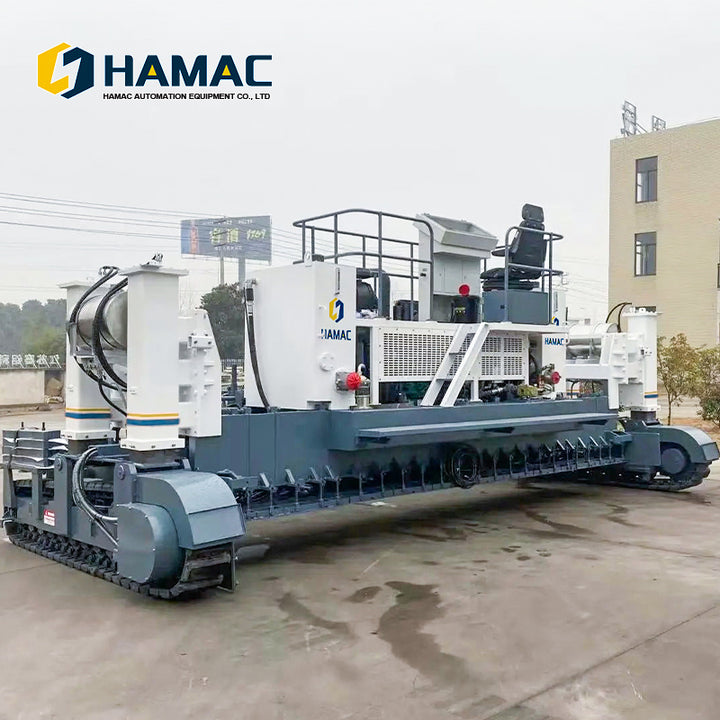

4.5m 5m 6m 7m Cement Concrete Paver Cp6000 Paver Curbing Machine
$9,000.00
