INTRODUCTION

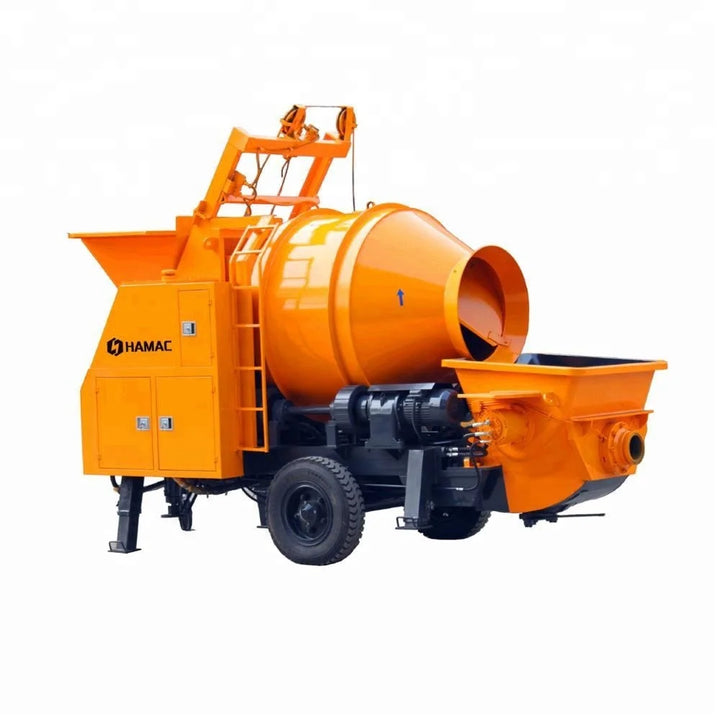

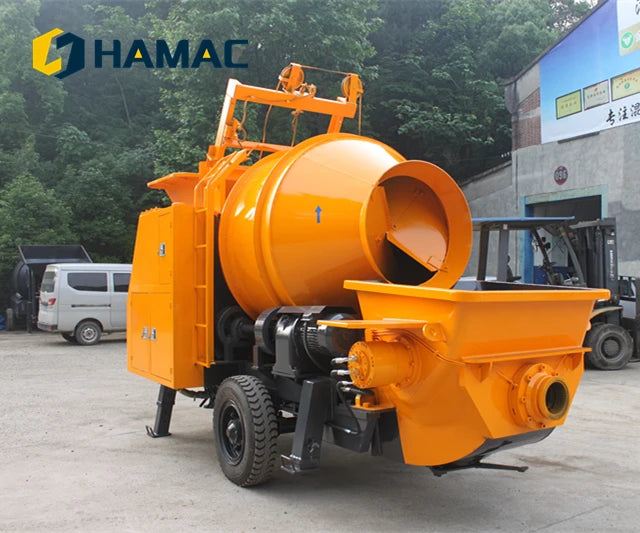

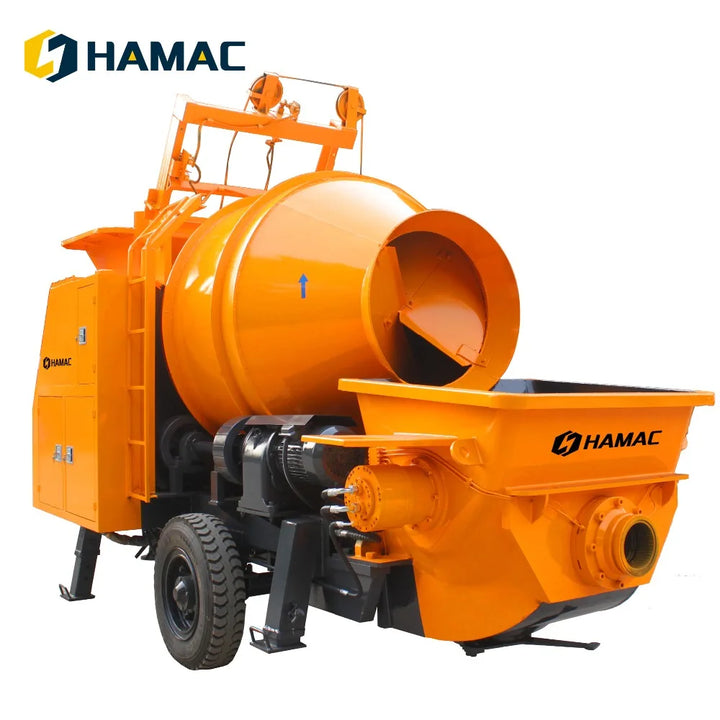

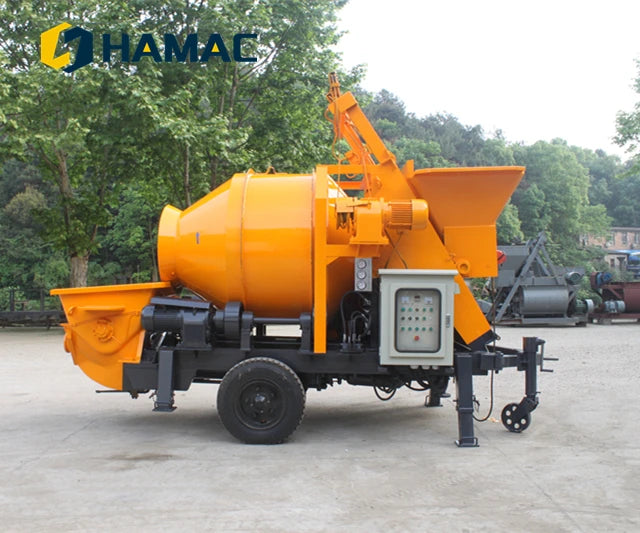

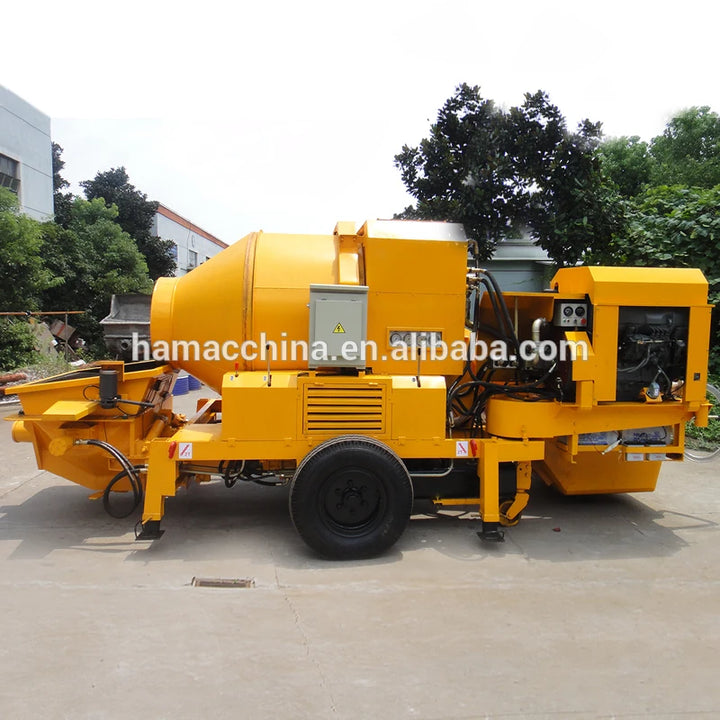

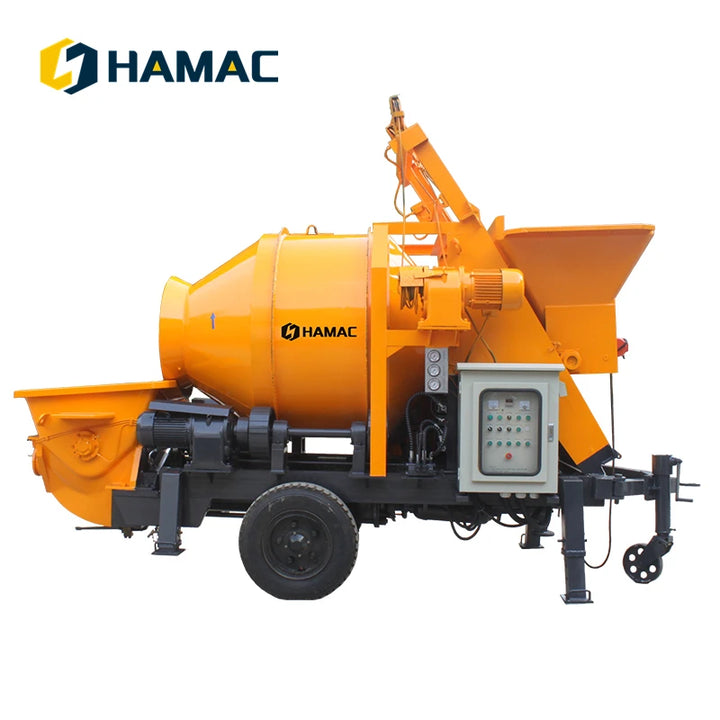

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. DHBT15 Diesel Engine Concrete Mixer with Pump is more convenient for the customers.
PERFORMANCE
1. Diesel engine driven, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. One worker to operate the mixing and pumping, save your labor cost;
4. PLC controlled, work stable, working life longer;
5. Loading, mixing, discharging and pumping, full hydraulic, full automatic;
6. Manual lubrication, separate water-cooled diesel engine;
7. Versatile, concrete pump could work separately.
SPECIFICATION
Parts Name/Parameters |
Parts Brand Name |
Quantity |
Specification |
|
Power |
Diesel Engine |
WEICHAI |
1 pc |
52 KW |
Rated Rotation |
1800r/m |
|||
Mixing System |
Mixer |
Domestic |
1 set |
Drum Mixer,JZM450 |
Power |
By Hydraulic from Engine |
|||
Submersible Pump |
1 pc |
hydraulic water pump |
||
Max. Theoretical Mixing Output |
/ |
/ |
25m³/h |
|
Pumping System |
Mian Oil Pump |
Kawasaki |
1pc |
K3V112 |
Double Gear Pump |
Domestic |
1set |
25&16 |
|
Valves |
Japanese |
4sets |
overflow and directional valves |
|
Main Oil Cylinder |
Domestic |
2pcs |
Φ100×Φ70×800mm |
|
Delivery Cylinder |
Domestic |
2pcs |
Φ200×800mm |
|
S Valve |
Domestic |
1pc |
Φ200mm |
|
Cutting Ring |
alloy |
1pc |
Φ200mm |
|
Glass Wear Plate |
alloy |
1pc |
Φ200mm |
|
Max. Theoretical Pumping Output |
/ |
/ |
40m³/h |
|
Hydraulic System Type |
/ |
/ |
Open |
|
Hopper Capacity × Filling Height |
/ |
/ |
600×1050(L×mm) |
|
Max. Aggregate Size |
/ |
/ |
Pebble:40 Crushed Stone:30 mm |
|
Outlet Pressure |
/ |
/ |
8Mpa |
|
Oil Tank Capacity |
/ |
/ |
200L |
|
Rated Speed |
/ |
/ |
1480Rpm |
|
Slumps |
/ |
/ |
12-23cm |
|
Tyre Size |
/ |
/ |
700R16 |
|
Towing Speed |
/ |
/ |
Max. 8km/h |
|
Overall |
Total Weight |
/ |
/ |
5300kg |
Machine Size(L*W*H) |
/ |
/ |
4960*2100*2600 mm |
|
Delivery height/horizontal distance |
/ |
/ |
70/300m |
|
Packing |
/ |
/ |
1 unit packed in 1 40HQ |
|
