INTRODUCTION

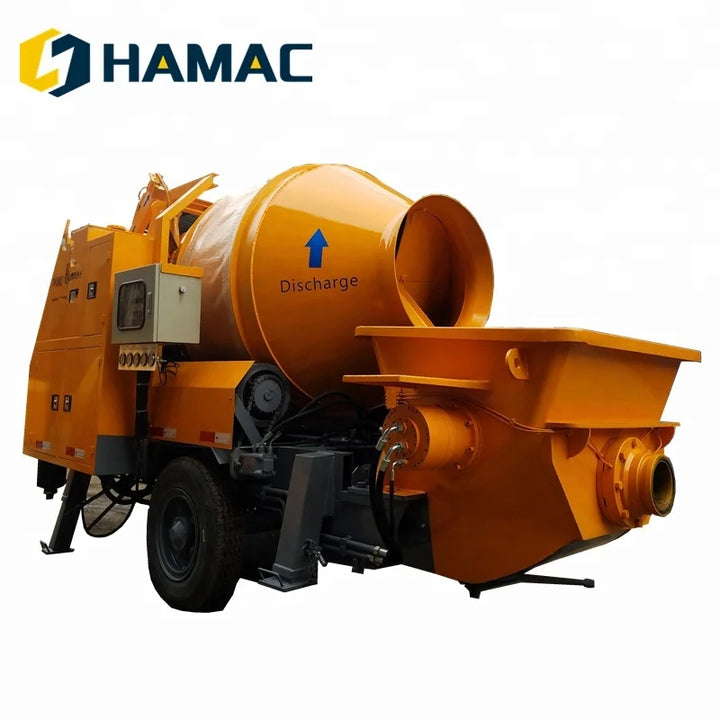

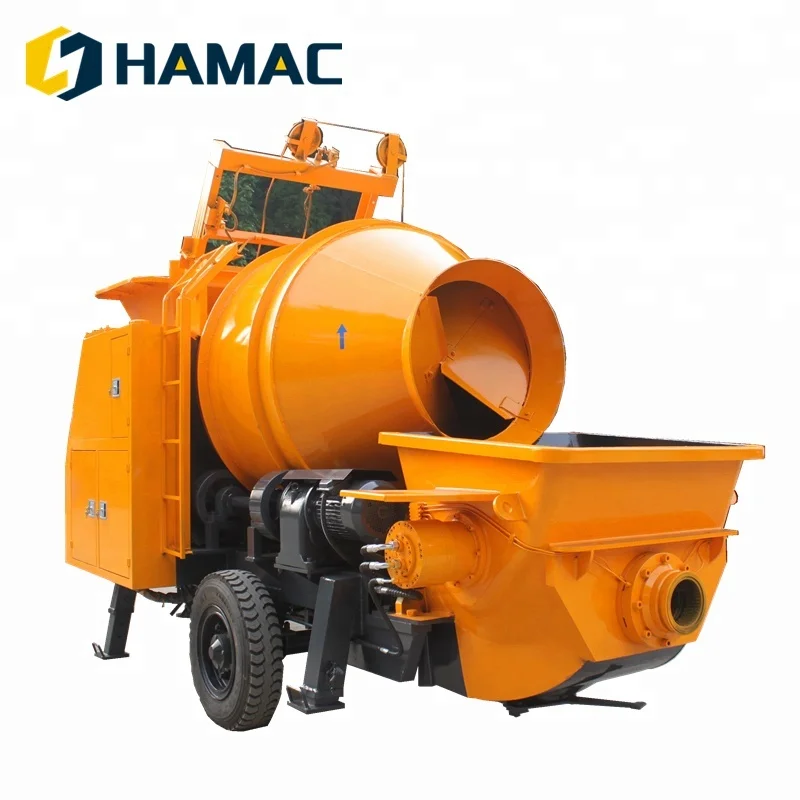

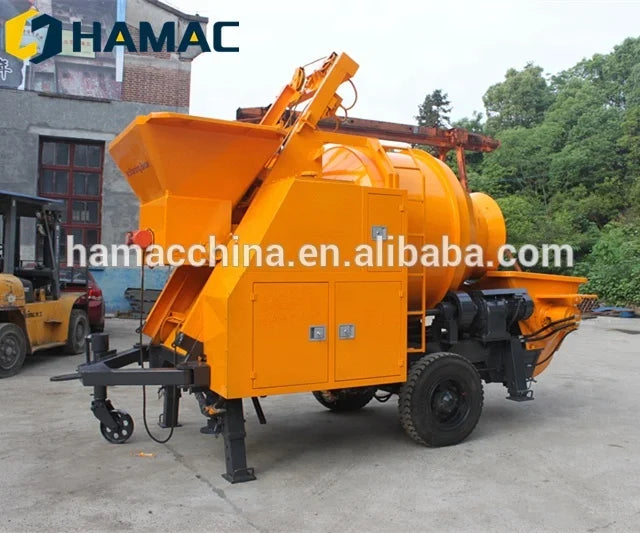

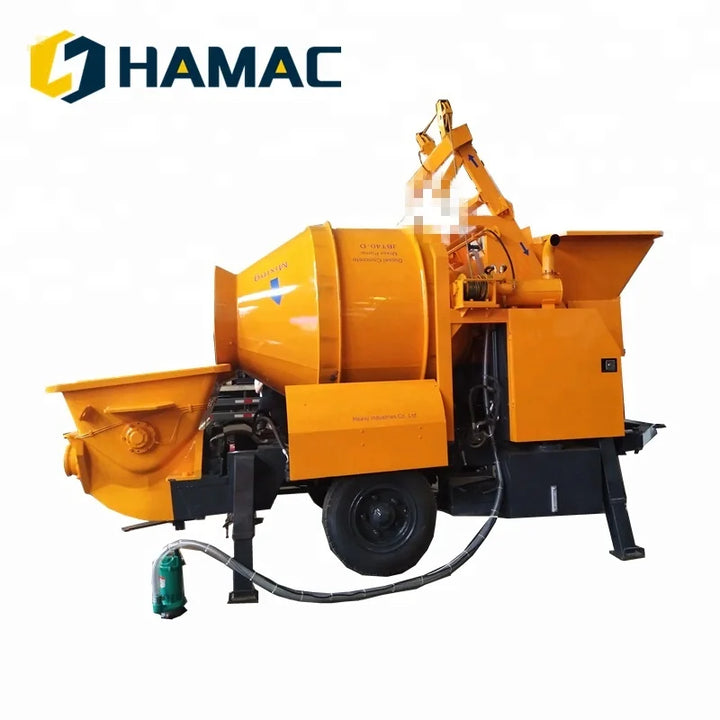

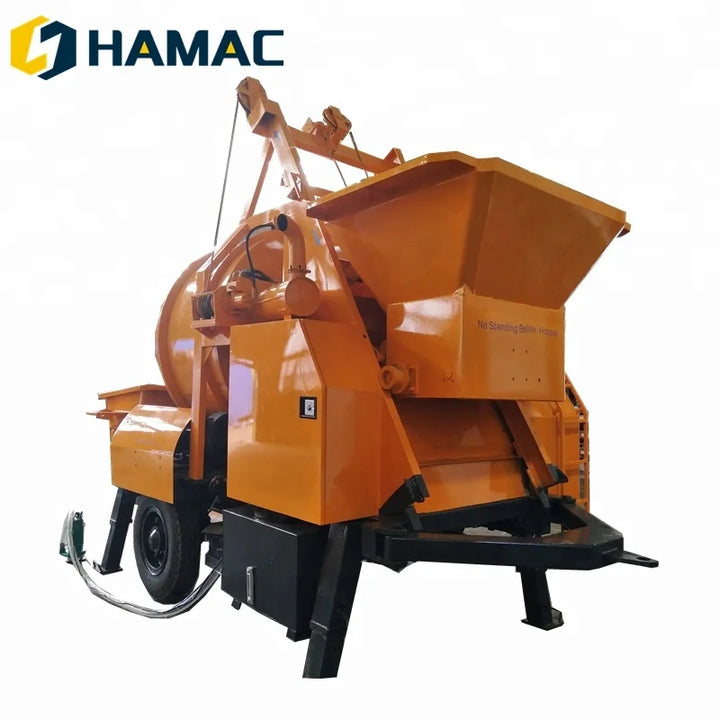

In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pump to deliver the concrete to the buildings. There will be two machines to finish this job. It required more people for the projects. In order to solve this problem and provide our customer with better solution. We researched and developed this concrete mixer with pump. You can finish all the work by the same machinery. It combined concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete. After it is sold to the market, we get a positive response from our customers. Most of them said that it is really a revolution for the electric mixer and pump.
PERFORMANCE
MANUFACTURING PROCESS
SPECIFICATION
| Different parts and information |
Brand /Origin |
Quantity |
Specification |
|
|
Power |
380V |
Local Electric |
1 pc |
Customized accept |
| Electric Component |
/ |
/ |
Siemens/Schneider/Omron |
|
|
Mixing System |
Mixer |
Domestic |
1 set |
JZM450 drum mixer |
| Mixing Motor |
Domestic |
2 pc |
5.5KW |
|
| Hoist Motor |
Nanjing te zhong |
1 pc |
5.5KW |
|
| Submersible Pump |
Shanghai Bali |
1 pc |
0.75KW, pumping water to mixer |
|
| Max. Theoretical Mixing Output |
/ |
/ |
18m³/h |
|
|
Pumping System |
Main Motor |
Siemens/Zhaoyang |
1pc |
37kw |
| Motor Rated Speed |
/ |
/ |
1480Rpm |
|
| Main Oil Pump |
Kawasaki 112 |
1pc |
40 cubic meters per hour |
|
| Double Gear Pump |
Domestic |
1set |
25&16 |
|
| Valves |
Tokyo Keiki |
4sets |
overflow and directional valves |
|
| Main Oil Cylinder |
Domestic |
2pcs |
Φ100*Φ70*1000mm |
|
| Delivery Cylinder |
Domestic |
2pcs |
Φ200*1000mm |
|
| S Valve |
Domestic |
1pc |
Φ200mm |
|
| Cutting Ring |
alloy |
1pc |
Φ200mm |
|
| Glass Wear Plate |
alloy |
1pc |
Φ200mm |
|
| Max. Theoretical Pumping Output |
|
|
40m³/h |
|
| Outlet Pressure |
|
|
8Mpa |
|
| Hydraulic System Type |
|
|
Open |
|
| Motor Rated Voltage |
|
|
380v |
|
| Max. Aggregate Size |
|
|
Pebble:40 Crushed Stone:30 |
|
| Concrete Outlet Diameter |
|
|
Φ180mm |
|
| Hopper Capacity × Filling Height |
|
|
800*1000 (L*mm) |
|
| Machine Size(LxWxH) |
|
|
4960*2100*2500 mm |
|
| Total Weight |
|
|
5300kg |
|
| Tyre Size |
|
|
700R16 |
|
| Towing Speed |
|
|
Max. 8km/h |
|
