INTRODUCTION

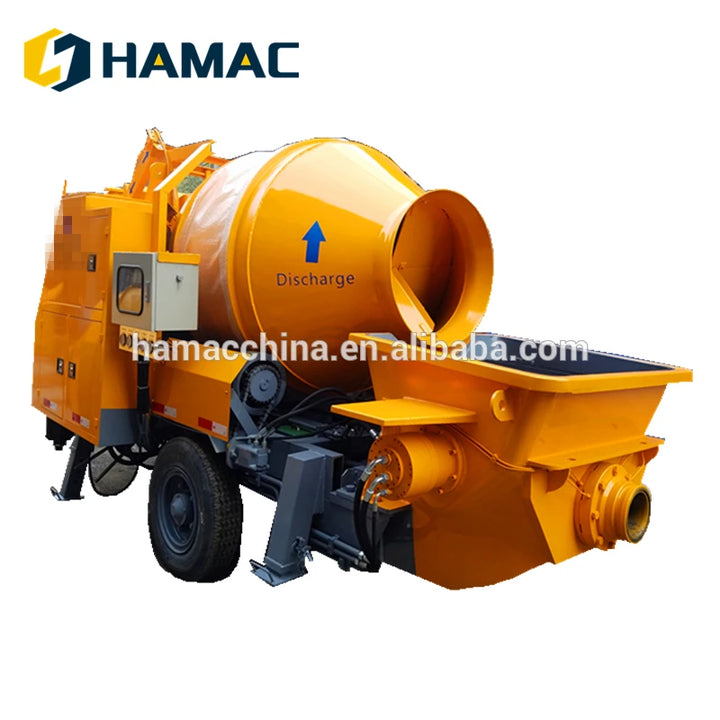

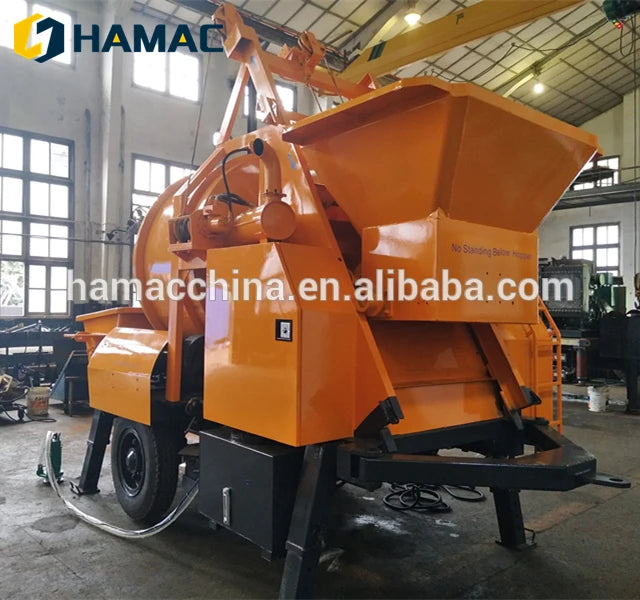

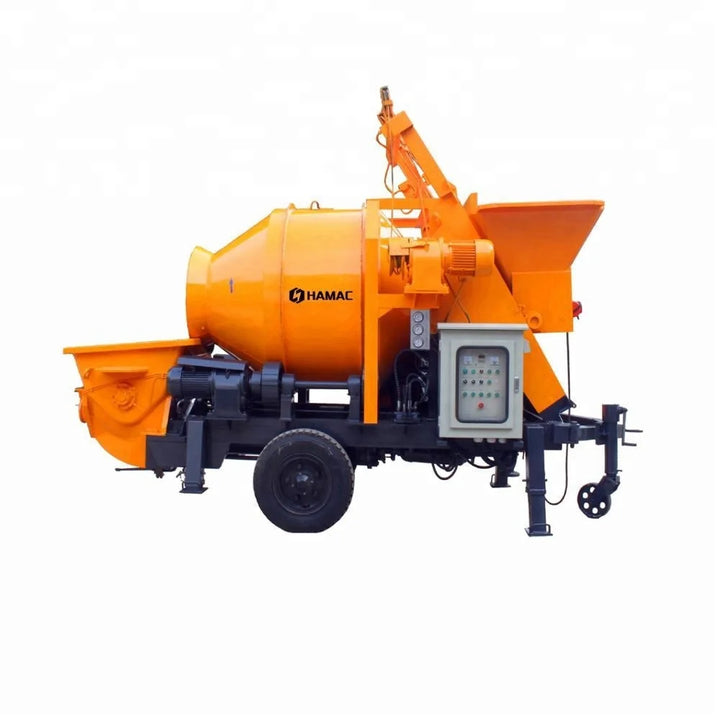

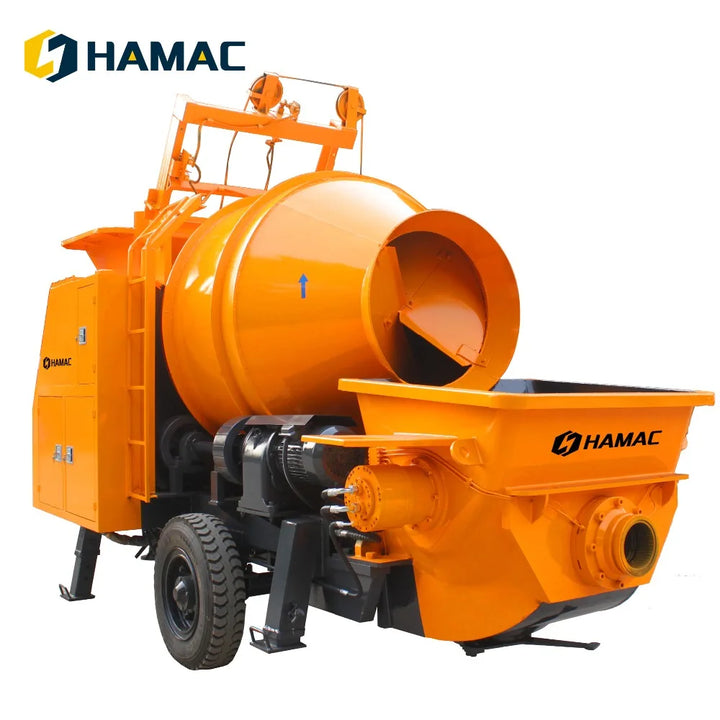

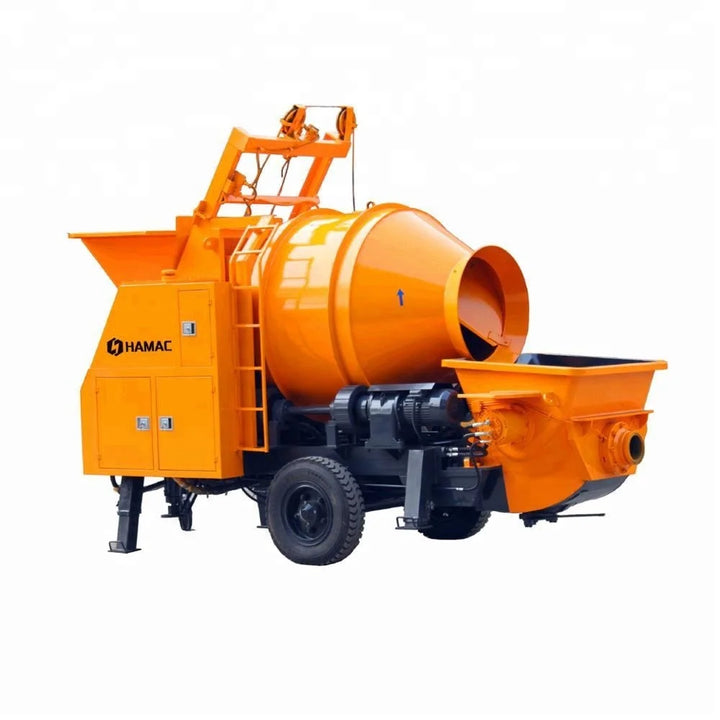

Widely used JBT30 diesel engine concrete mixer with pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
PERFORMANCE
1. Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. One worker to operate the mixing and pumping, save your labor cost;
4. PLC controlled, work stable, working life longer;
5. Loading, mixing, discharging and pumping, full hydraulic, full automatic;
6. Manual lubrication, separate water-cooled diesel engine;
7. Two usages of dragging support, could be used as charging platform;
8. Versatile, concrete mixer and concrete pump could work separately.
MANUFACTURING PROCESS
SPECIFICATION
Items |
Unit |
Parameters |
|
JBT30 |
|||
Whole performance of machine |
Max. theoretical concrete output |
m3/h |
30 |
Feeding volume of concrete mixer |
m3 |
0.56 |
|
Output volume of concrete mixer |
m3 |
0.35 |
|
Max. concrete pumping pressure |
MPa |
10 |
|
Distribution valve type |
|
S Valve |
|
Concrete cylinder diameter×stroke |
mm |
140×1000 |
|
Hopper capacity |
L |
400 |
|
Outlet diameter |
mm |
125 |
|
Power system |
Diesel engine model |
|
WEIFANG |
Rated Power |
kW |
65 |
|
Rotate speed |
r/min |
1800 |
|
Hydraulic system |
Circuit type |
|
Open circuit |
Pumping system pressure |
MPa |
31.5 |
|
Mixing system pressure |
MPa |
6 |
|
Capacity of oil tank |
L |
350 |
|
Maximum deliver height/horizontal distance |
m |
60/300 |
|
|
Other parameters
|
Max. aggregate diameter delivered |
mm |
20mm |
Inside diameter of delivering pipe |
mm |
Diameter 100 |
|
Dimensions:length×width×height |
mm |
6000x2300x3150 |
|
Total weight |
kg |
4500 |
|

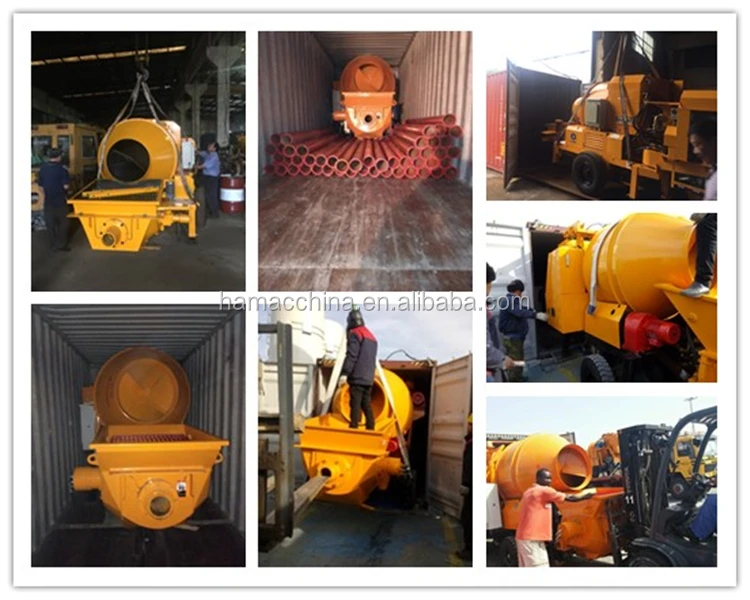

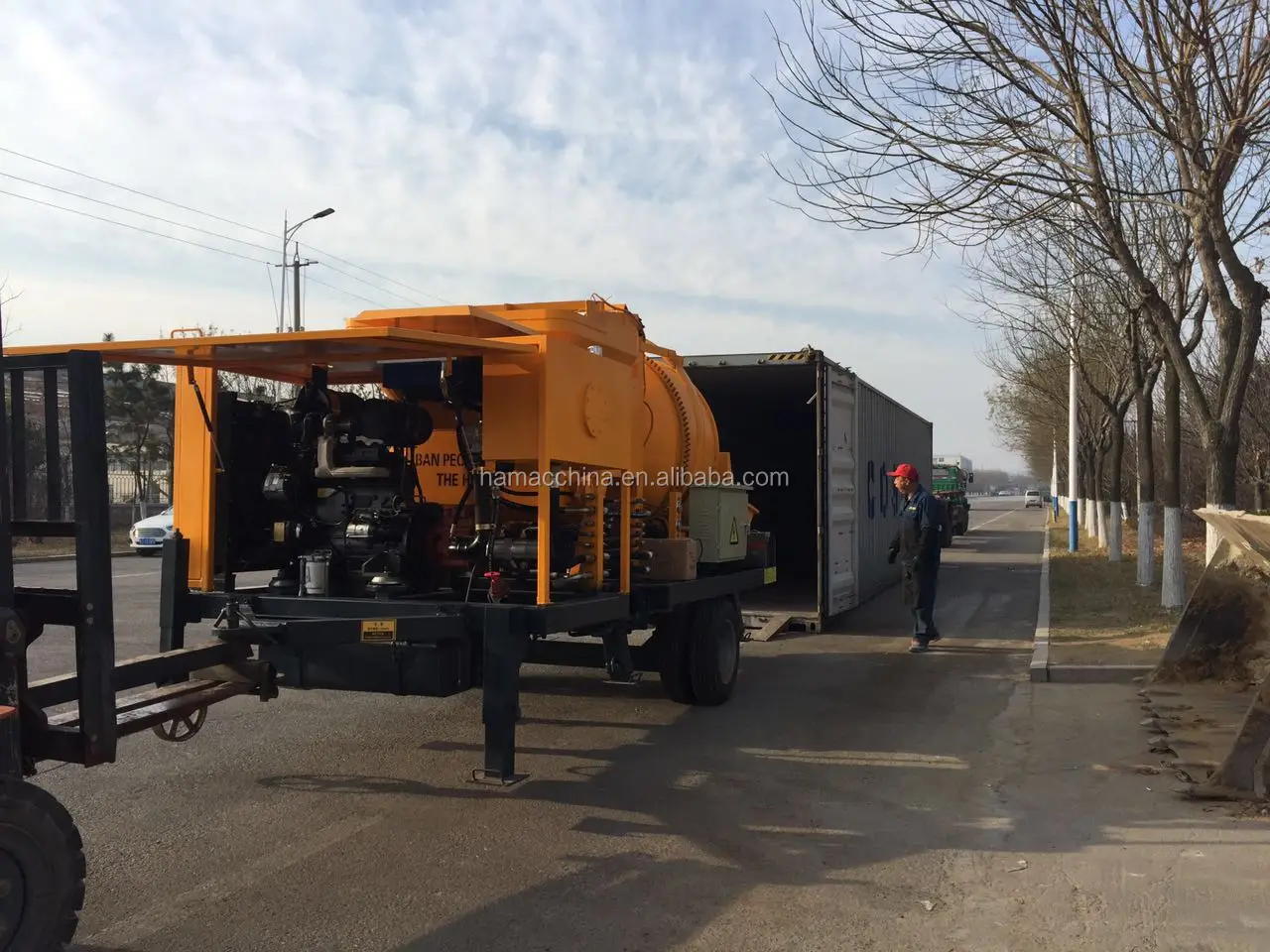

GOODS DELIVERY

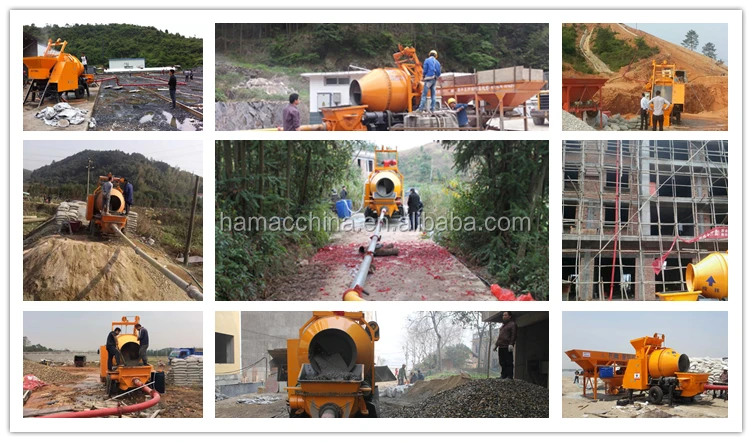

SUCCESSFUL CASES
CUSTOMER VISIT US
ABOUT HAMAC
HAMAC follows its strict Quality Control system obediently which guarantees the premium quality of our products. Oriented by the requirements from our clients, we are able to customize the products to fit the demand. With over decade experience on international business trade on machinery of our staff, we are able to provide the solutions to all your problems regarding to the international trade.
PRODUCTION BASES
We have different products bases in different cities in China. Our main products are concrete batching plant, different concrete mixers, concrete pumps, concrete placing boom, truck mounted concrete boom pump etc. In addition to this, we also provide clients with complete solutions which cooperates with our sister companies.
CONTACT US
You can contact our head-office directly, also you can contact the oversea-offices which is near you. Of course, free live-chat is available and you can get help immediately.
Q : Are you a factory or trading company?
A: We are a company which include trade and manufacture. We have our own factory which has been manufacturing concrete machineries along with spare parts for 20 years offline. These years, we begin to promote overseas market.
Q: How about the quality control of your productions?
A: All of our products passed ISO9001:2000, some of them got CE Certificate. We have a very strict quality control system, all of our suppliers are selected strictly and carefully. We will take strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: HAMAC only present true information to all of our clients, HAMAC only provide our clients with high quality machines. Most of our clients are regular clients, it is a proof of our quality. And the new buyers would like to repeat orders from us since we are not only sell goods but also services.
Q: How do you think the relationship between quality and price? Relationship between buyer and seller?
A: If you care about the quality, please respect its price. If you only care about the price, do not expect a good quality. Market price is well-known, the seller will not quote a higher and unreasonable price to push away the buyer.
One deal, to make one new friend. Reputation is the most important thing. HAMAC will not destroy the reputation because of an order. We are pursuing long-time cooperation.
Q: Can we go to your factory have a look?
A: You are warmly welcomed to visit us.
